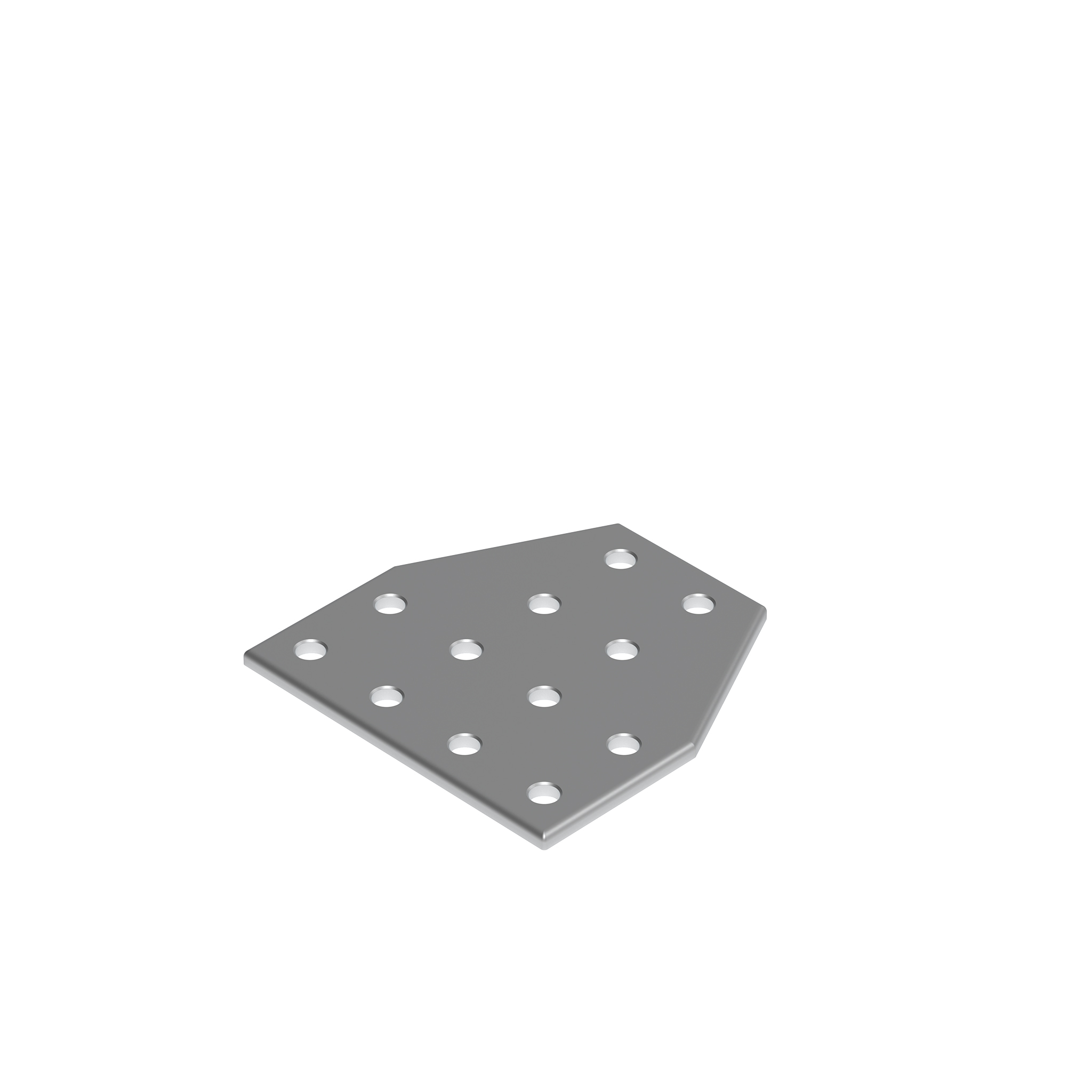

Connection Plate AL T 12 Hole, 2 Slots Version

Product information "Connection Plate AL T 12 Hole, 2 Slots Version"

Delivery Countries:
Worldwide

Description:

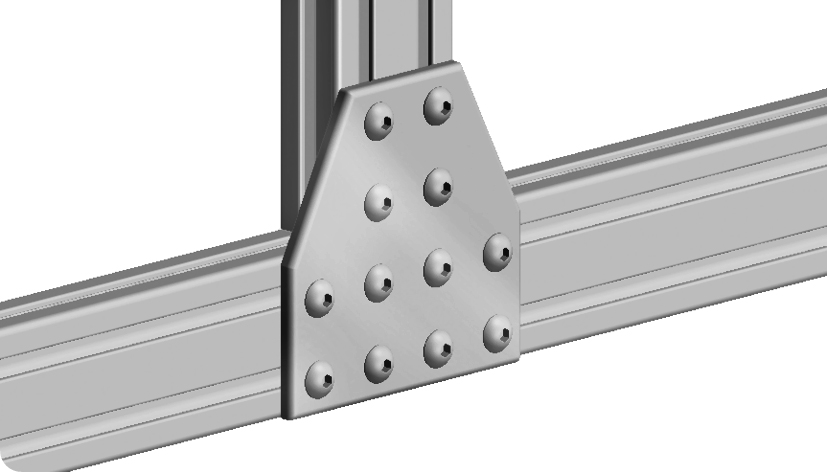

To tee connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Zolltarifnummer:
76169990990

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	84.0

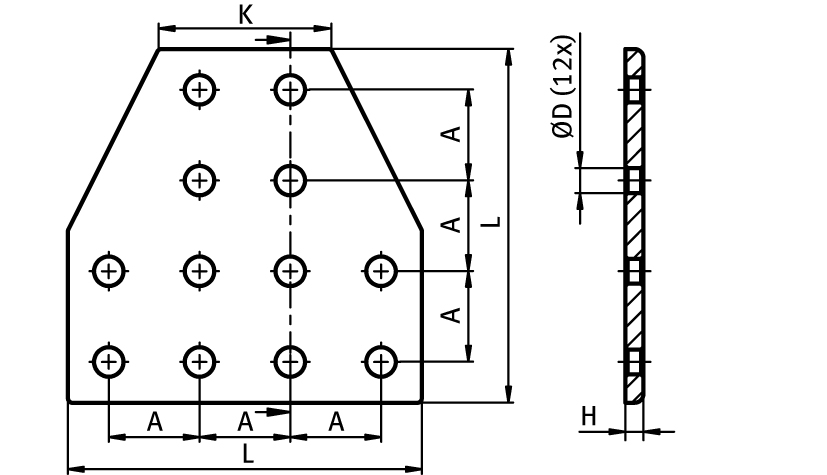

Variants

Product ID	Version	A (mm)	ØD (mm)	H (mm)	L (mm)	K (mm)
093VT102102D	102 / 102 - 4" / 4"	25.4 (1")	7.0	4.0	98.0 (3.858")	48.0 (1.89")
093VT120120D	120 / 120	30.0	7.0	5.0	117.0	57.0
093VT152152D	152 / 152 - 5.98" / 5.98"	38.1 (1.5")	9.0	6.0	148.0 (5.8")	72.0 (2.8")
093VT160160D	160 / 160	40.0	9.0	6.0	156.0	76.0
093VT180180D	180 / 180	45.0	9.0	6.0	176.0	86.0
093VT8080D	80 / 80	20.0	5.5	4.0	78.0	38.0
