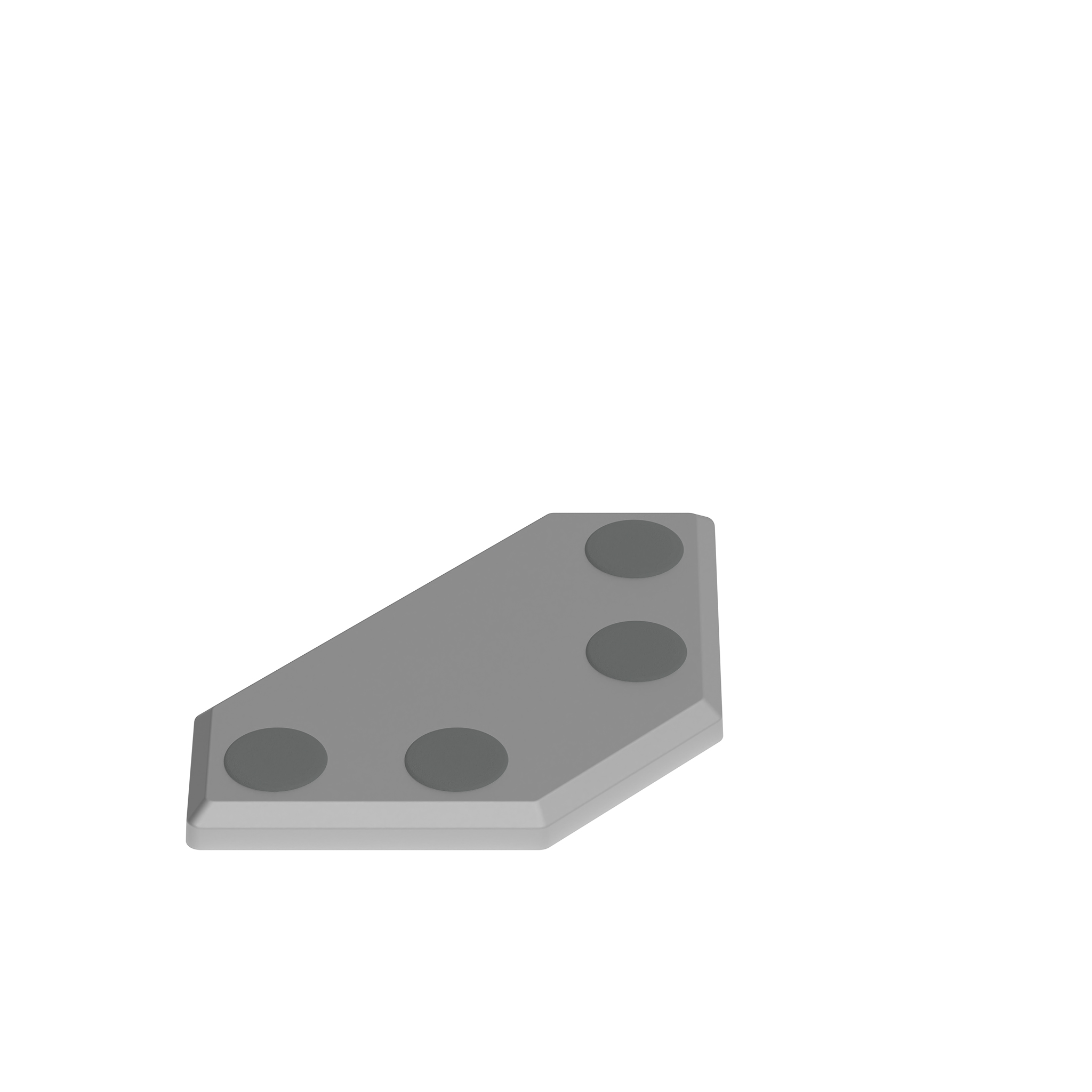

Connection Plate I120 M (Set)

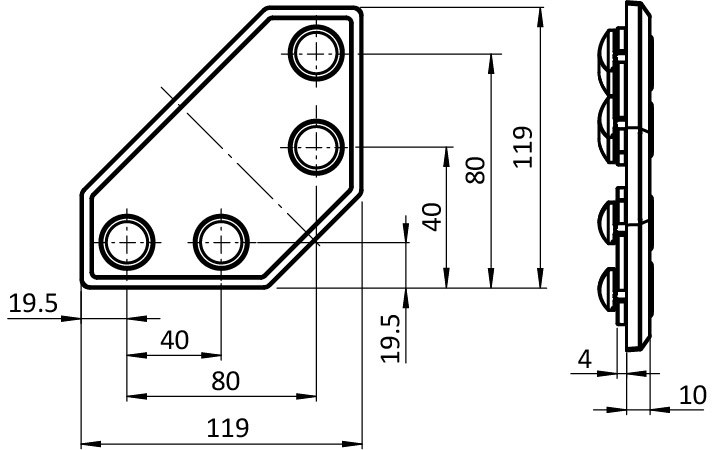

Connection Plate I120 M (Set) – technical drawing

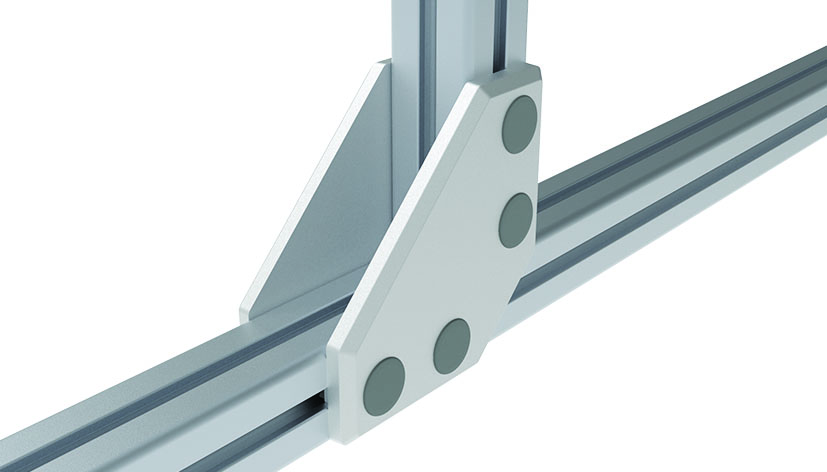

Connection Plate I120 M (Set) – application example

€0.00

Profile

I

Slot N (mm)

8

Part #: 093VM120120LN08

Pack Quantity: 10 pieces

Description:
To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover caps

Material:
Connection plate: Aluminum die-cast
Cover caps: Plastic PA, glass fiber reinforced
Magnet rhombus screws: Steel
Countersunk nuts: Steel

Surface:
Connection plate: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Color:
Connection plate: Alu color
Cover Caps: Gray ≈ RAL 7042

Set:
1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts
4 cover caps

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide
