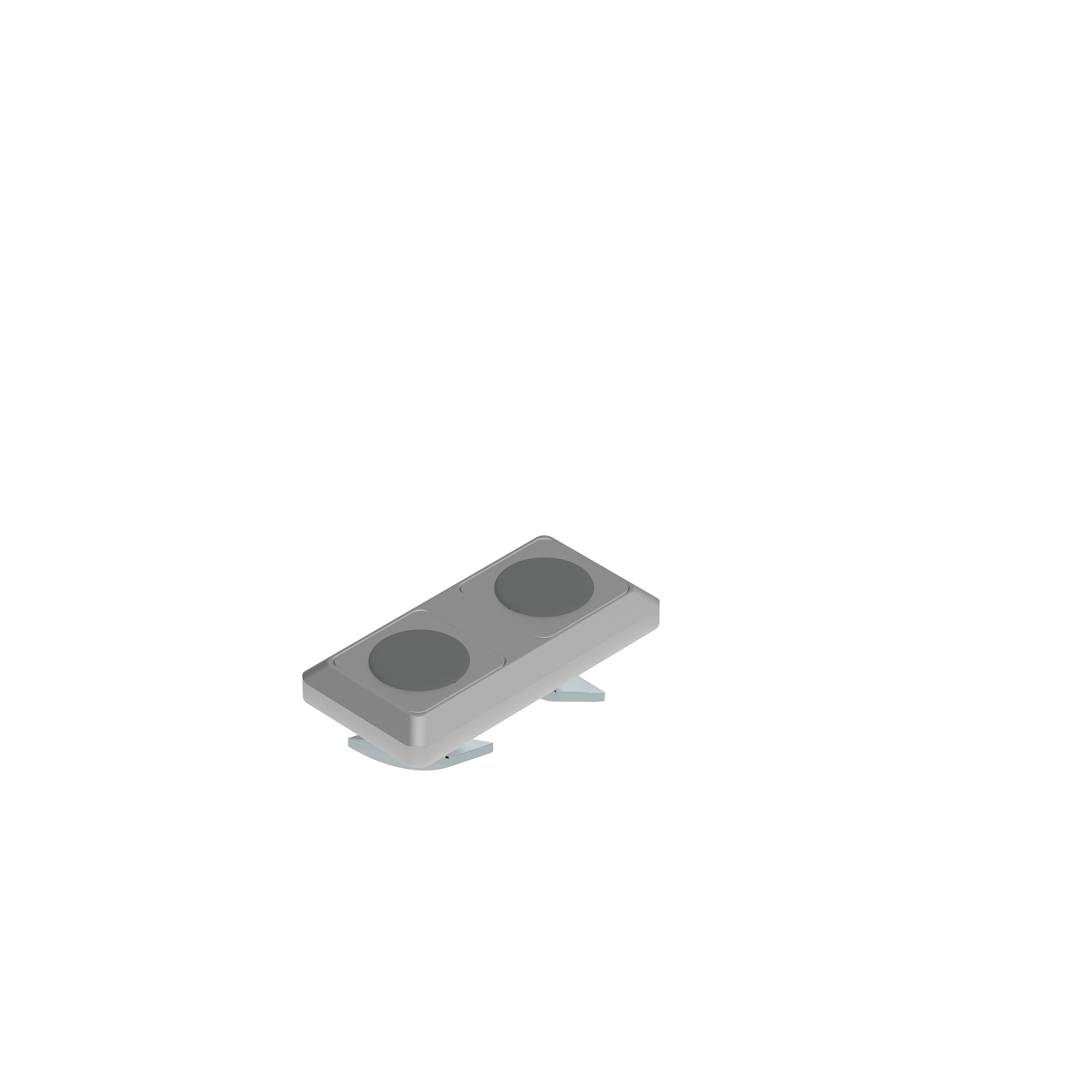

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)

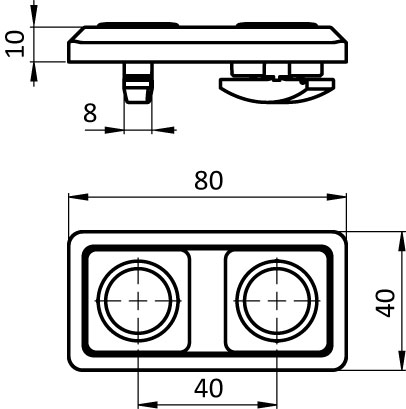

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set) – technical drawing

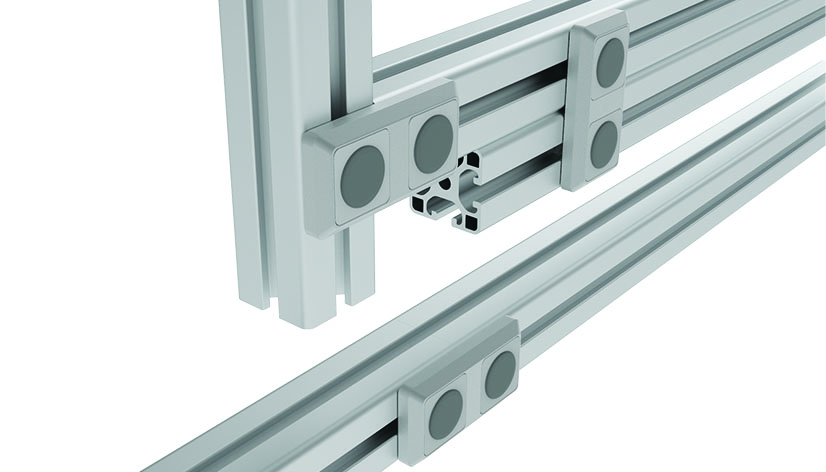

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set) – application example

€0.00

Profile

I

Slot N (mm)

8

Part #: 093VM4080LN08

Pack Quantity: 10 pieces

Description:
To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover caps

Material:
Connection plate: Aluminum die-cast
Cover caps: Plastic PA, glass fiber reinforced
Magnet rhombus screws: Steel
Countersunk nuts: Steel

Surface:
Connection plate: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Color:
Connection plate: Alu color
Cover Caps: Gray ≈ RAL 7042

Set:
1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts
2 cover caps

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide
