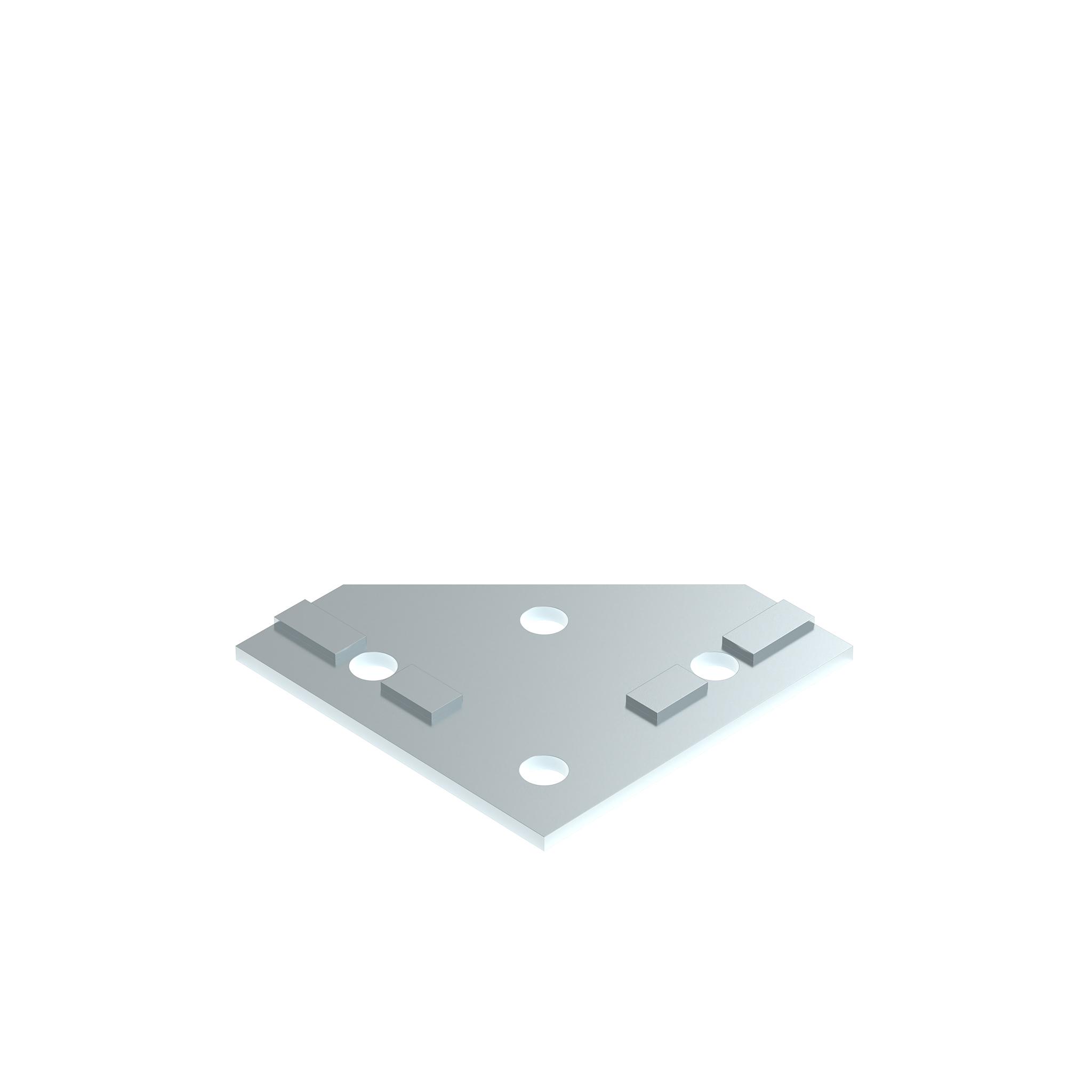

Connection Plate ST 100

Product information "Connection Plate ST 100"

Delivery Countries:
Worldwide

Description:

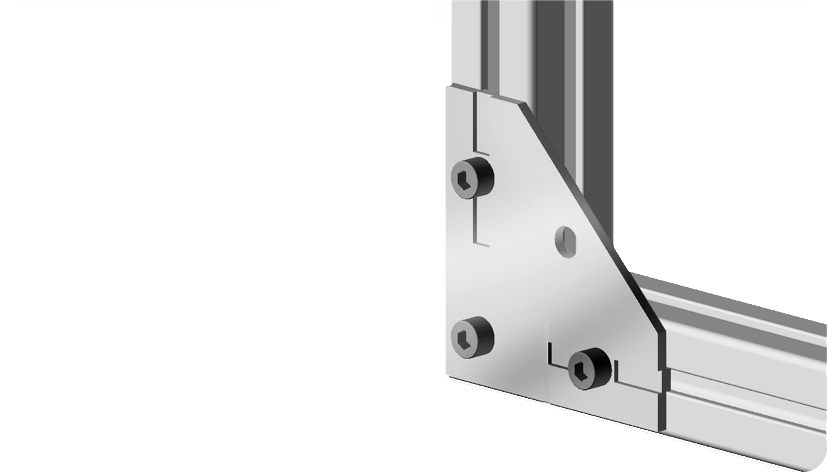

To connect two aluminum profiles

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated
Pack Quantity: 10 pieces
Model: Steel, zinc plated
Weight (g): 221.0
ERP Number: 100911

Variants

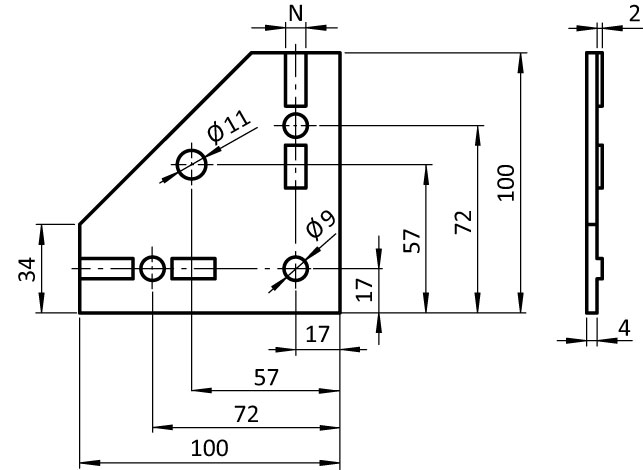

Part # Slot N (mm) for Screw CAD
8 M8
10 M8

CAD Downloads

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73269098900
Customs Tariff Number Export
73269098

Certificates

Tags

Profile Type Profile Type B, Profile Type I
Slot Size Slot 10
Profile Form T-slot Profiles
