Connection Plate ST Rectangular 2 Hole, 1 Slot Version

Product information "Connection Plate ST Rectangular 2 Hole, 1 Slot Version"

Color:
Black, alu color, -

Delivery Countries:
Worldwide

Description:

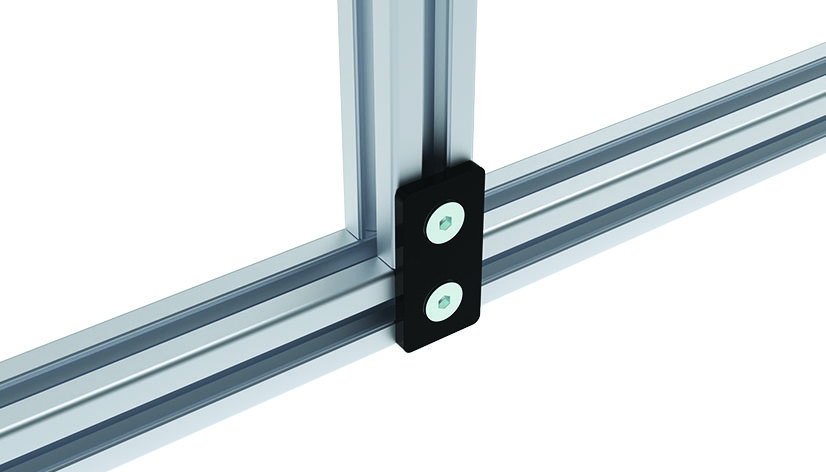

To connect two aluminum profiles

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Powder coated / zinc plated

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	73269098
ERP Number:	100913
Fastening:	Countersunk screws
Model:	Steel, profile 20 and up
Pack Quantity:	10 pieces
Weight (g):	116.0
Zolltarifnummer:	73269098900

Variants

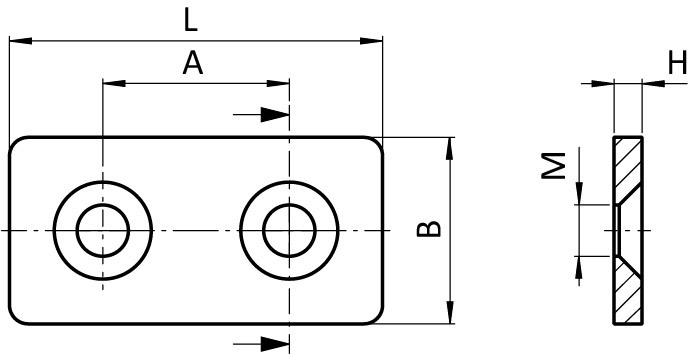

Product ID	Surface	Fig.	Color	H (mm)	L (mm)	A (mm)	for Screw	B (mm)
093V2040A	Powder coated	②	Alu color	3.0	40.0	20.0	2x M5	20.0
093V2040S	Powder coated	①	Black	3.0	40.0	20.0	2x M5	20.0
093V3060A	Powder coated	②	Alu color	3.0	60.0	30.0	2x M6	30.0
093V3060S	Powder coated	①	Black	3.0	60.0	30.0	2x M6	30.0
093V3060V	Zinc plated	③		3.0	60.0	30.0	2x M6	30.0
093V4080A	Powder coated	②	Alu color	5.0	80.0	40.0	2x M8	40.0
093V4080S	Powder coated	①	Black	5.0	80.0	40.0	2x M8	40.0
093V4080V	Zinc plated	③		5.0	80.0	40.0	2x M8	40.0
093V4590A	Powder coated	②	Alu color	5.0	90.0	45.0	2x M8	45.0
093V4590S	Powder coated	①	Black	5.0	90.0	45.0	2x M8	45.0
093V4590V	Zinc plated	③		5.0	90.0	45.0	2x M8	45.0
