Connection Plate ST Rectangular 3 Hole, 1 Slot Version

Product information "Connection Plate ST Rectangular 3 Hole, 1 Slot Version"

Color:
Black, aluminum color

Delivery Countries:
Worldwide

Description:

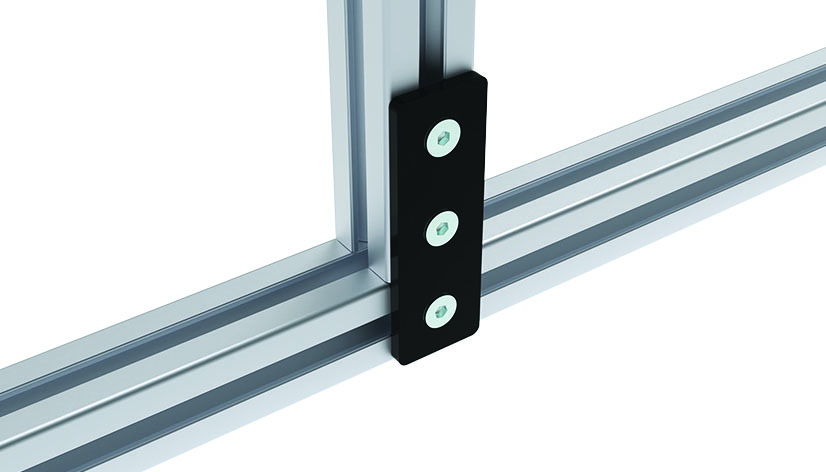

To connect two aluminum profiles

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	73269098
ERP Number:	147290
Model:	Steel, profile 20 and up
Pack Quantity:	10 pieces
Weight (g):	172.4
Zolltarifnummer:	73269098900

Variants

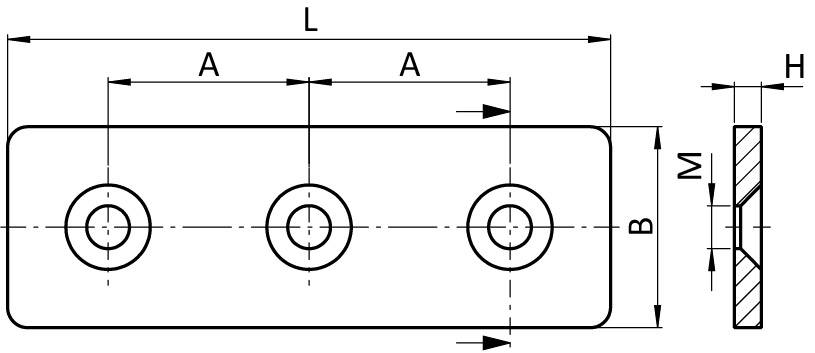

Product ID	Fig.	Color	Surface	for Screw	A (mm)	L (mm)	H (mm)	B (mm)
093V3090A	②	Alu color	Powder coated	3x M6	2x 30.0	90.0	4.0	30.0
093V3090S	①	Black	Powder coated	3x M6	2x 30.0	90.0	4.0	30.0
093V40120A	②	Alu color	Powder coated	3x M8	2x 40.0	120.0	5.0	40.0
093V40120S	①	Black	Powder coated	3x M8	2x 40.0	120.0	5.0	40.0
