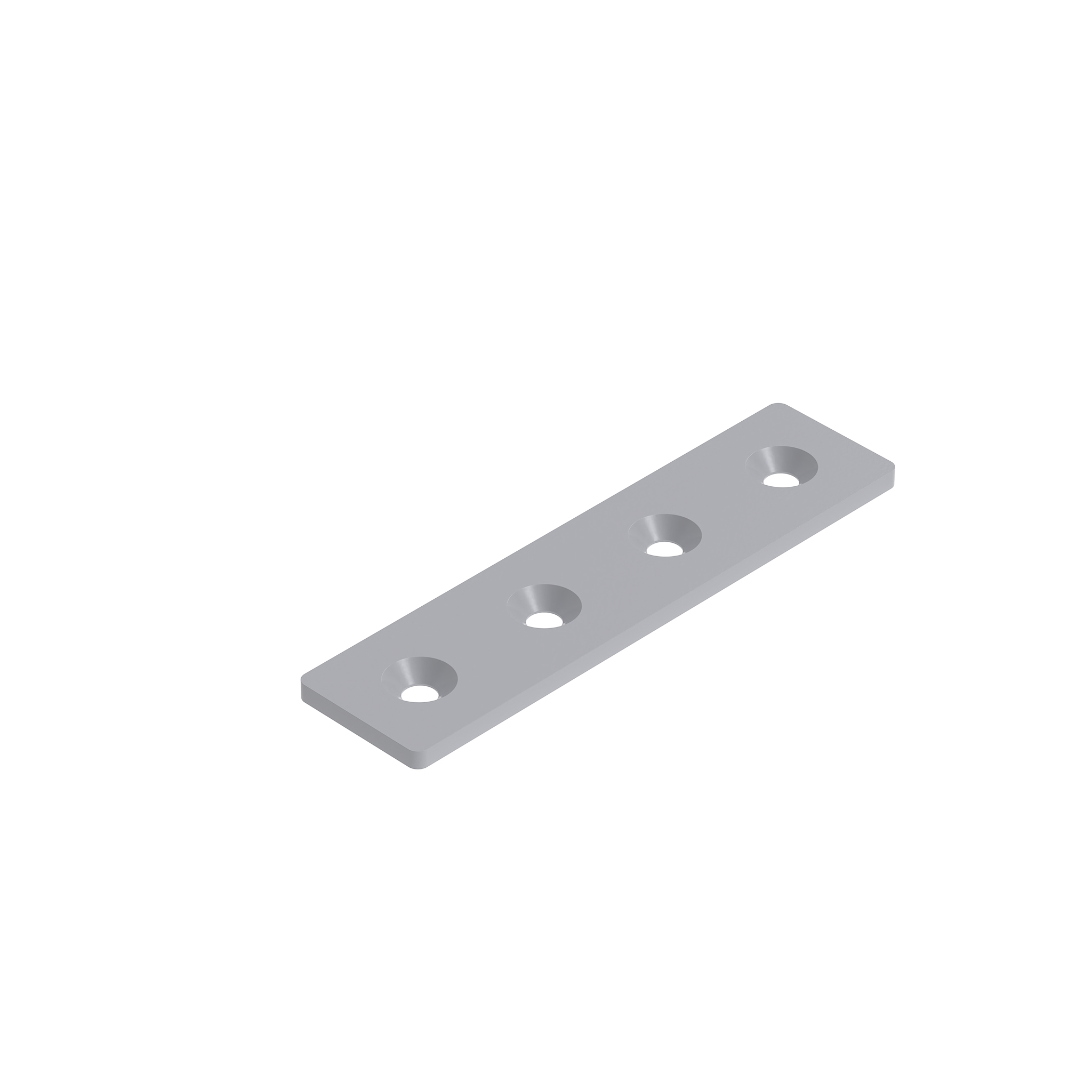

Connection Plate ST Rectangular 4 Hole, 1 Slot Version

Product information "Connection Plate ST Rectangular 4 Hole, 1 Slot Version"

Color:
Black, aluminum color

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel, profile 20 and up
Pack Quantity: 10 pieces
Weight (g): 221.9

Variants

Product ID B (mm) H (mm) for Screw A (mm) L (mm) Surface Fig. Color
093V40160A 40.0 5.0 4x M5 3x 40.0 160.0 Powder coated Alu color
093V40160S 40.0 5.0 4x M5 3x 40.0 160.0 Powder coated Black
