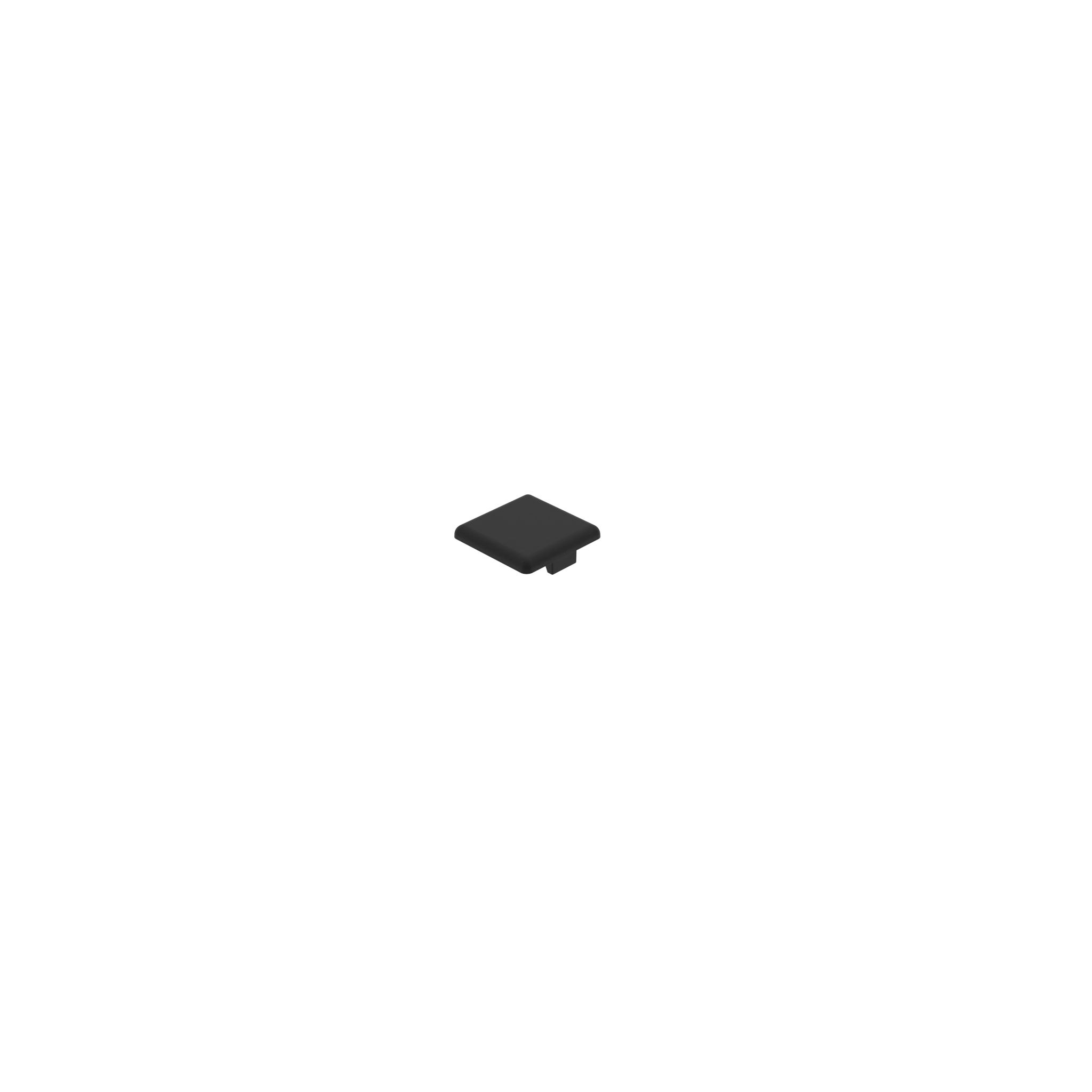

Cover Cap for 20 mm Modular Dimension

Product information "Cover Cap for 20 mm Modular Dimension"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:
To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360192
(ECLASS 12.0):	23360192
(ECLASS 13.0):	23360192
Customs Tariff Number Export:	39269097
ERP Number:	125707
Model:	20 mm modular dimension
Pack Quantity:	100 pieces
Weight (g):	1.0
Zolltarifnummer:	39269097900

Variants

Product ID	Color	R (mm)	Feature	Dimensions A x B (mm)	T (mm)	Profile	Slot N (mm)	ØD (mm)
091042	Black	2.5	1 cross	20 x 20	4.0	B	6	5.4 (5.5)
091042S03	Gray ≈ RAL 7004	2.5	1 cross	20 x 20	4.0	B	6	5.4 (5.5)
091043	Black	2.5	1 cross	20 x 20	4.0	I	5	4.5 (4.3)
091050	Black	2.5	2 crosses	20 x 40	4.0	I	5	4.5 (4.3)
091125	Black	2.0	2 crosses	10 x 20	3.0	I	5	3.4 (3.3)
091125S01	Gray ≈ RAL 7042	2.0	2 crosses	10 x 20	3.0	I	5	3.4 (3.3)
091180	Black	2.0	New version, 1 pin	20 x 20	2.5	I	5	4.5 (4.3)
091180S02	Gray ≈ RAL 7042	2.0	New version, 1 pin	20 x 20	2.5	I	5	4.5 (4.3)
091181	Black	2.0	New version, 2 crosses	20 x 40	2.5	I	5	4.5 (4.3)
091181S02	Gray ≈ RAL 7042	2.0	New version, 2 crosses	20 x 40	2.5	I	5	4.5 (4.3)
091182	Black	2.0	4 crosses	40 x 40	2.5	I	5	4.5 (4.3)
091182S01	Gray ≈ RAL 7042	2.0	4 crosses	40 x 40	2.5	I	5	4.5 (4.3)
091183	Black	2.0	3 crosses	20 x 60	2.5	I	5	4.5 (4.3)
091183S01	Gray ≈ RAL 7042	2.0	3 crosses	20 x 60	2.5	I	5	4.5 (4.3)
091236	Black	2.0	2 pins	10 x 40	2.5	I	5	3.4 (3.3)
091236S01	Gray ≈ RAL 7042	2.0	2 pins	10 x 40	2.5	I	5	3.4 (3.3)
091237	Black	1.8	1 cross	20 x 20 R20 - 90°	2.5	I	5	4.45 (4.3)
091332	Black	1.5	New version, 1 cross	20 x 20	2.5	B	6	5.7 (5.5)
091332S02	Black	1.5	1 cross, ESD electrostatical discharging	20 x 20	2.5	B	6	5.7
091332S03	Gray ≈ RAL 7004	1.5	1 cross	20 x 20	2.5	B	6	5.7
091402S01	Gray ≈ RAL 7042	2.0	2 pins	10 x 20	2.5 / 8.5	I	5	3.4
