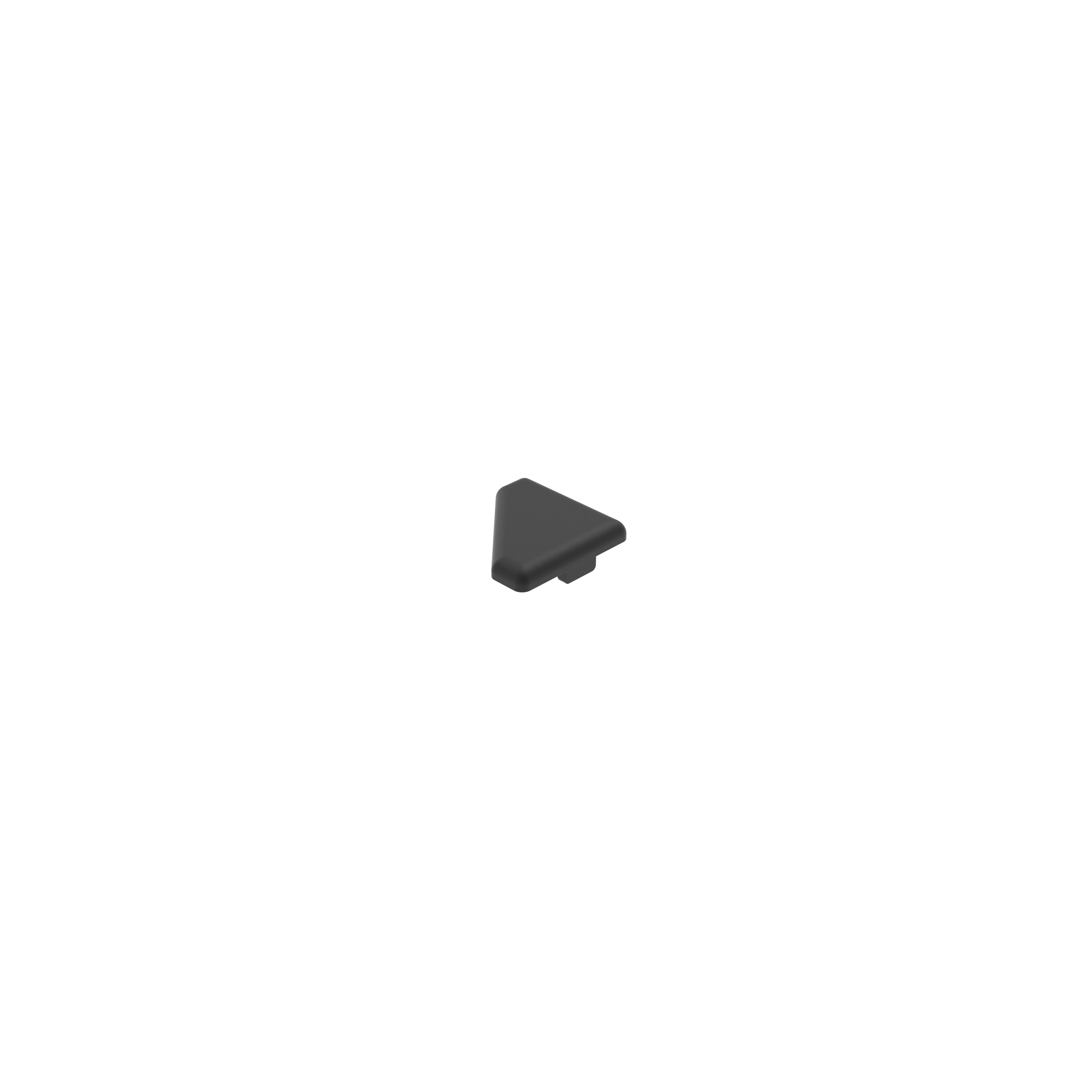

Cover Cap for 28 mm - 1.1" Modular Dimension

€0.00

Feature

1 cross

ØD (mm)

6.9

R (mm)

2.0

T (mm)

4.0

Dimensions A x B (mm)

28 x 28 - 1.1" x 1.1" 45°

Part #: 091085

Pack Quantity: 100 pieces

Product information "Cover Cap for 28 mm - 1.1" Modular Dimension"

Color:
Black

Delivery Countries:
Worldwide

Description:

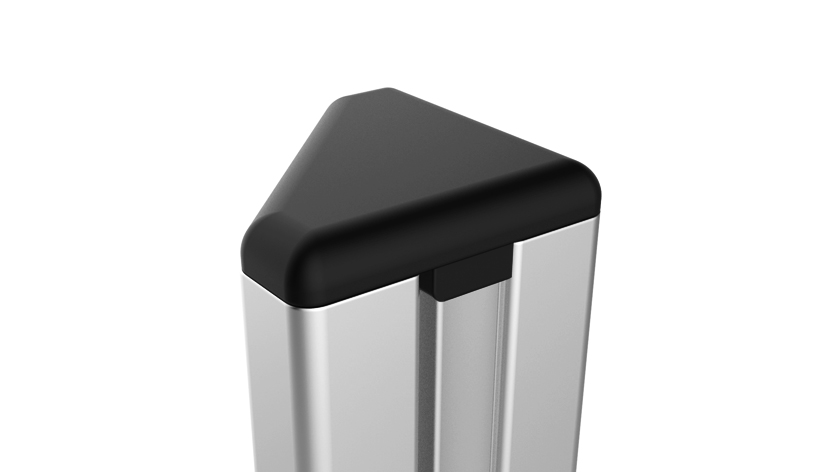

To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	100 pieces
Model:	28 mm - 1.1" modular dimension
Weight (g):	2.6
ERP Number:	100074

Variants

Part #	Feature	ØD (mm)	R (mm)	T (mm)	Dimensions A x B (mm)	CAD
091085	1 cross	6.9	2.0	4.0	28 x 28 - 1.1" x 1.1" 45°

CAD Downloads

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Product Feature	Fractional
Profile Form	T-slot Profiles
