Cover Cap for 45 mm Modular Dimension
Product number:
091083S02
Product information "Cover Cap for 45 mm Modular Dimension"
Color:
Black, gray
Delivery Countries:
Worldwide
Description:
To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Black, gray
Delivery Countries:
Worldwide
Description:
To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360192 |
| (ECLASS 12.0): | 23360192 |
| (ECLASS 13.0): | 23360192 |
| Customs Tariff Number Export: | 39269097 |
| Model: | 45 mm modular dimension |
| Pack Quantity: | 100 pieces |
| Pack Quantity (1): | 100 |
| Weight (g): | 10.2 |
| Zolltarifnummer: | 39269097900 |
| pA Number: | 138643 |
Variants

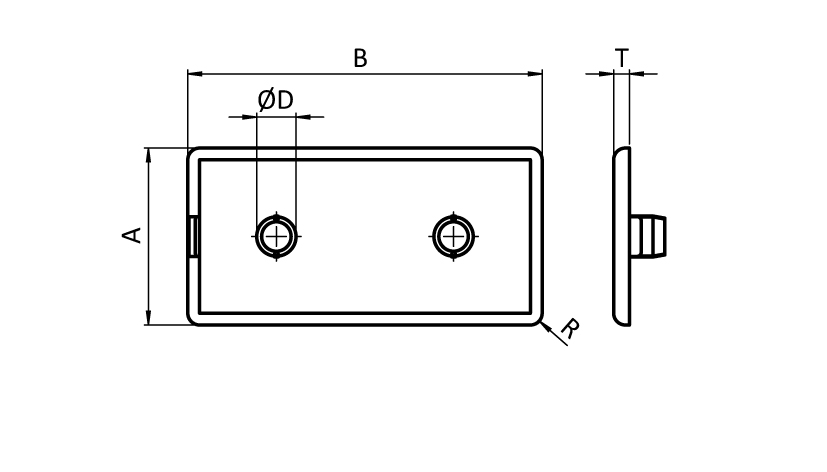

| Product ID | R (mm) | Profile | Slot N (mm) | T (mm) | ØD (mm) | Dimensions A x B (mm) | Feature | Color |
|---|---|---|---|---|---|---|---|---|
| 091002 | 3.0 | B | 10 | 4.0 | 4.0 | 22.5 x 45 | 4 pins | Black |
| 091002S01 | 3.0 | B | 10 | 4.0 | 4.0 | 22.5 x 45 | 4 pins | Gray ≈ RAL 7004 |
| 091006 | 3.0 | B | 10 | 4.0 | 10.4 (10.0) | 45 x 90 | 2 Pins for core hole | Black |
| 091006S07 | 3.0 | B | 10 | 4.0 | 10.4 (10.0) | 45 x 90 | 2 Pins for core hole | Gray ≈ RAL 7004 |
| 091011 | 4.0 | B | 10 | 4.0 | 10.4 (10.0) | 45 x 45 | 1 pin for core hole | Black |
| 091011S03 | 4.0 | B | 10 | 4.0 | 10.4 (10.0) | 45 x 45 | 1 pin for core hole, ESD electrostatical discharging | Black |
| 091011S14 | 4.0 | B | 10 | 4.0 | 10.4 (10.0) | 45 x 45 | 1 pin for core hole | Gray ≈ RAL 7004 |
| 091015 | 3.0 | B | 10 | 4.0 | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3 | Black |
| 091015S02 | 3.0 | B | 10 | 4.0 | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3, ESD electrostatical discharging | Black |
| 091015S03 | 3.0 | B | 10 | 4.0 | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3 | Gray ≈ RAL 7004 |
| 091017 | 3.0 | B | 10 | 4.0 | 10.8 (10.0) | 45 x 60 | 1 pin for core hole | Black |
| 091017S02 | 3.0 | B | 10 | 4.0 | 10.8 (10.0) | 45 x 60 | ESD electrostatical discharging, 1 pin for core hole | Black |
| 091017S04 | 3.0 | B | 10 | 4.0 | 10.8 (10.0) | 45 x 60 | 1 pin for core hole | Gray ≈ RAL 7004 |
| 091024 | 3.5 | B | 10 | 4.0 | 90 x 90 | 4 support ribs | Black | |
| 091025 | 5.0 | 4.0 | 5.0 | 90 x 90 | 4 pins 5.0 | Black | ||
| 091030 | 5.0 | B | 10 | 4.0 | 10.2 (10.0) | 90 x 90 light (superlight) | 4 pins for core hole, 4 pins | Black |
| 091030S03 | 5.0 | B | 10 | 4.0 | 10.2 (10.0) | 90 x 90 light (superlight) | 4 core holes, 4 pins, ESD electrostatical discharging | Black |
| 091030S04 | 5.0 | B | 10 | 4.0 | 10.2 (10.0) | 90 x 90 light (superlight) | 4 pins for core hole, 4 pins | Gray ≈ RAL 7004 |
| 091064 | 3.0 | 10 | 4.0 | 10.6 | 45 x 90 | 2 Pins for core hole | Black | |
| 091083 | 3.0 | B | 10 | 4.0 | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3 | Black |
| 091083S01 | 3.0 | B | 10 | 4.0 | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3, ESD elektrostatical discharging | Black |
| 091083S02 | 3.0 | B | 10 | 4.0 | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3 | Gray ≈ RAL 7004 |
| 091112 | 3.0 | 10 | 4.0 | 6.9 | 45 x 45 | 1 cross | Black | |
| 091113 | 3.0 | 10 | 4.0 | 6.9 | 45 x 90 | 2 crosses | Black | |
| 091130 | 3.0 | B | 10 | 4.0 | 10.0 | 45 x 45 R37.5 - 90° | 1 pin for core hole | Black |
| 091130S03 | 3.0 | B | 10 | 4.0 | 10.0 | 45 x45 R37.5 - 90° | 1 pin for core hole | Gray ≈ RAL 7004 |
| 091169 | 3.5 | 4.0 | 10.5 | 90 x 90 | 4 crosses | Black | ||
| 091207 | 3.0 | B | 10 | 4.0 | 15.1 | 90 x 90 | New version, 4 support ribs | Black |
| 091207S04 | 3.0 | B | 10 | 4.0 | 15.1 | 90 x 90 | New version, 4 support ribs, ESD electrostatical discharging | Black |
| 091207S05 | 3.0 | B | 10 | 4.0 | 15.1 | 90 x 90 | New version, 4 support ribs | Gray ≈ RAL 7004 |
| 091214 | 1.75 | 10 | 4.0 | 10.0 | 45 x 45 R40 - 90° | 1 pin for core hole | Black | |
| 091276 | 3.0 | B | 10 | 4.0 | 15.2 | 90 x 90 | 8 support ribs | Black |
| 091276S03 | 3.0 | B | 10 | 4.0 | 15.2 | 90 x 90 | 8 support ribs | Gray ≈ RAL 7004 |
| 091288 | 2.5 | B | 10 | 4.0 | 10.4 | 45 x 45 | 1 pin for core hole | Black |
