Cover Cap for 60 mm Modular Dimension

Product information "Cover Cap for 60 mm Modular Dimension"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:
To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request
Pack Quantity: 50 pieces
Model: 60 mm modular dimension
Weight (g): 23.2
ERP Number: 100040

Global keywords / tags:

Profile Type Profile Type I
Slot Size Slot 10
Modular Dimension Modular Dimension 60

Variants

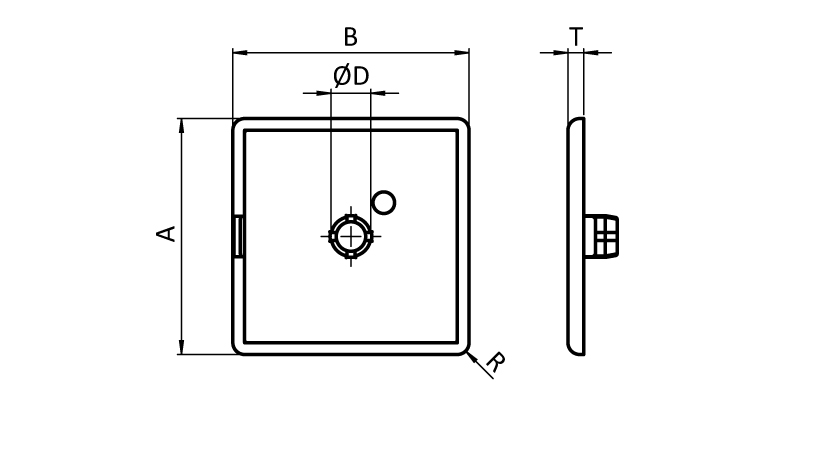

Part # Profile Feature Fig. Color Slot N (mm) ØD (mm) R (mm) T (mm) Dimensions A x B (mm)
B 1 pin for core hole ① Black 10 10.6 (10.0) 3.0 4.0 60 x 60
B 1 pin for core hole ① Gray ≈ RAL 7004 10 10.6 (10.0) 3.0 4.0 60 x 60
- 1 cross 13.5, 2 Pins for core hole, 11.4 ② Black 10 11.4 - 13.5 2.5 4.0 60 x 90
- 4 crosses ① Black - 6.8 2.0 4.0 60 x 60

CAD Downloads

Classifications

ECLASS 6.0
23369290
ECLASS 7.0
23369290
ECLASS 8.0
23369290
ECLASS 9.0
23369290
ECLASS 10.0
23369290
ECLASS 11.0
23360192
ECLASS 12.0
23360192
ECLASS 13.0
23360192
Zolltarifnummer
39269097900
Customs Tariff Number Export
39269097
