Cover Cap for Conduit Profile

Product information "Cover Cap for Conduit Profile"

Color:
Black

Delivery Countries:
Worldwide

Description:
To seal the end openings of conduit systems; Fastening with screw M 4

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Customs Tariff Number Export: 39269097
Model: Plastic PA
Pack Quantity: 10 / 50 / 100 pieces
Pack Quantity (1): 10
Pack Quantity (Stück): 10
Weight (g): 59.0
Zolltarifnummer: 39269097900
pA Number: 100234

Variants

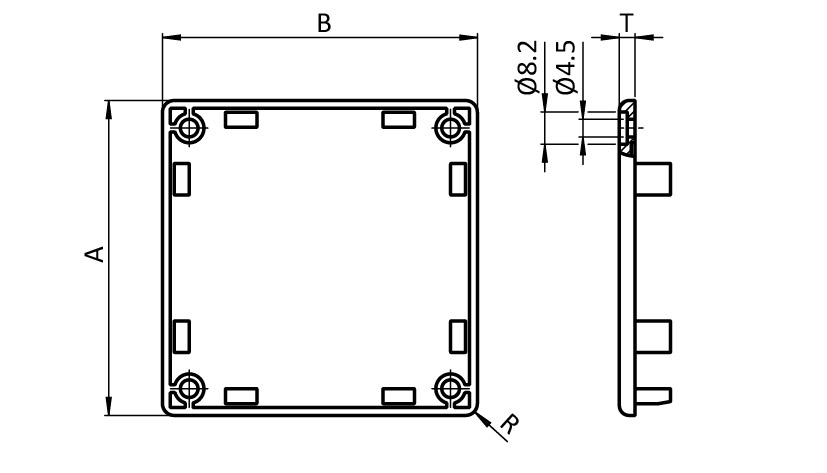

Product ID R (mm) Profile T (mm) Feature Hole Dimensions A x B (mm)
091168 4.0 I 4.0 4 support ribs 4 bore holes 40 x 40
091194 3.0 I 4.0 6 fixation ribs 4 bore holes 40 x 80
091195 3.0 I 4.0 8 support ribs 4 bore holes 80 x 80
091201 3.0 I 4.0 8 support ribs 4 bore holes 40 x 120
091202 3.0 I 4.0 10 fixation ribs 4 bore holes 80 x 120
091203 3.0 I 4.0 12 fixation ribs 4 bore holes 80 x 160
091246 3.0 I 4.0 12 fixation ribs 4 bore holes 120 x 120
091247 3.0 I 4.0 14 fixation ribs 4 bore holes 120 x 160
091248L 4.0 I 4.0 4 support ribs 45° left; 3 bore holes 80 x 80
091248R 4.0 I 4.0 4 support ribs 45° right; 3 bore holes 80 x 80
091249L 4.0 I 4.0 9 fixation ribs 20° left; 4 bore holes 80 x 160
091249R 4.0 I 4.0 9 fixation ribs 20° right; 4 bore holes 80 x 160
