Cover Cap for Handle

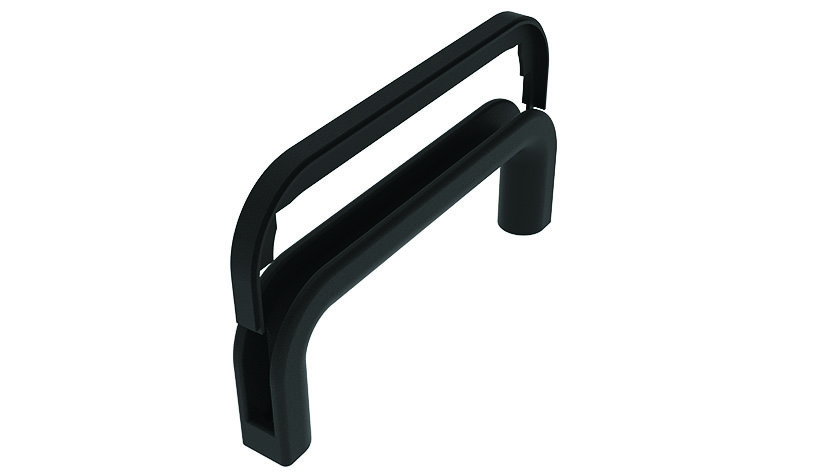

Cover Cap for Handle – application example

Product information "Cover Cap for Handle"

Color:
Black, yellow, red, blue, gray

Delivery Countries:
Worldwide

Description:
To cover the open side of the handle

Material:
Plastic PA, glass fiber reinforced

Specials:
Other colors on request

Tip:
Compatible Handle see 092012

Pack Quantity:	10 pieces
Model:	Plastic PA, 120 and 160 mm
Weight (g):	21.4
ERP Number:	128646

Global keywords / tags:

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering

Variants

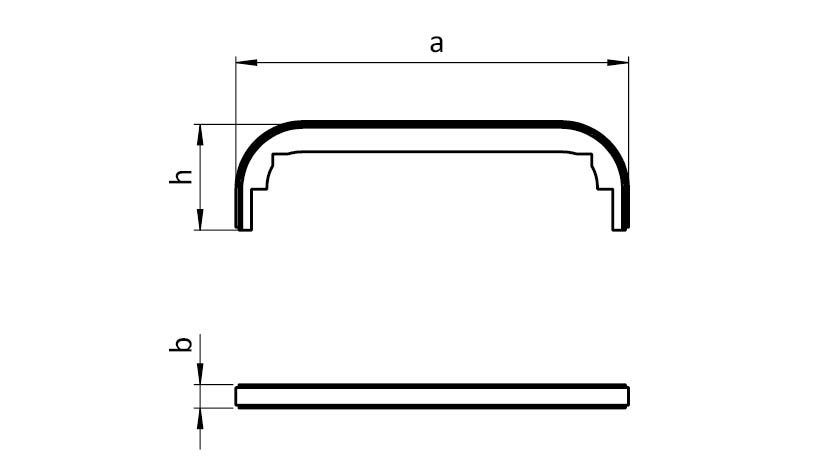

Part #	Version	h (mm)	Color	b (mm)	a (mm)
092018	160	47.0	Black	18.0	186.0
092018S03	160	47.0	Blue ≈ RAL 5010	18.0	186.0
092018S05	160	47.0	Gray ≈ RAL 7042	18.0	186.0
092019	120	37.4	Black	8.5	132.0
092019S01	120	37.4	Gray ≈ RAL 7042	8.5	132.0

CAD Downloads

Classifications

ECLASS 6.0: 23010103
ECLASS 7.0: 23010103
ECLASS 8.0: 23010103
ECLASS 9.0: 23010103
ECLASS 10.0: 23010103
ECLASS 11.0: 23010103
ECLASS 12.0: 23010103
ECLASS 13.0: 23010103
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates
