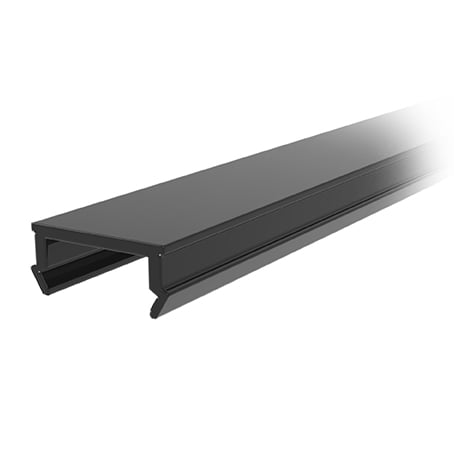

Cover Profile Slot 8 - 2.2

Product information "Cover Profile Slot 8 - 2.2"

Color:
Black, yellow, red, blue, gray, white, natural, aluminum color

Delivery Countries:
Worldwide

Description:

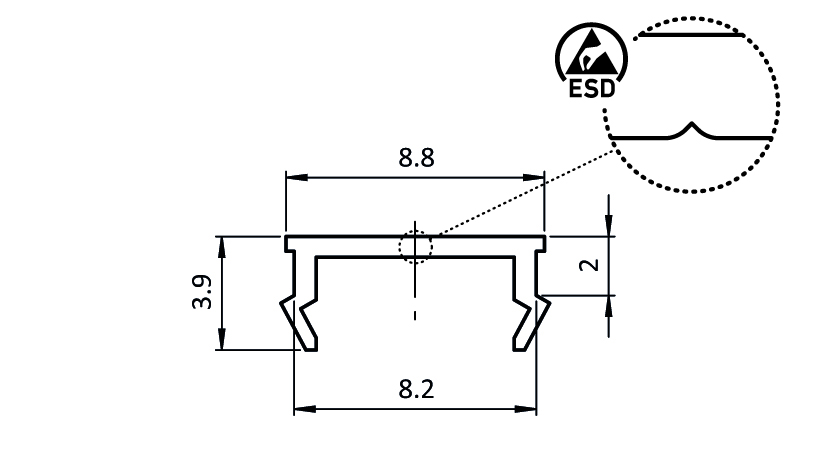

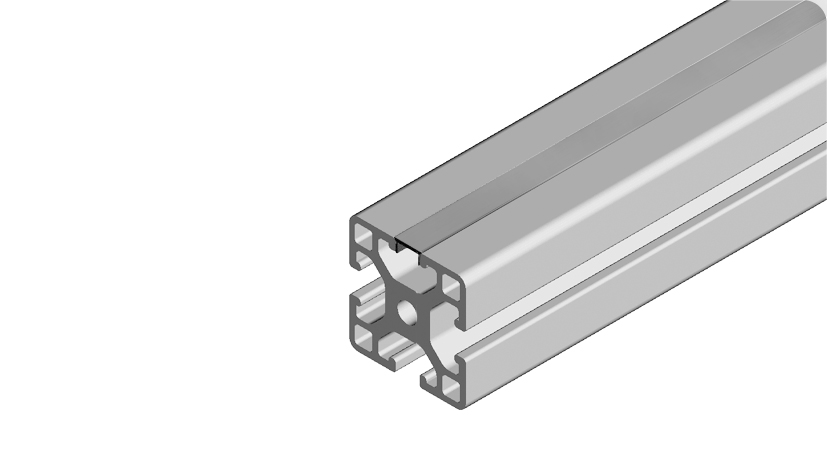

To cover T-Slots with 8 width and a 2.2 mm profile web

Material:
Plastic PP

Specials:
Other colors on request

Tip:
ESD electrostatical discharging version: Notch at the bottom side

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360192
(ECLASS 12.0):	23360192
(ECLASS 13.0):	23360192
Customs Tariff Number Export:	39169050
ERP Number:	166850
Model:	Plastic PP, slot 8
Pack Quantity:	200 meters (100 pieces at 2 m)
Weight (g/m):	10.0
Zolltarifnummer:	39169050900

Variants

Product ID	Profile	ESD	Slot N (mm)	Color
092050	B		8	Black
092050A	B		8	Alu color coated
092050AS01	B	ESD electrostatical discharging	8	Alu color coated
092050S03	B		8	Natural
092050S04	B		8	Blue ≈ RAL 5005
092050S07	B		8	Red ≈ RAL 3020
092050S12	B	ESD electrostatical discharging	8	Black
092050S14	B		8	Gray ≈ RAL 7004
092050S16	B		8	Yellow ≈ RAL 1023
092050S17	B		8	White ≈ RAL 9010
092052	B		8	Gray ≈ RAL 7035

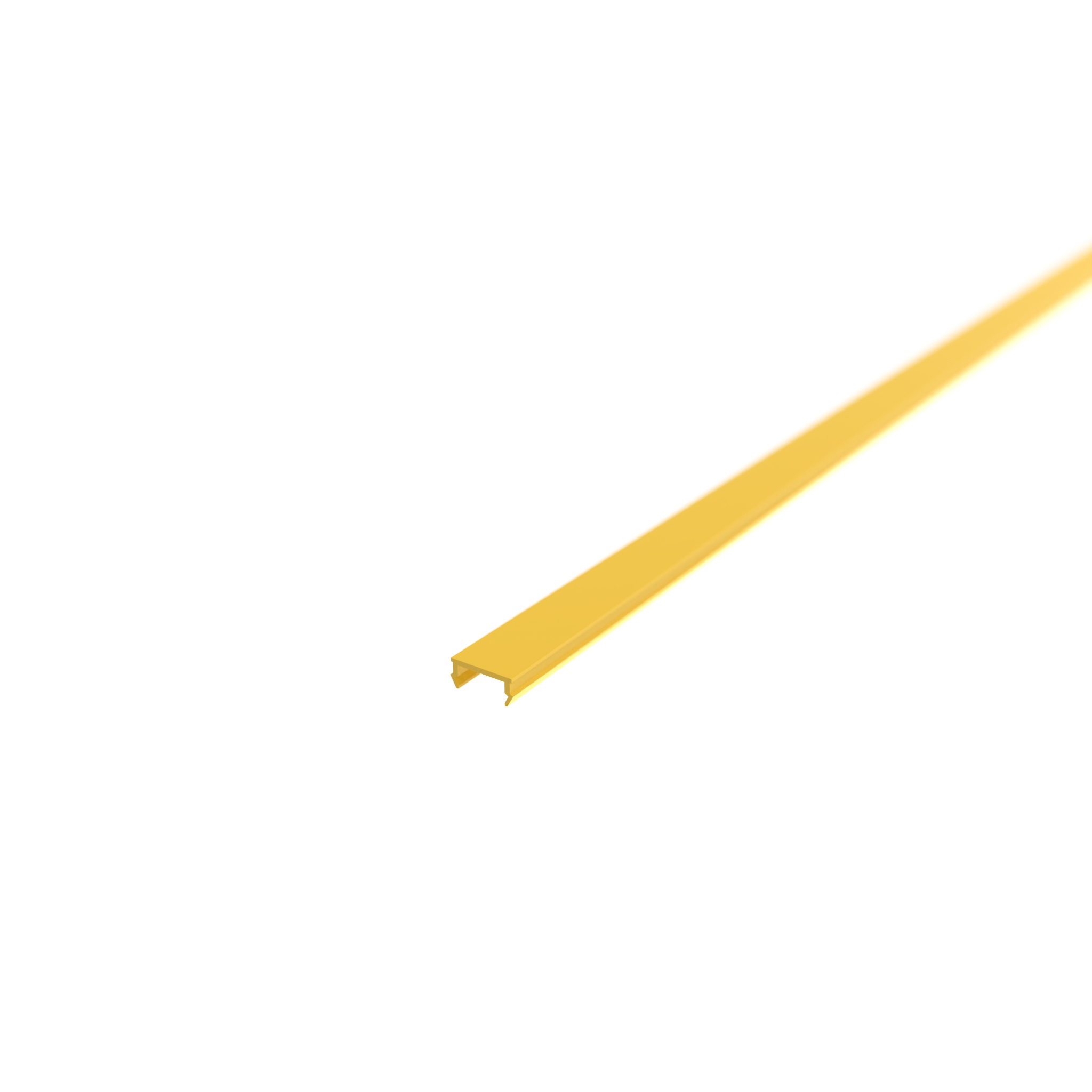

092054	B		8	Yellow ≈ RAL 1018
