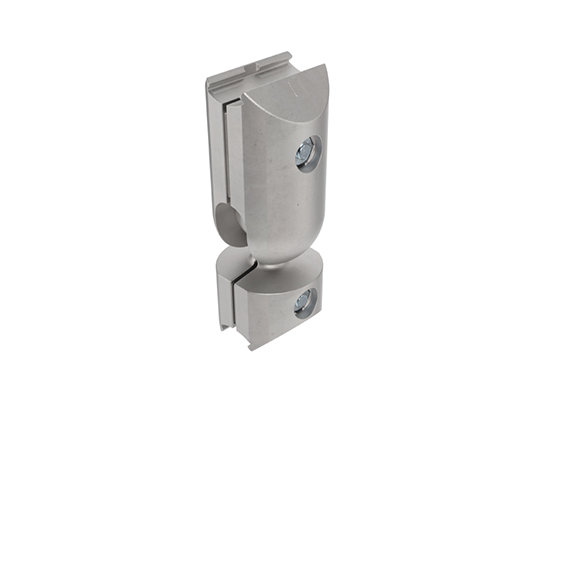

Cross Ball Connector D30 (Set)
Part #:
099RV30KS04
Product information "Cross Ball Connector D30 (Set)"
Delivery Countries:
Worldwide
Description:

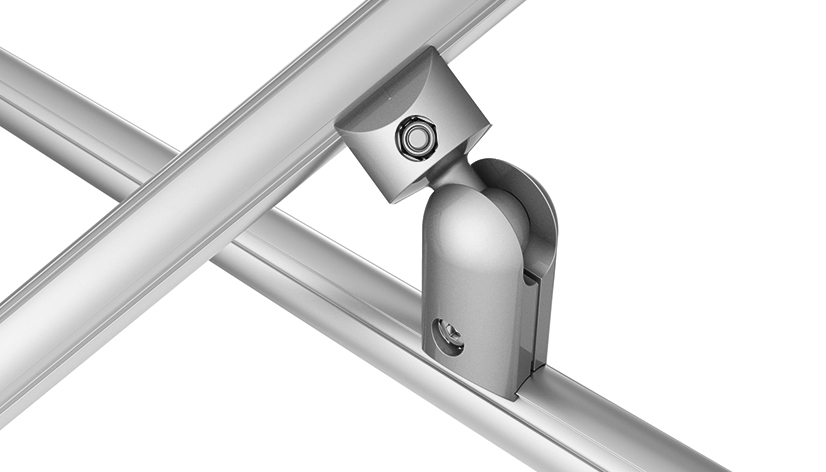

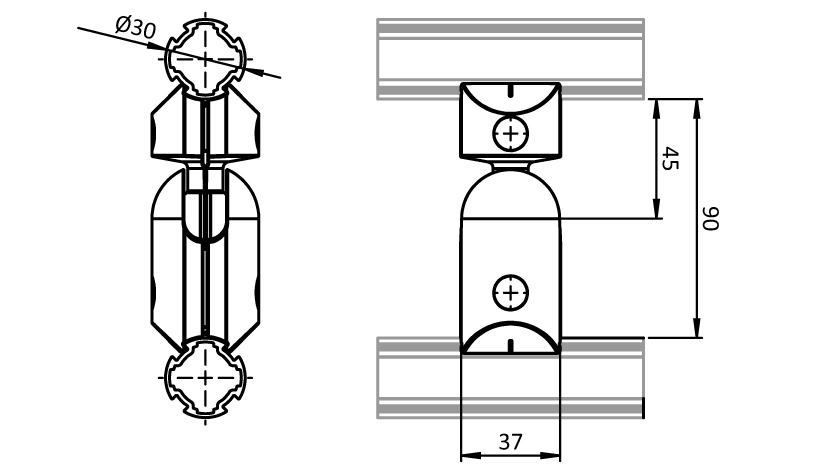

To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 cross ball connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Worldwide
Description:
To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 cross ball connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 147074 |
| Model: | For tubular frame profiles |
| Pack Quantity: | 10 sets |
| Weight (g): | 220.0 |
| Zolltarifnummer: | 76169910990 |
