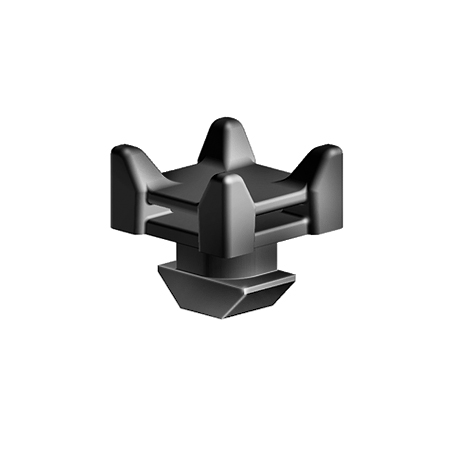

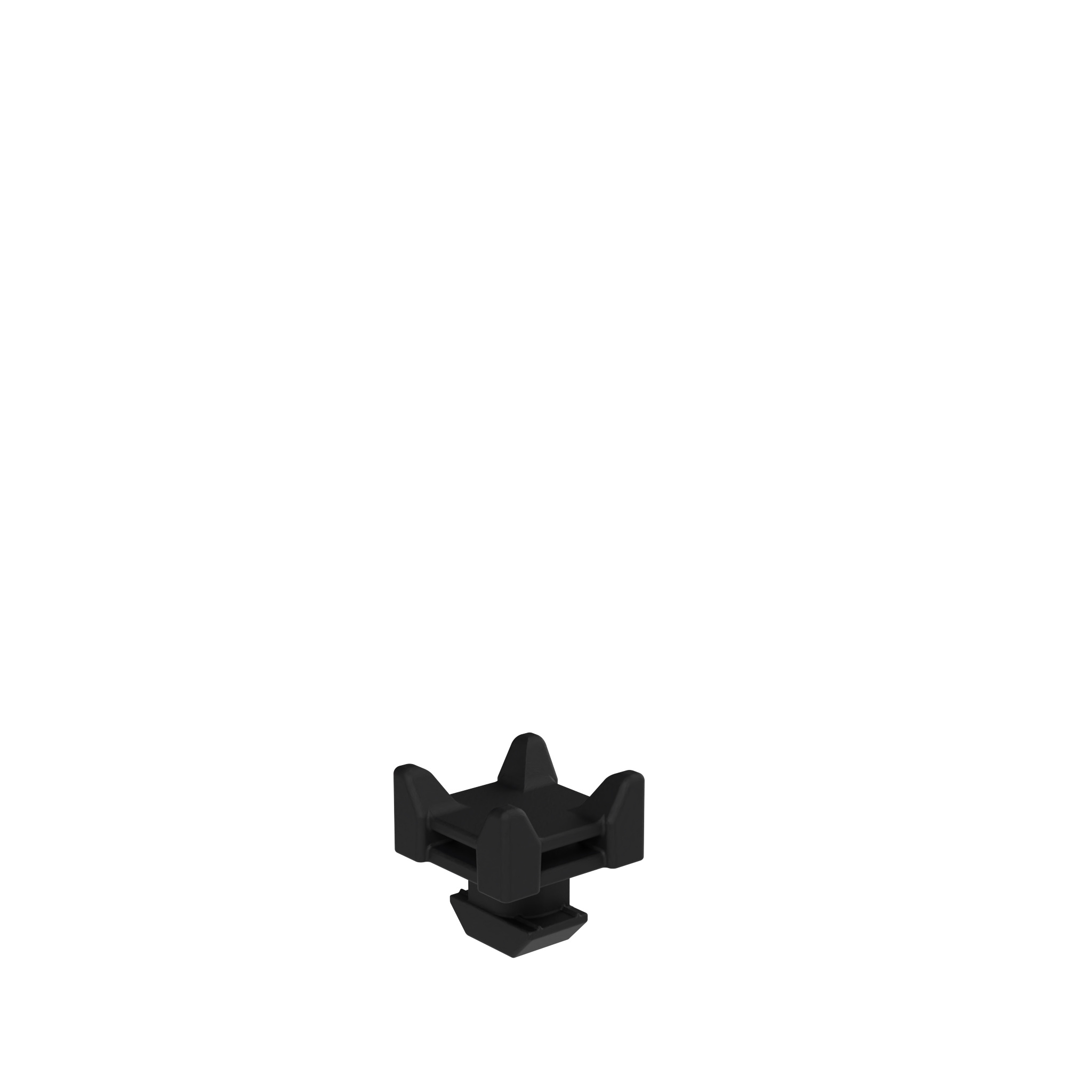

Cross Cable Binder Block

Product information "Cross Cable Binder Block"

Color:
Black

Delivery Countries:
Worldwide

Description:

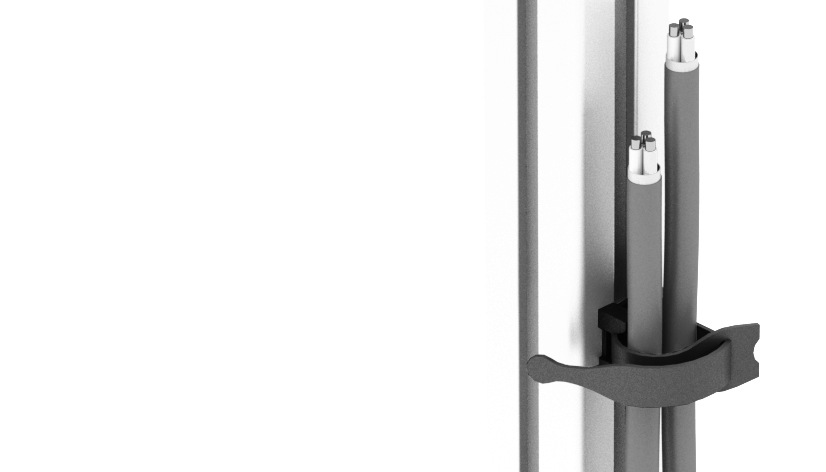

To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turn

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Velcro® strap: Plastic PE (hook), Plastic PA (loop)

Specials:
Customized hammer, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Model: Plastic PA, Slot 8, 10
Pack Quantity: 100 pieces
Weight (g): 4.4

Variants

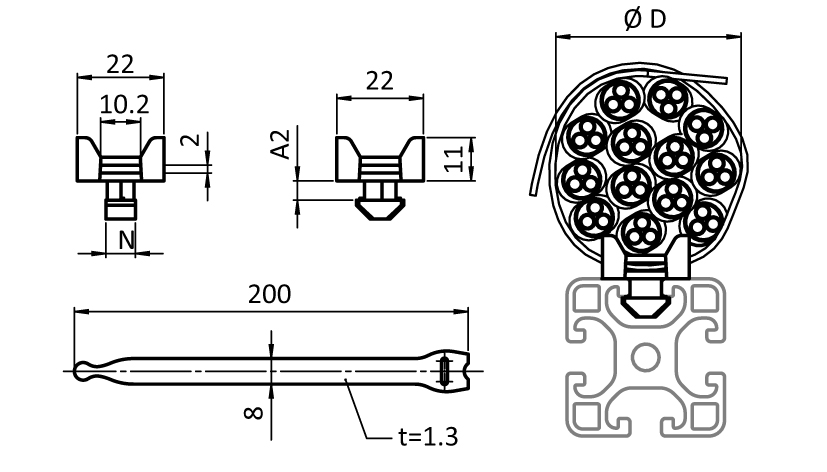

Product ID Profile A2 (Profile) (mm) Slot N (mm) Version ØD (mm)
093249 B 5.8 (6.0) 10
093249S03 B 5.8 (6.0) 10 With Velcro® strap ≤ 50
093251 I 4.6 (4.5) 8
093254 I 4.4 (4.5) 8
093254S03 I 4.4 (4.5) 8 With Velcro® strap ≤ 50
093258 B 2.1 (2.2) 8

CAD Downloads

Certificates
