Cube Connector 20, 2D

Product information "Cube Connector 20, 2D"

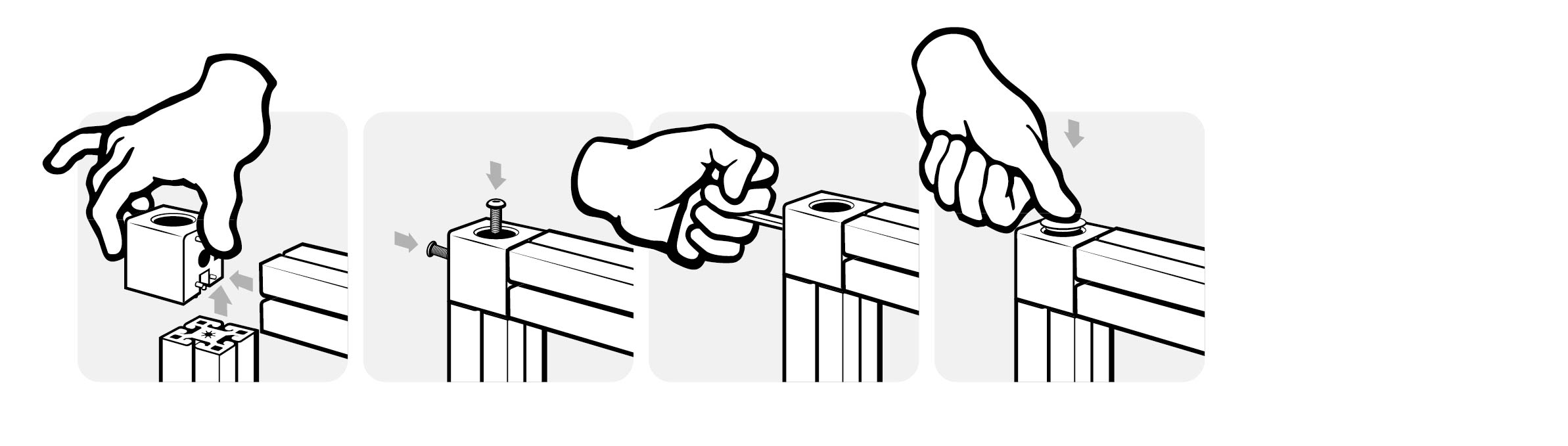

Assembly Set 1:
2 screws DIN EN ISO 7380 (DIN 34805) - M5 x 14

Assembly Set 2:
2 self-forming screws S6 x 16 - AF 4

Color:
Cube connector: Alu color
Cover caps: Black / alu color

Delivery Countries:
Worldwide

Description:

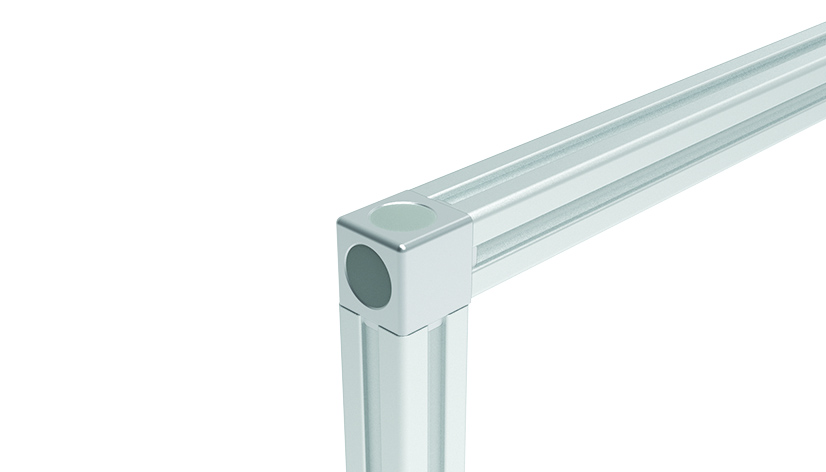

To connect two aluminium profiles at right angles; with cover caps to cover the bores

Material:
Cube connector: Zinc die-cast
Cover caps: Plastic PA
Assembly set: Steel

Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 79070000
Model: Zinc die-cast, with Cover Caps
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 39.0
Zolltarifnummer: 79070000900
pA Number: 148141

Variants

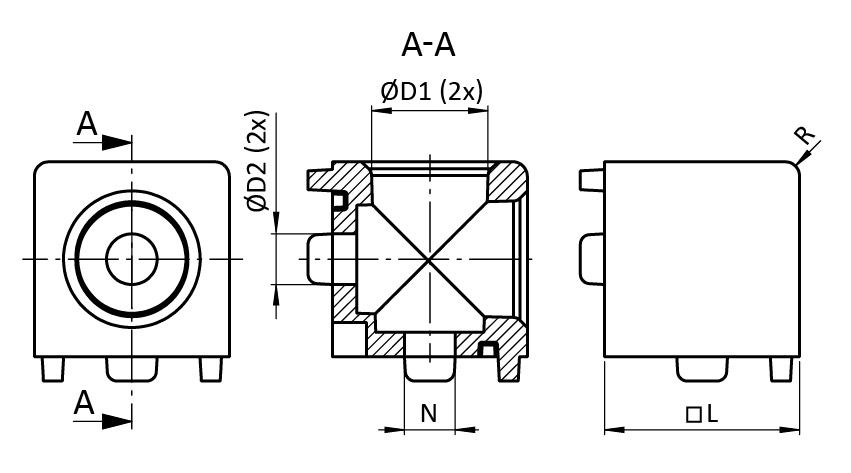

Product ID R (mm) D2 (mm) D1 (mm) Profile Slot N (mm) Color L (mm) Version Surface
093WW203N05 1.5 5.2 12.0 I 5 Alu color 20.0 Cover cap: alu color Powder coated
093WW203N05S01 1.5 5.2 12.0 I 5 Alu color 20.0 Cover cap: alu color Powder coated
093WW203N06R 1.5 6.3 12.0 B 6 20.0 Cover cap: Black Plain
093WW203N06RS 1.5 6.3 12.0 B 6 20.0 Cover cap: Black Plain
