Cube Connector 25 - 1", 2D
Product number:
093WW251N06
Product information "Cube Connector 25 - 1", 2D"
Assembly Set 1:
2 screws ISO 7380 - UNC 1/4-20x1"
Color:
Cube connector: Alu color
Cover caps: Alu color
Delivery Countries:
Worldwide
Description:

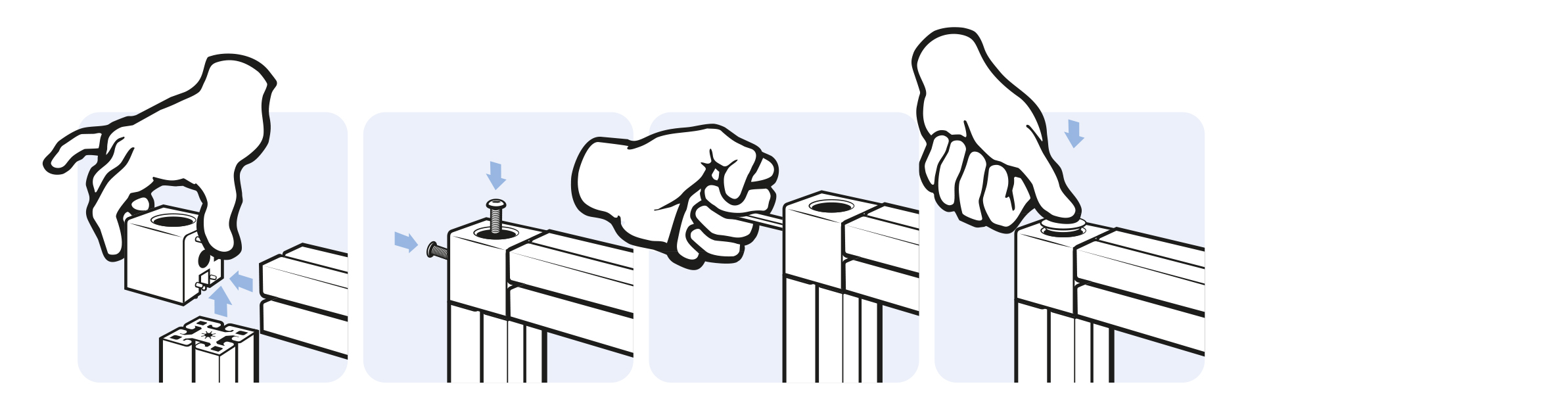

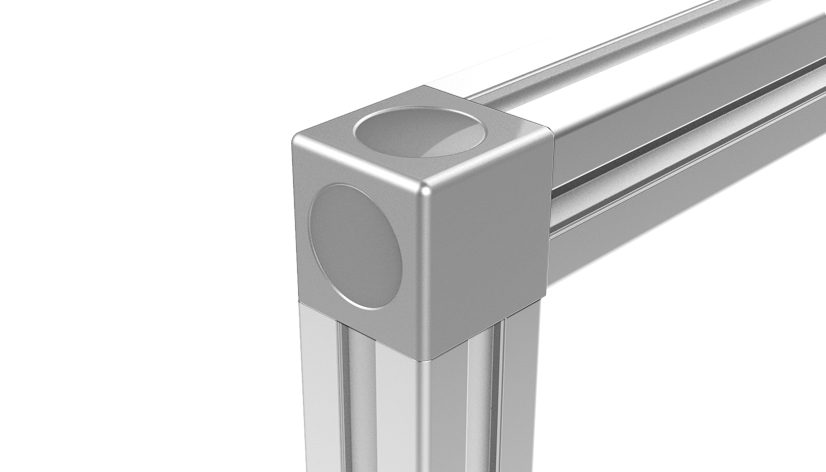

To connect two aluminium profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Powder coated
Cover caps: Laquered
Assembly set: Zinc plated
2 screws ISO 7380 - UNC 1/4-20x1"
Color:
Cube connector: Alu color
Cover caps: Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminium profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Powder coated
Cover caps: Laquered
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| Model: | Aluminum die-cast, with cover caps |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 25.0 |
| Zolltarifnummer: | 76169910990 |
| pA Number: | 119837 |
