Cube Connector 30, 3D

Product information "Cube Connector 30, 3D"

Assembly Set:
3 self-forming screws S8 x 25 - hexagon socket AF 5

Color:
Cube connector: Alu color
Cover caps: Black / alu color

Delivery Countries:
Worldwide

Description:

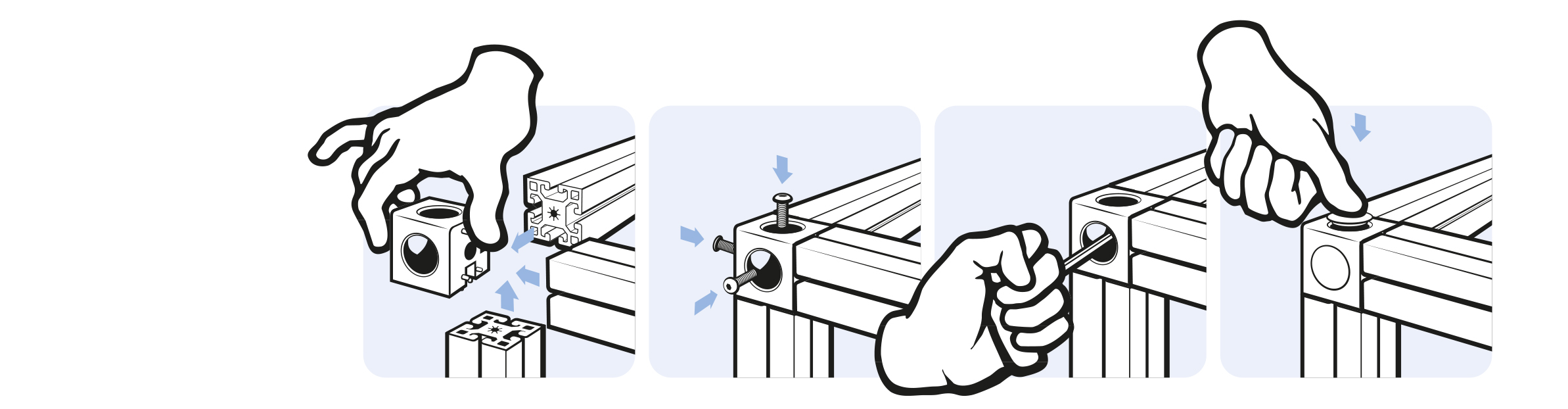

To connect three aluminum profiles at right angles; with cover caps to cover the bores

Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel

Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast, with cover caps
Pack Quantity: 10 pieces / 10 set
Weight (g): 38.5
Zolltarifnummer: 76169910990
pA Number: 111181

Variants

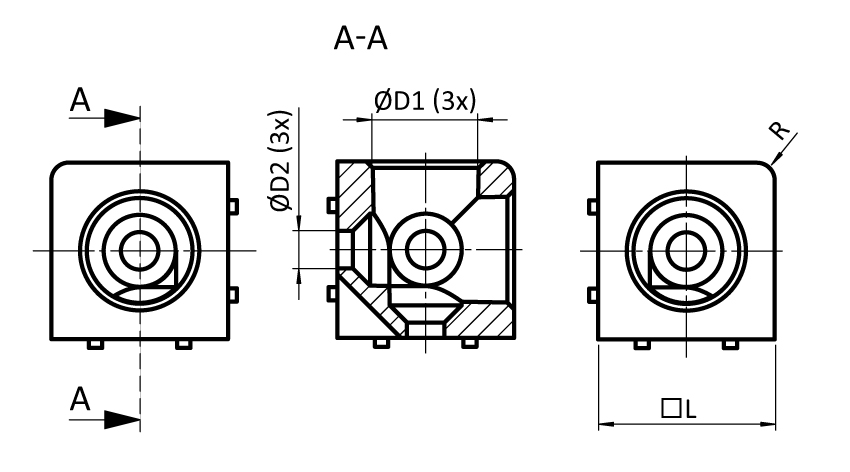

Product ID Profile L (mm) D1 (mm) R (mm) Color Slot N (mm) D2 (mm) Version Surface
093WW304N08 B 30.0 18.0 2.0 Alu color 8 9.0 Cover cap: alu color Powder coated
093WW304N08R B 30.0 18.0 2.0 8 9.0 Cover cap: Black Plain
093WW304N08RS B 30.0 18.0 2.0 8 9.0 Cover cap: Black Plain
093WW304N08S B 30.0 18.0 2.0 Alu color 8 9.0 Cover cap: alu color Powder coated
