Cube Connector 40, 3D

Product information "Cube Connector 40, 3D"

Assembly Set:
3 self-forming screws S12 x 30 - hexalobular socket T50

Color:
Cube connector: Alu color
Cover caps: Black / alu color

Delivery Countries:
Worldwide

Description:

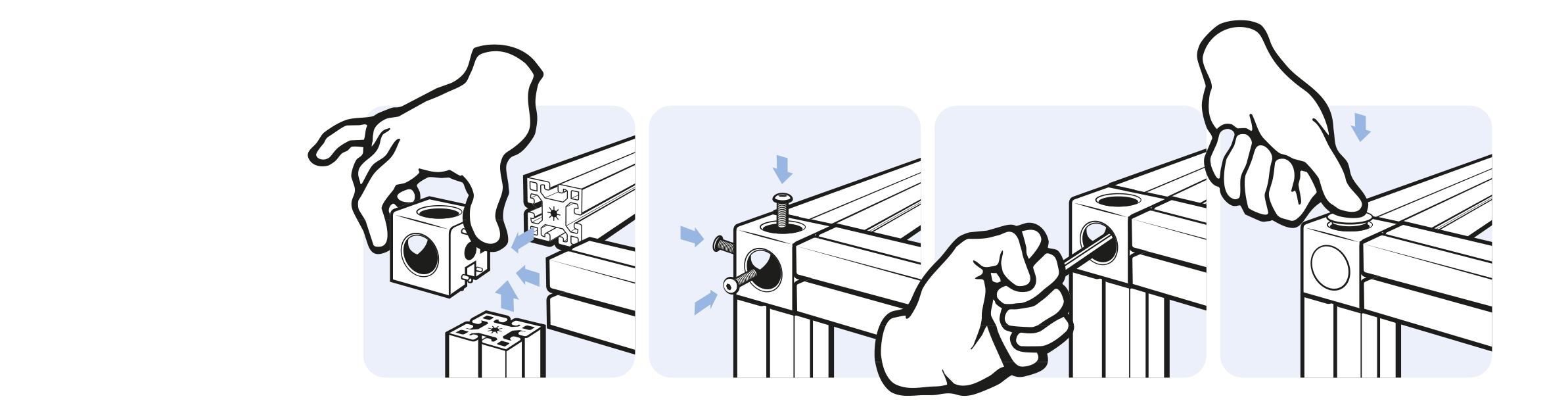

To connect three aluminum profiles at right angles; with cover caps to cover the bores

Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel

Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast, with cover caps
Pack Quantity: 10 pieces / 10 set
Weight (g): 94.5
Zolltarifnummer: 76169910990
pA Number: 111183

Variants

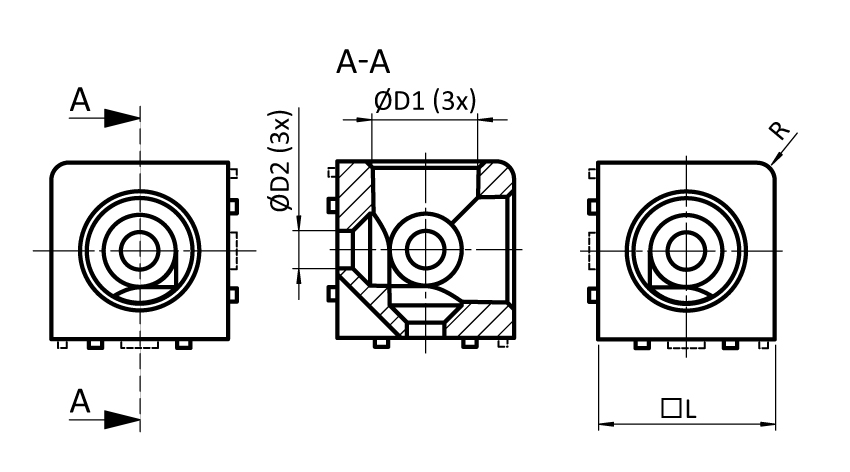

Product ID L (mm) R (mm) Profile D1 (mm) Color Slot N (mm) D2 (mm) Version Surface
093WW406N08 40.0 4.0 I 24.0 Alu color 8 8.5 Cover cap: alu color Powder coated
093WW406N08R 40.0 4.0 I 24.0 8 8.5 Cover cap: Black Plain
093WW408N10 40.0 3.0 B 24.0 Alu color 10 12.5 Cover cap: alu color Powder coated
093WW408N10R 40.0 3.0 B 24.0 10 12.5 Cover cap: Black Plain
093WW408N10RS 40.0 3.0 B 24.0 10 12.5 Cover cap: Black Plain
093WW408N10S 40.0 3.0 B 24.0 Alu color 10 12.5 Cover cap: alu color Powder coated
