Cube Connector 45, 2D

Product information "Cube Connector 45, 2D"

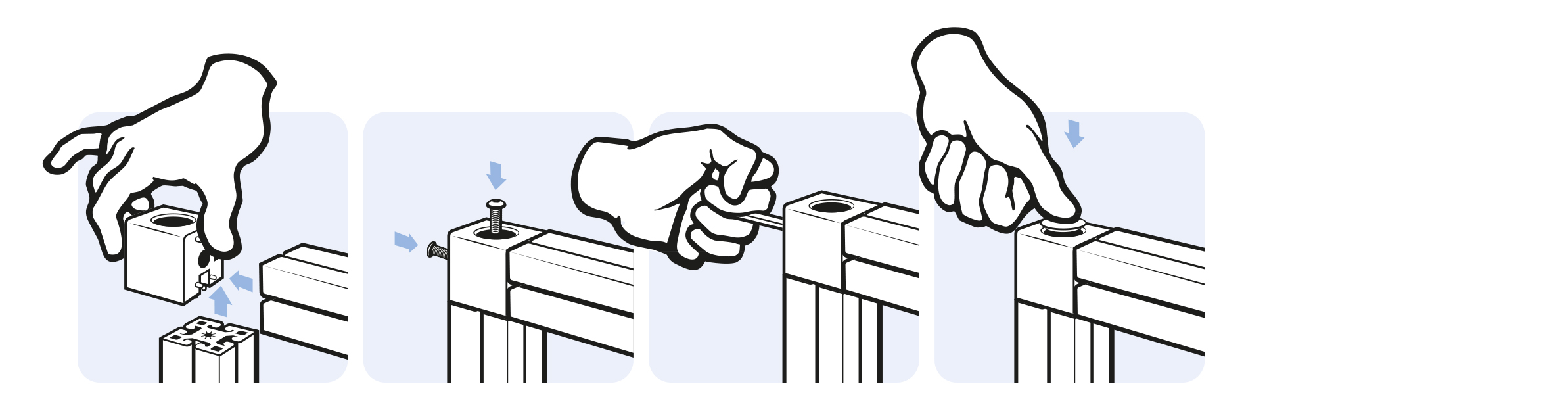

Assembly Set:
2 self-forming screws S12 x 30 - hexalobular socket T50

Color:
Cube connector: Alu color
Cover caps: Black / alu color

Delivery Countries:
Worldwide

Description:

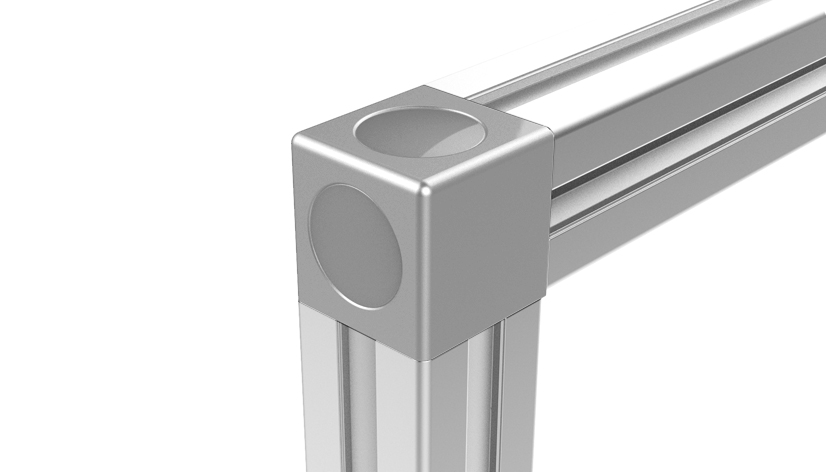

To connect two aluminium profiles at right angles; with cover caps to cover the bores

Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel

Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast, with cover caps
Pack Quantity: 10 pieces / 10 set
Weight (g): 151.5
Zolltarifnummer: 76169910990
pA Number: 110513

Variants

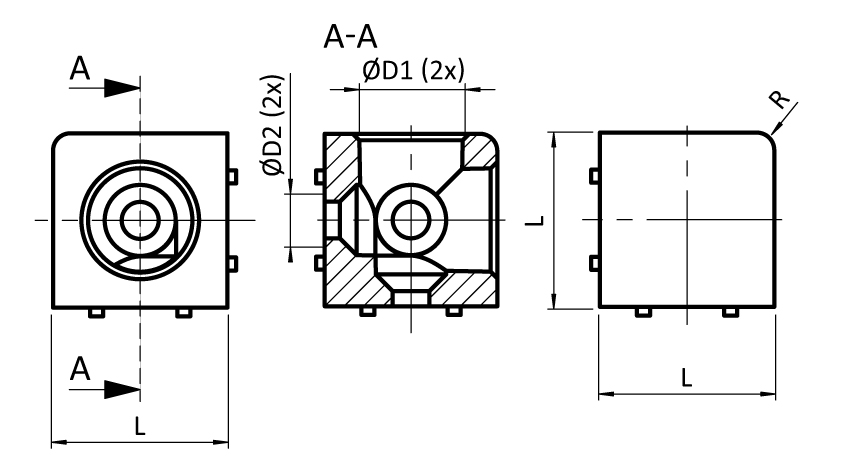

Product ID R (mm) Profile D1 (mm) Slot N (mm) D2 (mm) L (mm) Color Version Surface
093WW453N10 3.0 B 24.0 10 13.0 45.0 Alu color Cover cap: alu color Powder coated
093WW453N10R 3.0 B 24.0 10 13.0 45.0 Cover cap: Black Plain
093WW453N10RS 3.0 B 24.0 10 13.0 45.0 Cover cap: Black Plain
093WW453N10S 3.0 B 24.0 10 13.0 45.0 Alu color Cover cap: alu color Powder coated
