Direct Connector I / B, Slot 8 / 10

Product information "Direct Connector I / B, Slot 8 / 10"

Delivery Countries:
Worldwide

Description:

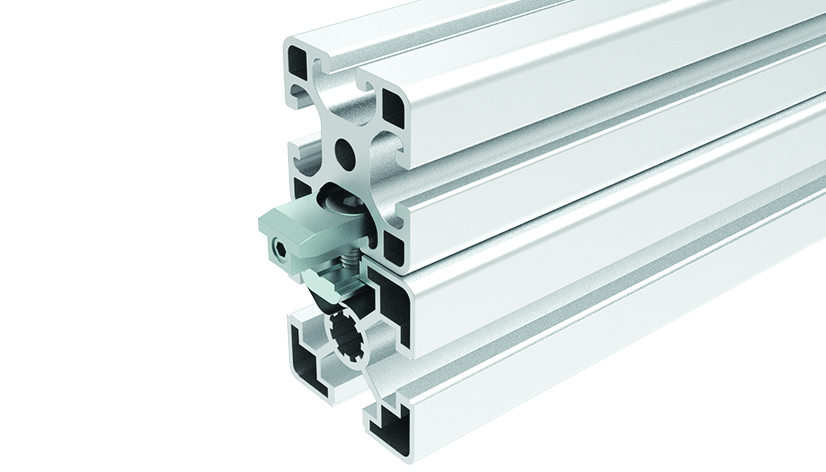

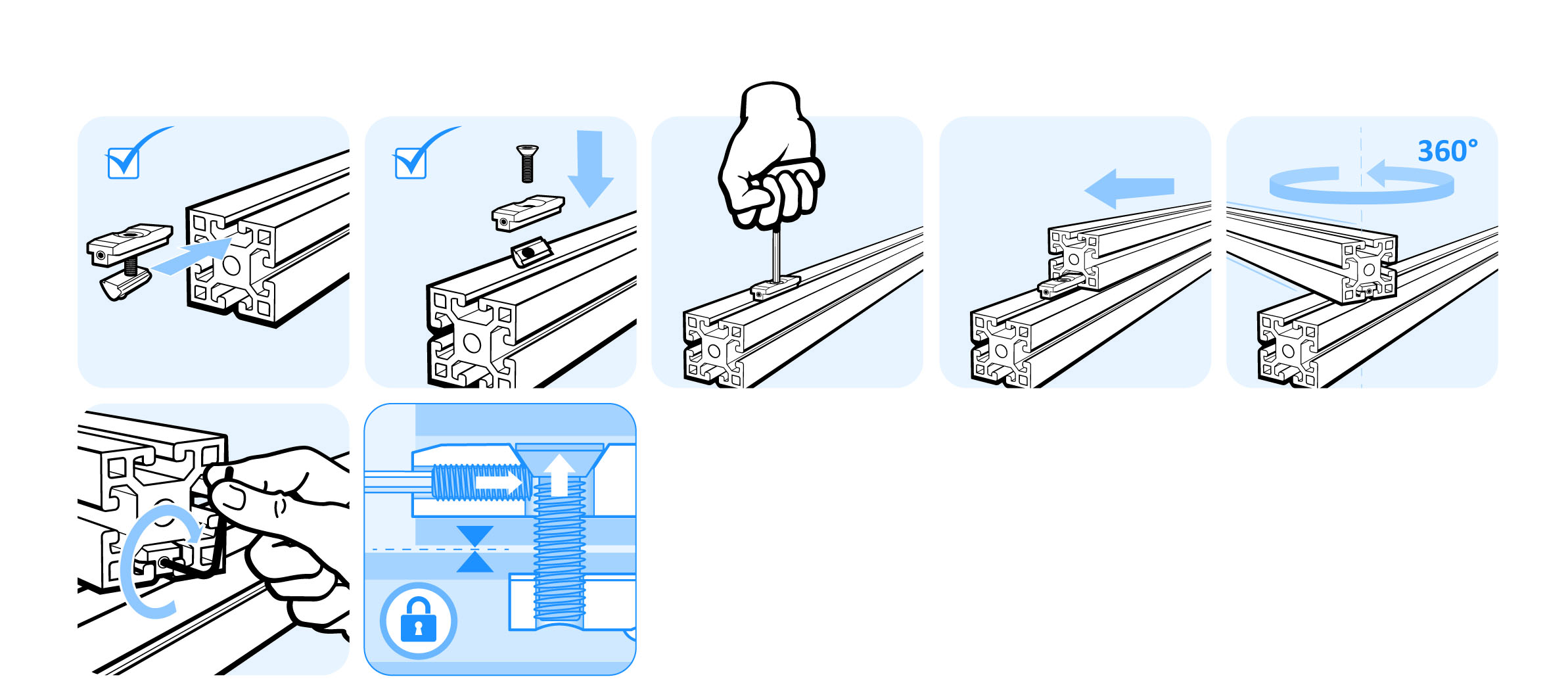

To cross or parallely connect two aluminum profiles slot 8 with slot 10; assembly without machining

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel
Pack Quantity: 10 pieces
Weight (g): 36.0

Variants

Product ID Profile Slot N (mm)
099DC084045N10 B 10
