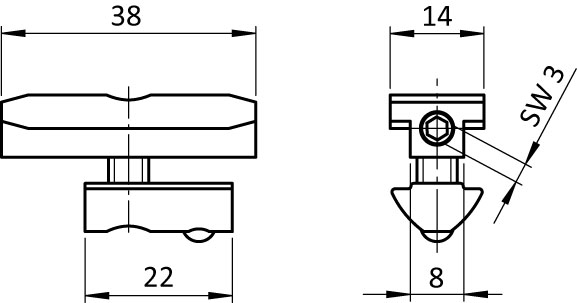

Direct Connector I, Slot 8

Product information "Direct Connector I, Slot 8"

Delivery Countries:
Worldwide

Description:

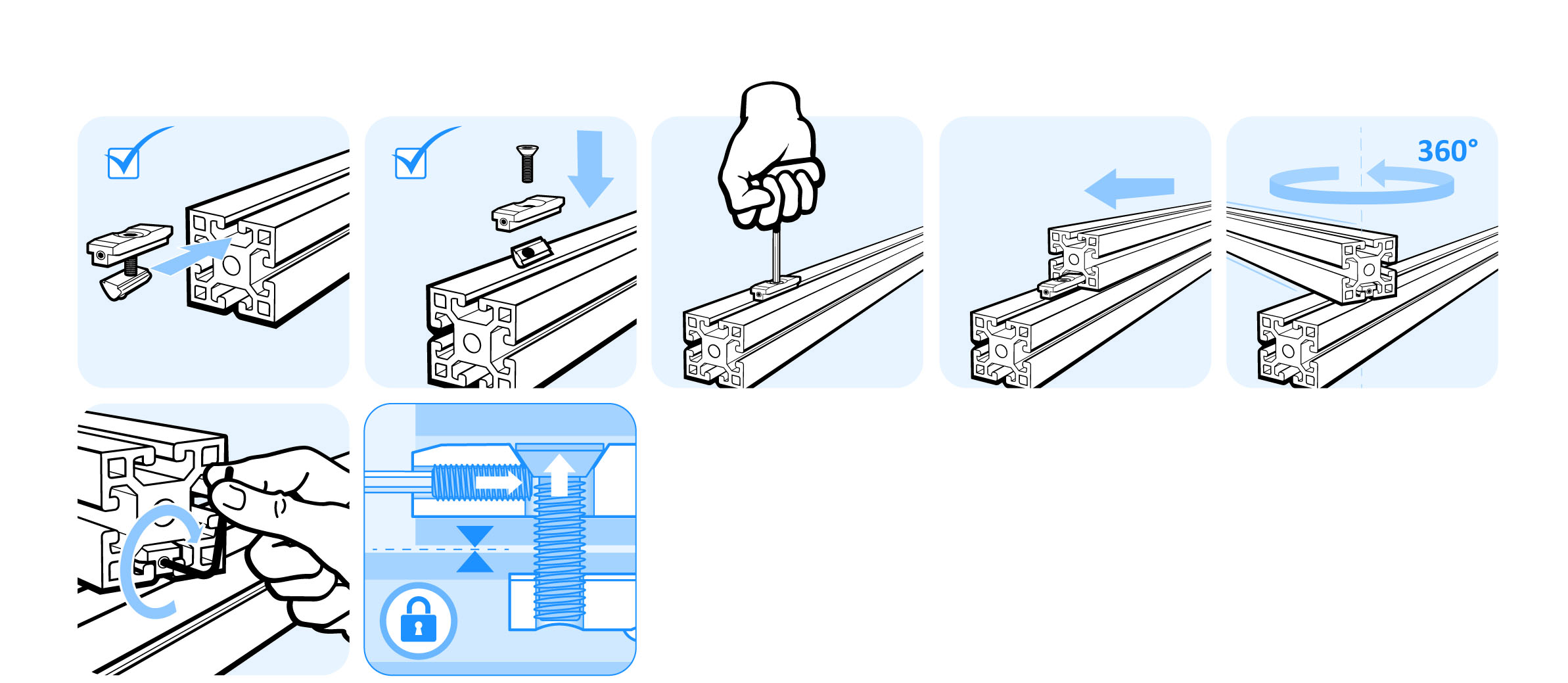

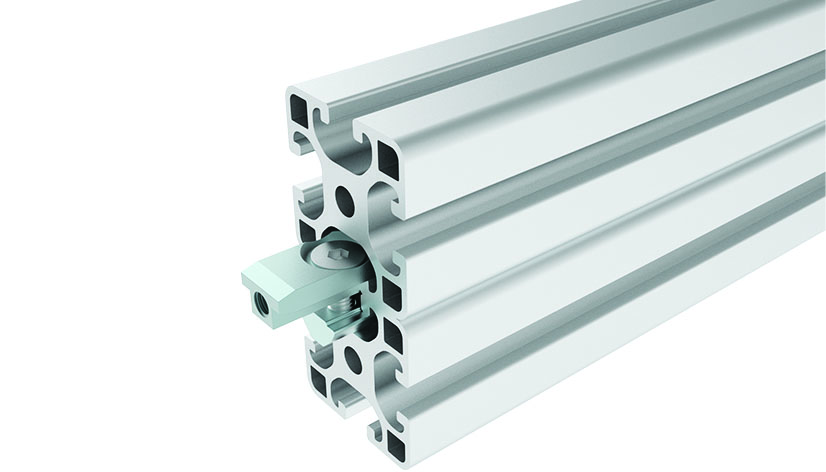

To cross or parallely connect two aluminum profiles; assembly without machining

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel
Pack Quantity: 10 pieces
Weight (g): 38.3

Variants

Product ID Profile Slot N (mm)
099DC084040N08 I 8
