Door Lock (Set)

Product information "Door Lock (Set)"

Color:
Housing: Alu color
Cross: Lack
Handle: Black

Delivery Countries:
Worldwide

Description:

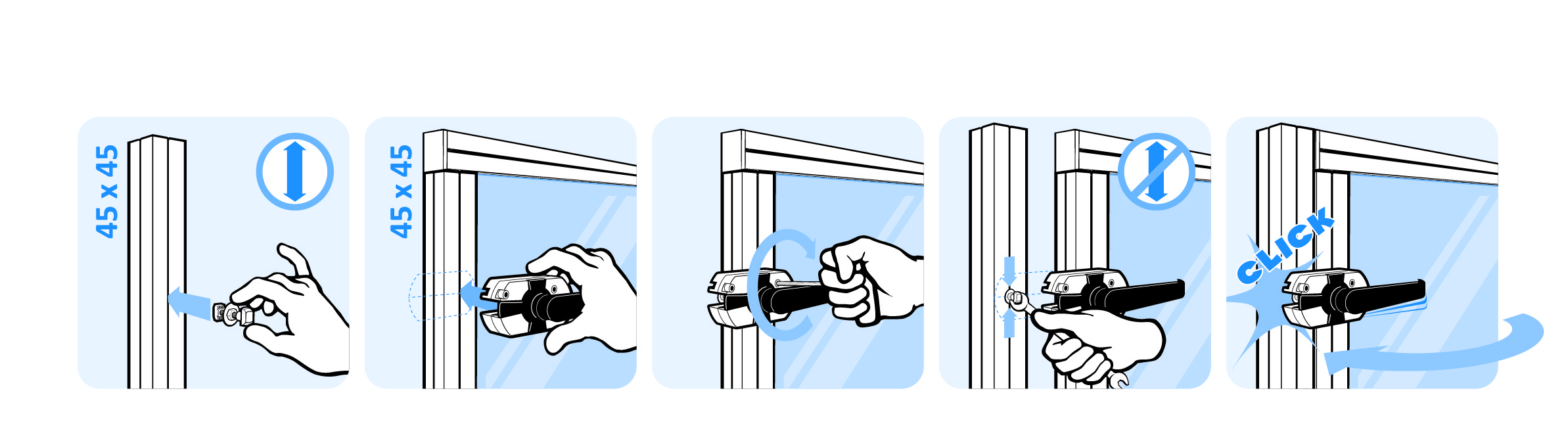

For an easy and secure latching and locking of swing and sliding doors, no mechanical preparation needed for the assembly

Material:
Housing: Aluminum die-cast
Cross: Aluminum die-cast
Handle: Zinc die-cast
Fastening material: Steel

Set:
1 door lock,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30,
1 washer 6-FSt,
1 anchor - M6,
1 nut DIN 934 - M6,
1 washer DIN 9021 form A - 6.4,
3 hammer nut - slot 8 - M6,
3 hammer nut - slot 10 - M6

Surface:
Housing: Lacquered
Cross: Powder coated
Handle: Plastic coated
Fastening material: Zinc plated

Tip:
* Universal: One key fits all slam latches
Unique: Each door lock has a different key
** With double-bitted key
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Model: Aluminum die-cast
Pack Quantity: 1 set
Weight (g): 407.0

Variants

Product ID Lock
0957504 Universal*
0957505 Unique*
0957506 Double-bit lock **
