Double Ball Catch PA

Product information "Double Ball Catch PA"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:

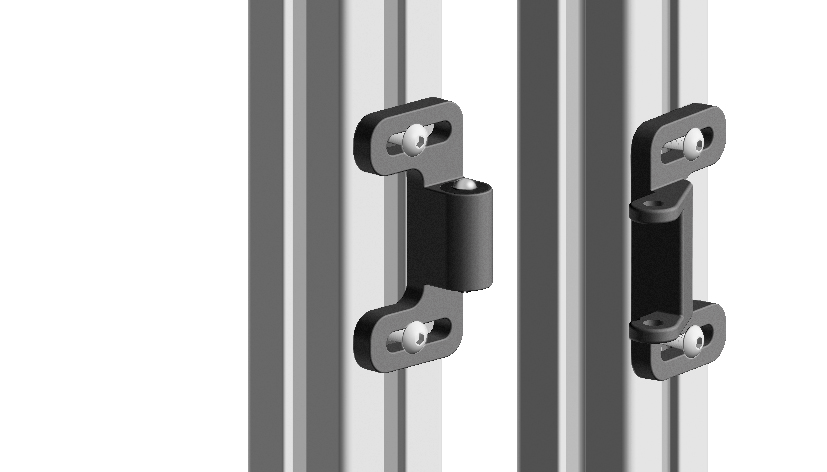

A quick locking device for doors and flaps with and without frame

Material:
Housing standard version: Plastic PA, glass fibre reinforced
Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Ball: Stainless steel
Bushing: Steel, zinc plated

Specials:
Other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250190
(ECLASS 12.0): 23250190
(ECLASS 13.0): 23250190
Fastening: Using M5 screws
Model: Plastic PA
Pack Quantity: 10 pieces
Weight (g): 38.0

Variants

Product ID Locking Force (N) ESD Color
09304701 25 Black
09304701S02 25 Gray ≈ RAL 7004
09304702 25 ESD electrostatical discharging Black
