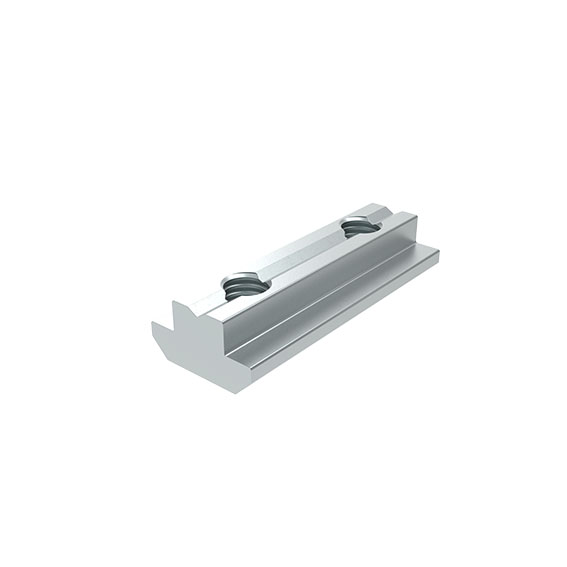

Double T-slot Nut for Floor Mount Base

€0.00

H (mm)

9.6

10.6

Profile

B

I

B (mm)

17.0

19.0

Slot N (mm)

8

10

Part #: 096030S41

Pack Quantity: 10 pieces

Product information "Double T-slot Nut for Floor Mount Base"

Delivery Countries:
Worldwide

Description:
Compatible Double T-Slot Nut for Floor Mount Base see 096060S54

Material:
Double T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel

Specials:
Different lengths with multiple threads in different sizes available on request

Surface:
Double T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain

Tip:
Compatible Floor Mount Base see 098G38150A

Pack Quantity:	10 pieces
Model:	Self-aligning, steel
Weight (g):	49.5
ERP Number:	114114

Variants

Part #	H (mm)	Profile	B (mm)	Slot N (mm)	CAD
096060S54	9.6	I	17.0	8
096030S41	10.6	B	19.0	10

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181900900
Customs Tariff Number Export: 73181900

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot 10
Profile Form	T-slot Profiles
