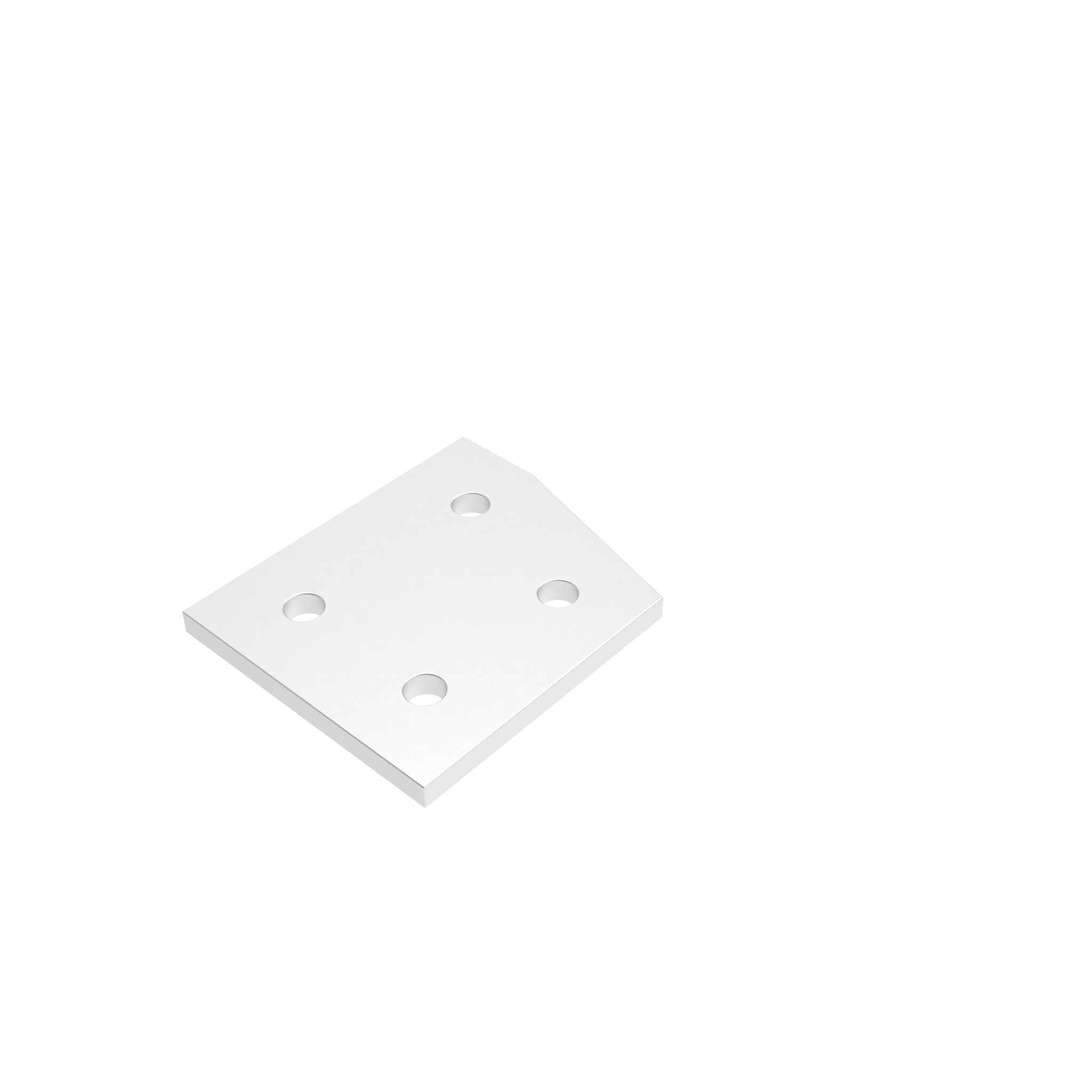

ECO Connection Plate AL 15° 4 Hole, 1 Slot Version

€0.00

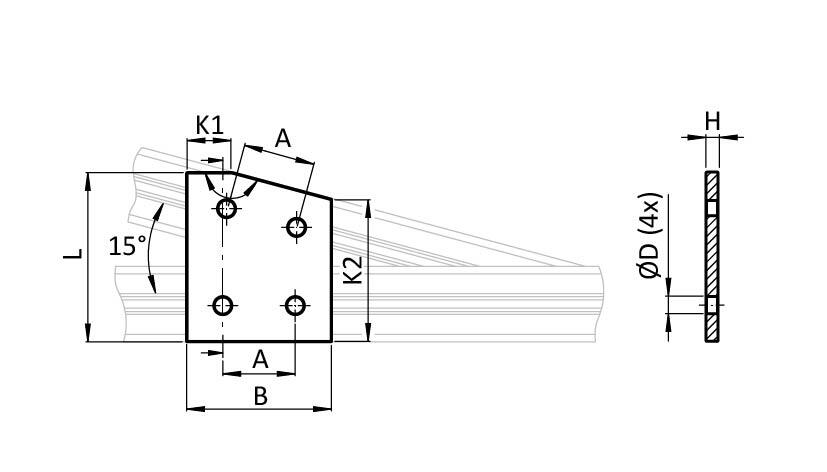

Version

76.2 / 88.9 - 3" / 3.5"

H (mm)

6.35 (0.25")

A (mm)

38.1 (1.5")

B (mm)

76.2 (3")

L (mm)

88.9 (3.5")

ØD (mm)

9.0 (0.35")

K (mm)

23.98 (0.94")

K (mm)

74.9 (2.94")

Part #: 093EVG7689

Pack Quantity: 10 pieces

Product information "ECO Connection Plate AL 15° 4 Hole, 1 Slot Version"

Delivery Countries:
North America

Description:

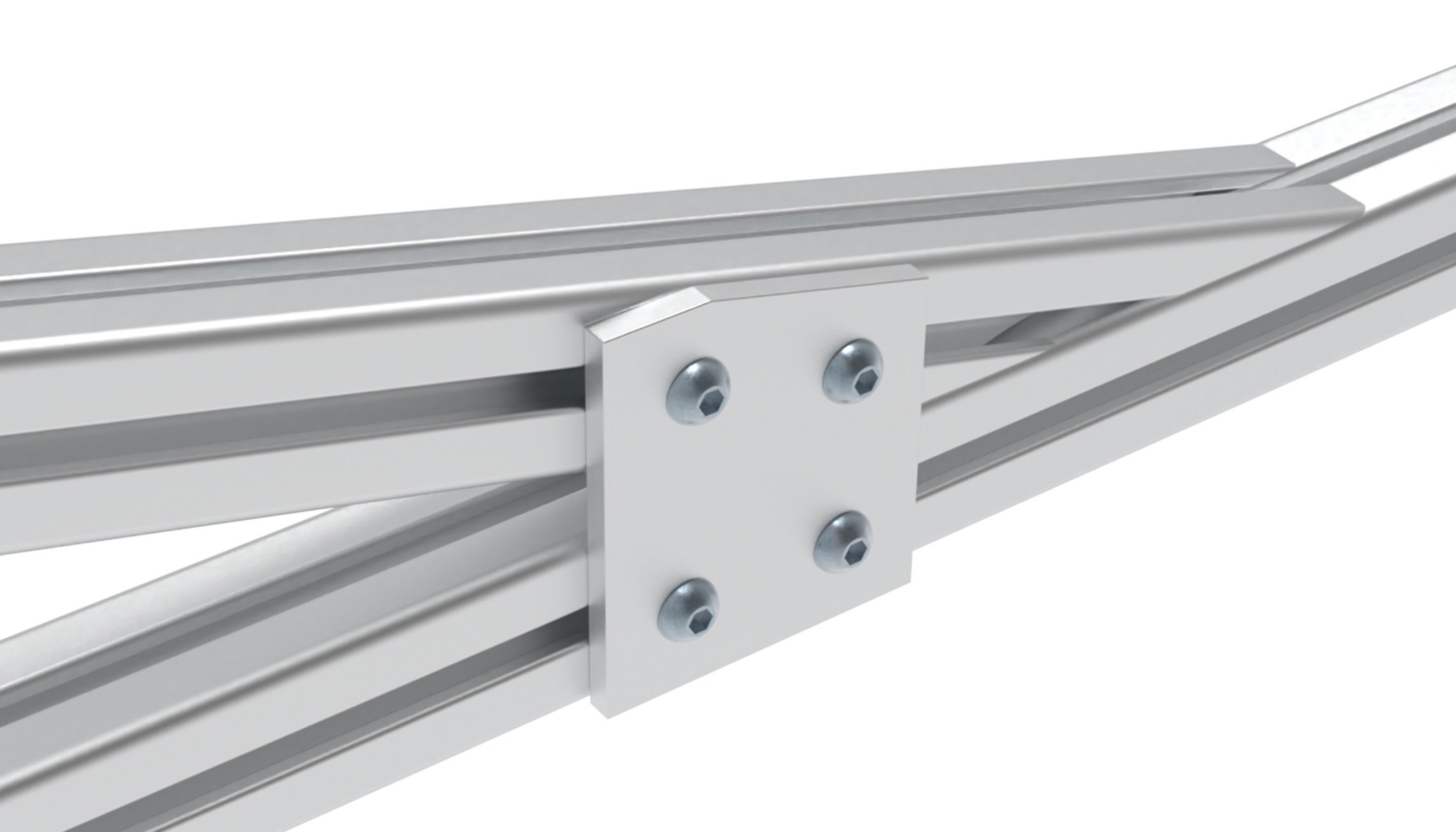

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	90.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Zolltarifnummer:	76169990990
Customs Tariff Number Export:	76169990
ERP Number:	160532

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)	K (mm)
093EVG7689	76.2 / 88.9 - 3" / 3.5"	6.35 (0.25")	38.1 (1.5")	76.2 (3")	88.9 (3.5")	9.0 (0.35")	23.98 (0.94")
