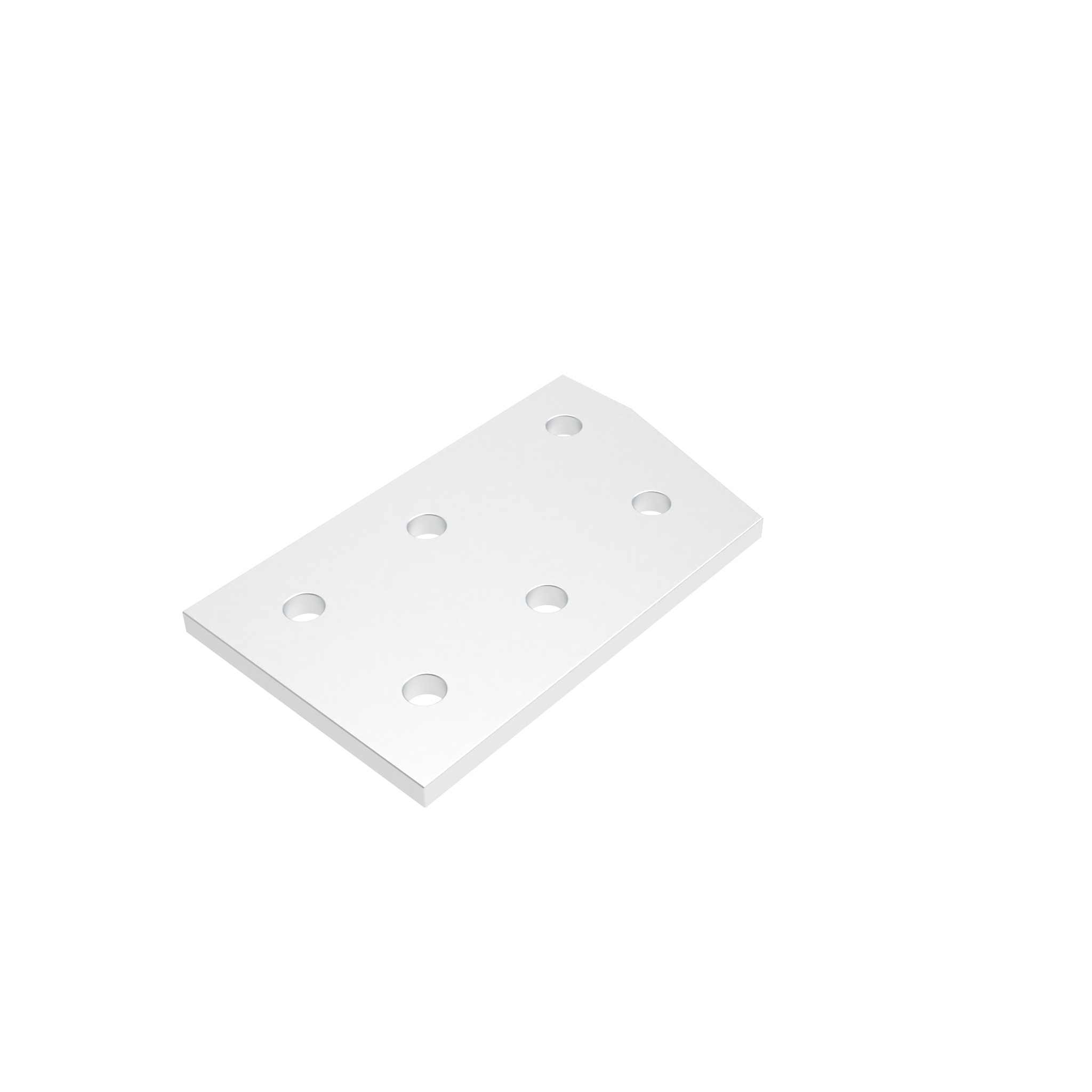

ECO Connection Plate AL 15° 6 Hole, 1 Slot x 2 Slots Version

€0.00*

Prices excl. VAT plus shipping costs

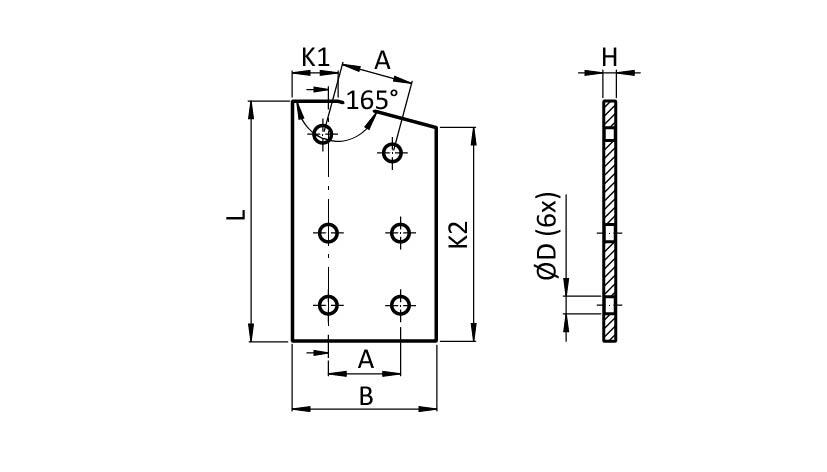

A (mm)

38.1 (1.5")

B (mm)

76.2 (3")

H (mm)

6.35 (0.25")

K (mm)

113.0 (4.44")

K (mm)

23.98 (0.94")

L (mm)

127 (5")

Version

76.2 / 127 - 3" / 5"

ØD (mm)

9.0 (0.35")

Product number: 093EVG76127

Product information "ECO Connection Plate AL 15° 6 Hole, 1 Slot x 2 Slots Version"

Delivery Countries:
North America

Description:

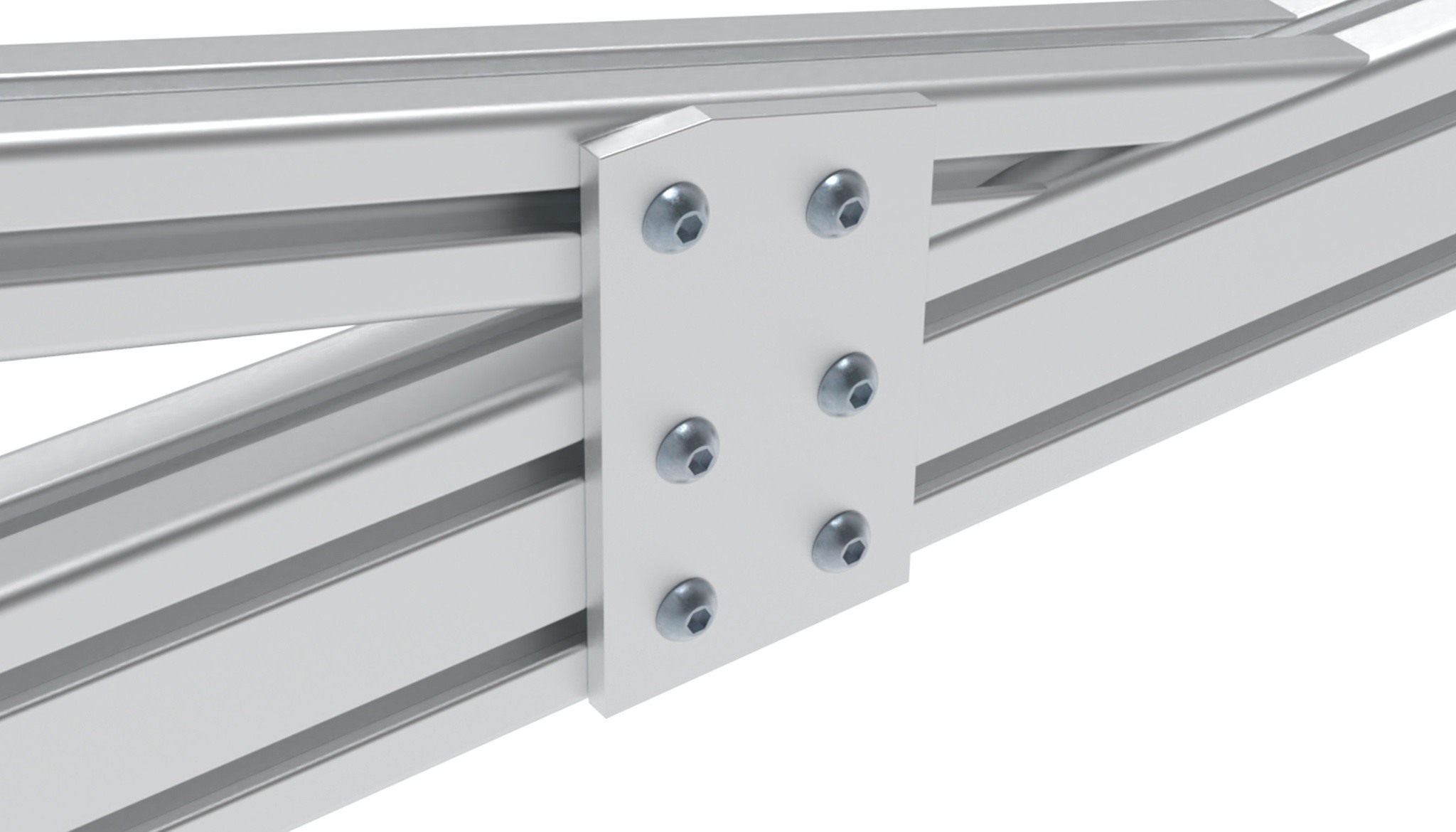

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	47.0

Variants

Product ID	K (mm)	L (mm)	A (mm)	H (mm)	B (mm)	ØD (mm)	Version
093EVG76127	23.98 (0.94")	127 (5")	38.1 (1.5")	6.35 (0.25")	76.2 (3")	9.0 (0.35")	76.2 / 127 - 3" / 5"
