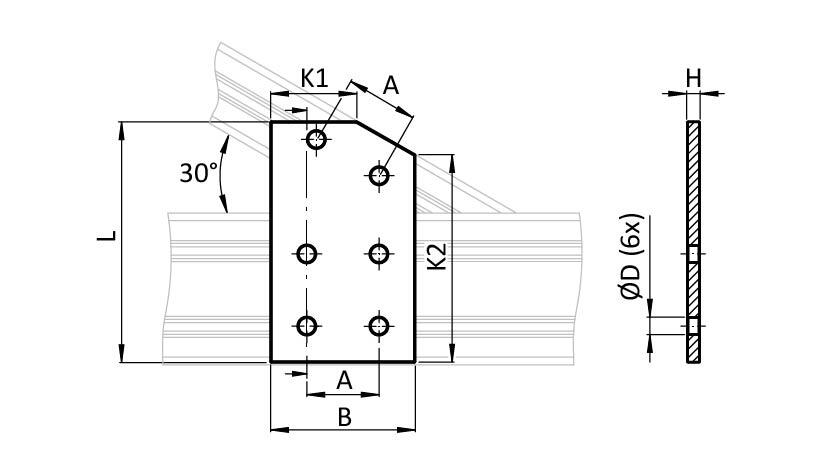

ECO Connection Plate AL 30° 6 Hole, 1 Slot x 2 Slots Version

€0.00

Version

76.2 / 127 - 3" / 5"

H (mm)

6.35 (0.25")

A (mm)

38.1 (1.5")

B (mm)

76.2 (3")

L (mm)

127 (5")

ØD (mm)

8.89 (0.35")

K (mm)

44.86 (1.76")

K (mm)

109.19 (4.29")

Part #: 093EVG76127S01

Pack Quantity: 10 pieces

Description:

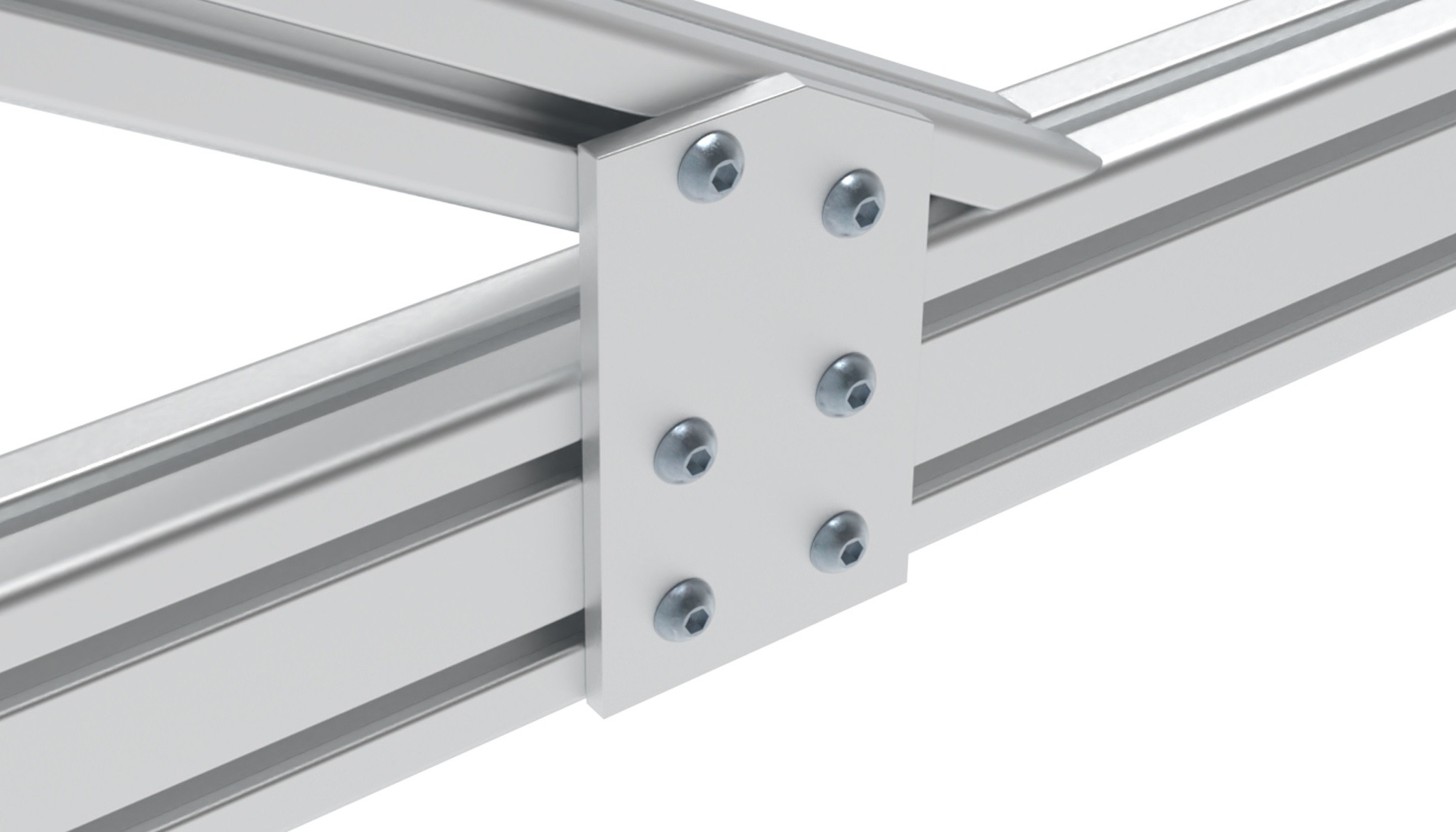

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Delivery Countries:
North America

Variants

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)	K (mm)
093EVG76127S01	76.2 / 127 - 3" / 5"	6.35 (0.25")	38.1 (1.5")	76.2 (3")	127 (5")	8.89 (0.35")	109.19 (4.29")

Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
