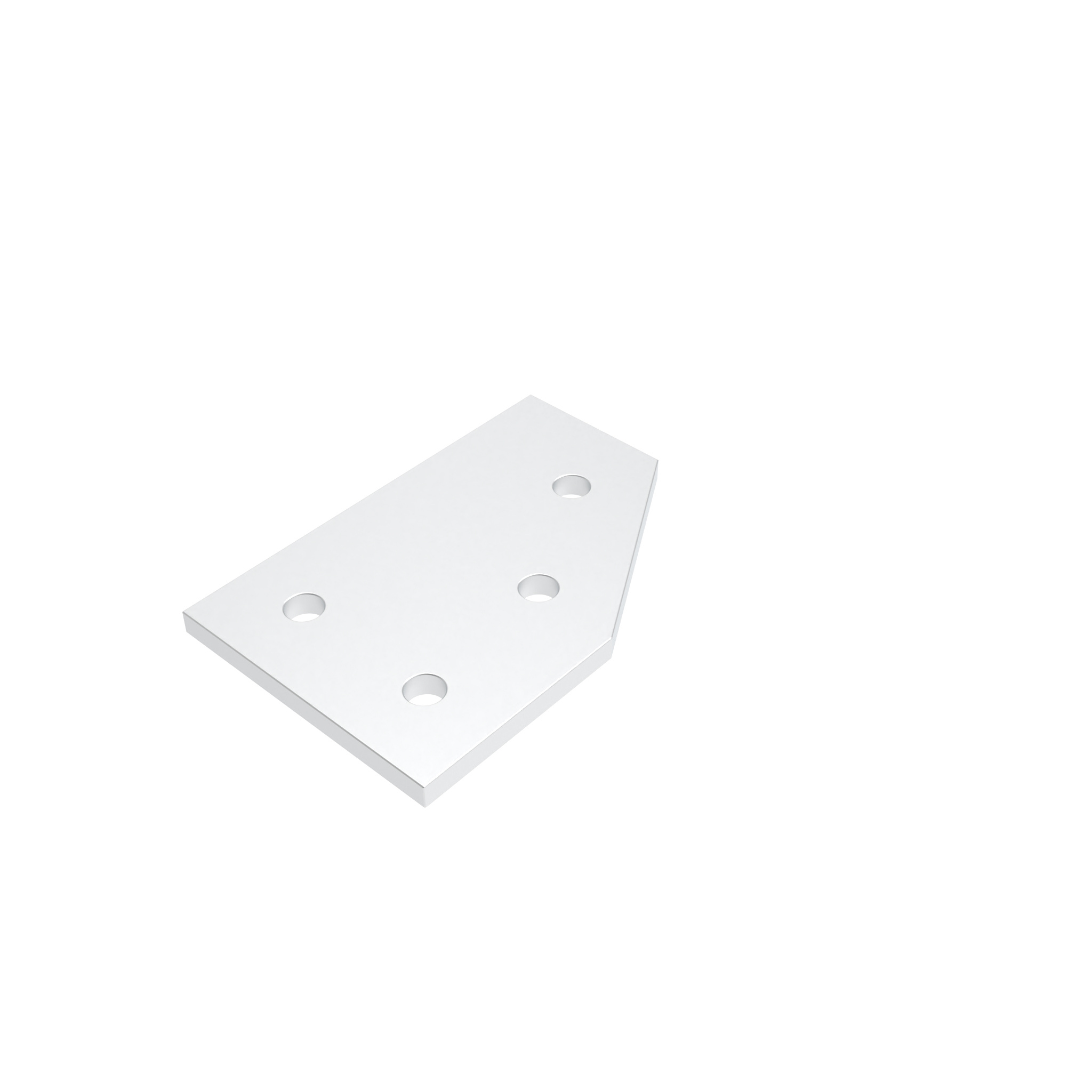

ECO Connection Plate AL 60° 4 Hole, 1 Slot Version

€0.00*

Prices excl. VAT plus shipping costs

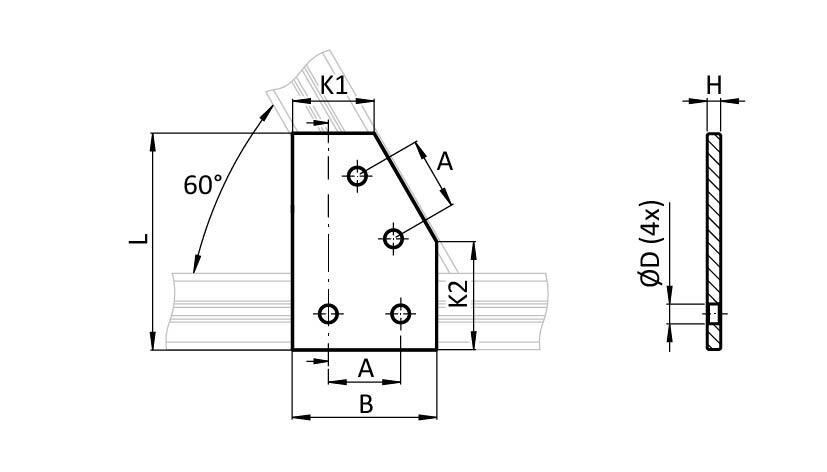

A (mm)

38.1 (1.5")

B (mm)

76.2 (3")

H (mm)

6.35 (0.25")

K (mm)

43.21 (1.7")

K (mm)

57.15 (2.25")

L (mm)

114.3 (4.5")

Version

76.2 / 114.3 - 3" / 4.5"

ØD (mm)

9.0 (0.35")

Product number: 093EVG76114S01

Product information "ECO Connection Plate AL 60° 4 Hole, 1 Slot Version"

Delivery Countries:
North America

Description:

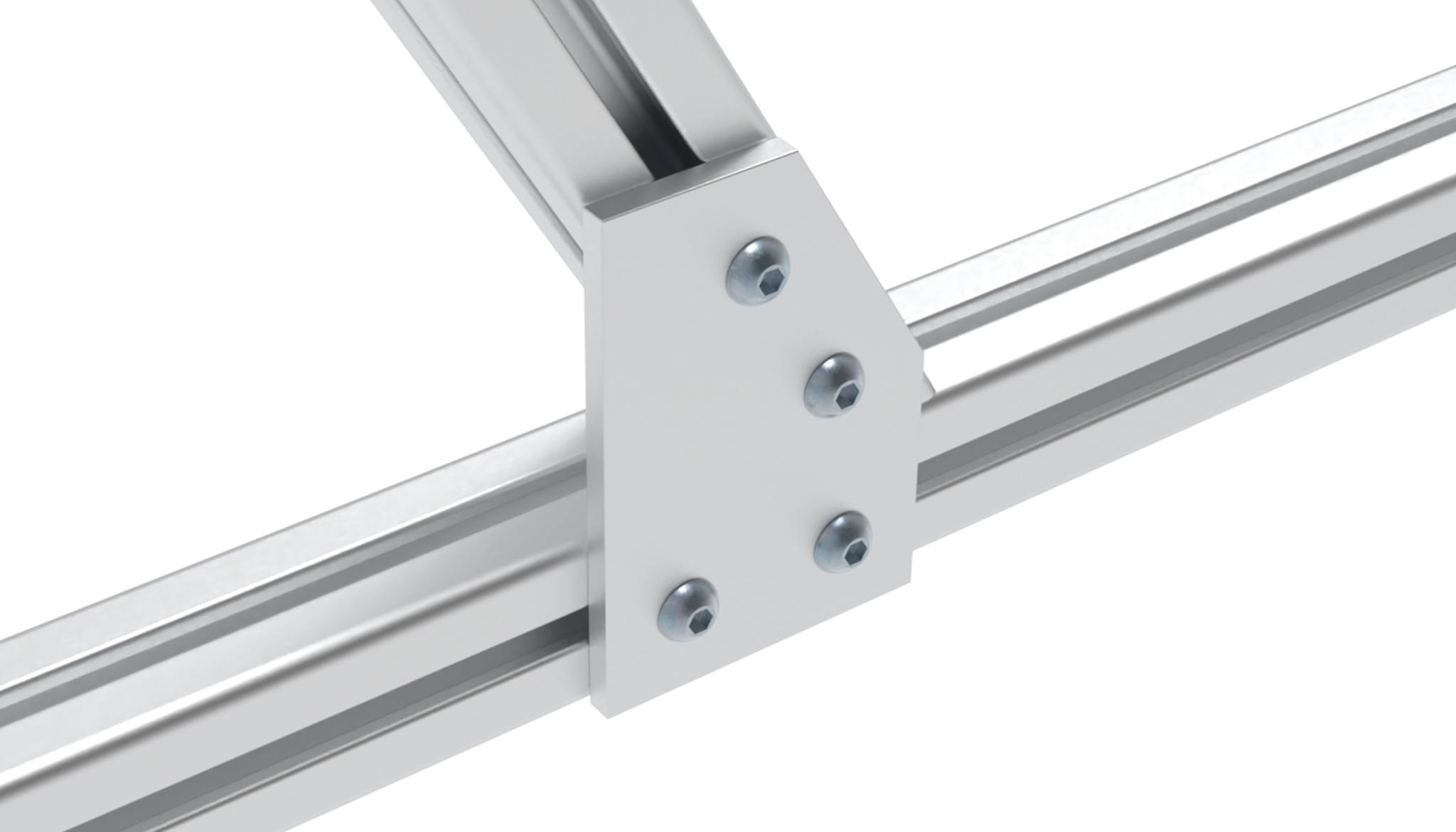

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	115.0

Variants

Product ID	A (mm)	K (mm)	L (mm)	H (mm)	B (mm)	Version	ØD (mm)
093EVG76114S01	38.1 (1.5")	57.15 (2.25")	114.3 (4.5")	6.35 (0.25")	76.2 (3")	76.2 / 114.3 - 3" / 4.5"	9.0 (0.35")
