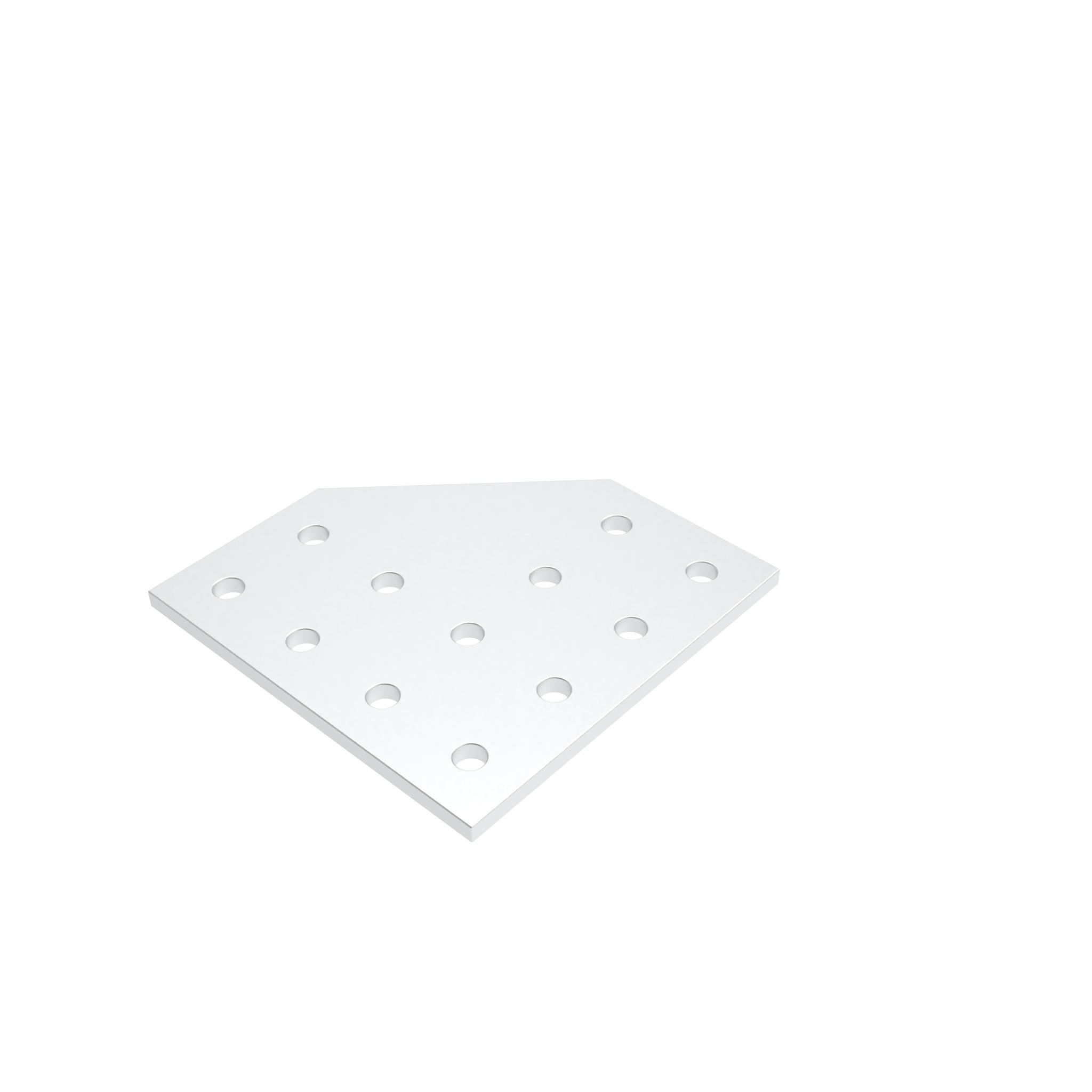

ECO Connection Plate AL L 12 Hole, 2 Slots Version

Product information "ECO Connection Plate AL L 12 Hole, 2 Slots Version"

Delivery Countries:
North America

Description:

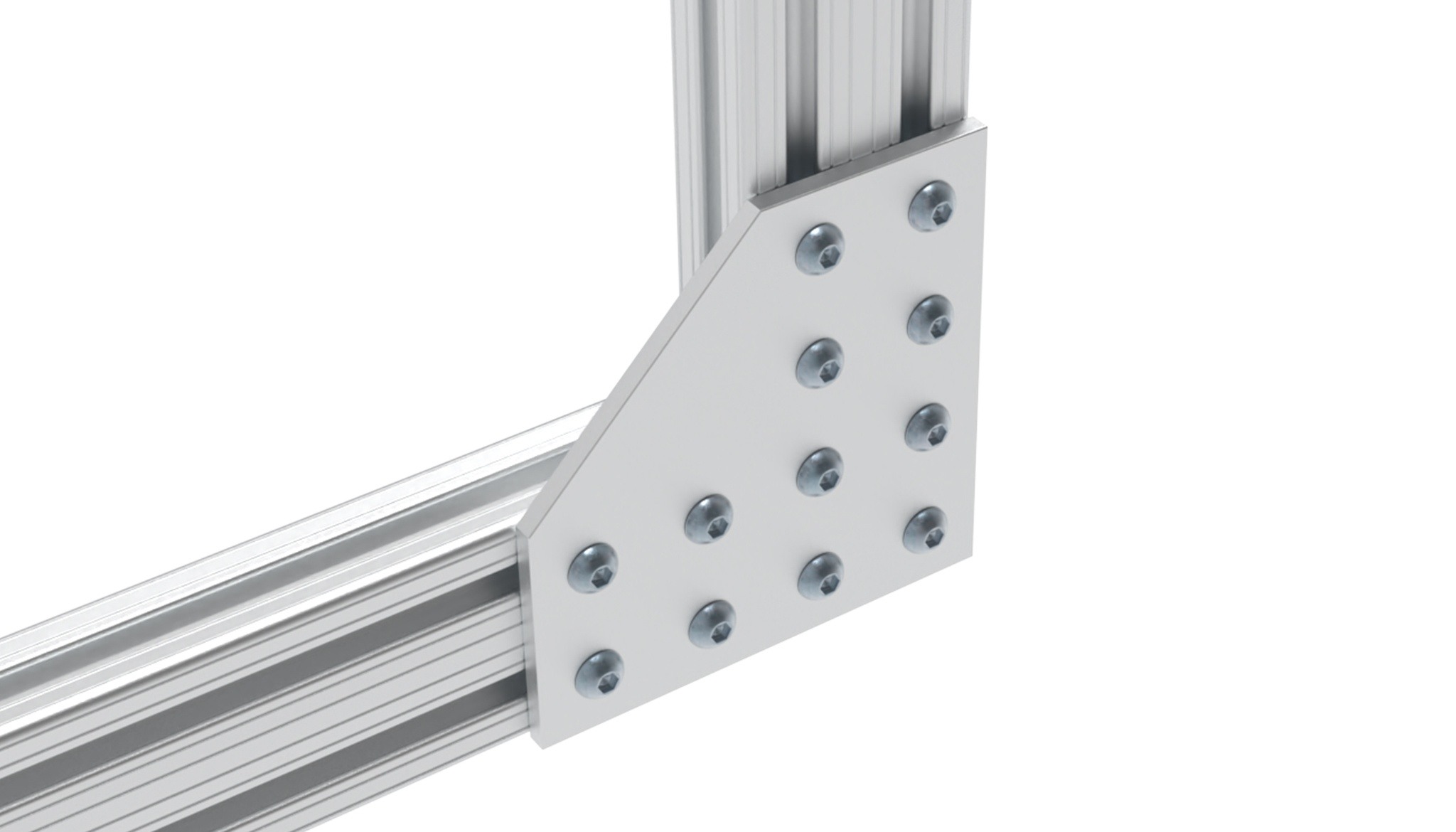

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 86.0

Variants

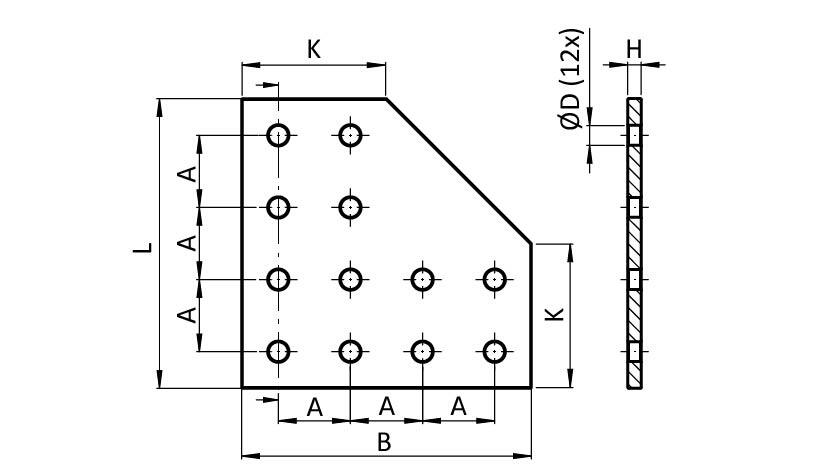

Product ID Version ØD (mm) A (mm) H (mm) L (mm) B (mm) K (mm)
093EVL102102D 102 / 102 - 4" / 4" 7.0 (0.27") 25.4 (1") 4.8 (0.19") 101.6 (4") 101.6 (4") 51.0 (2.00")
093EVL152152D 152 / 152 - 5.98" / 5.98" 9.0 (0.35") 38.1 (1.5") 6.35 (0.25") 152.4 (6") 152.4 (6") 71.0 (2.8")
