ECO Connection Plate AL L 4 Hole, 1 Slot Version

Product information "ECO Connection Plate AL L 4 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

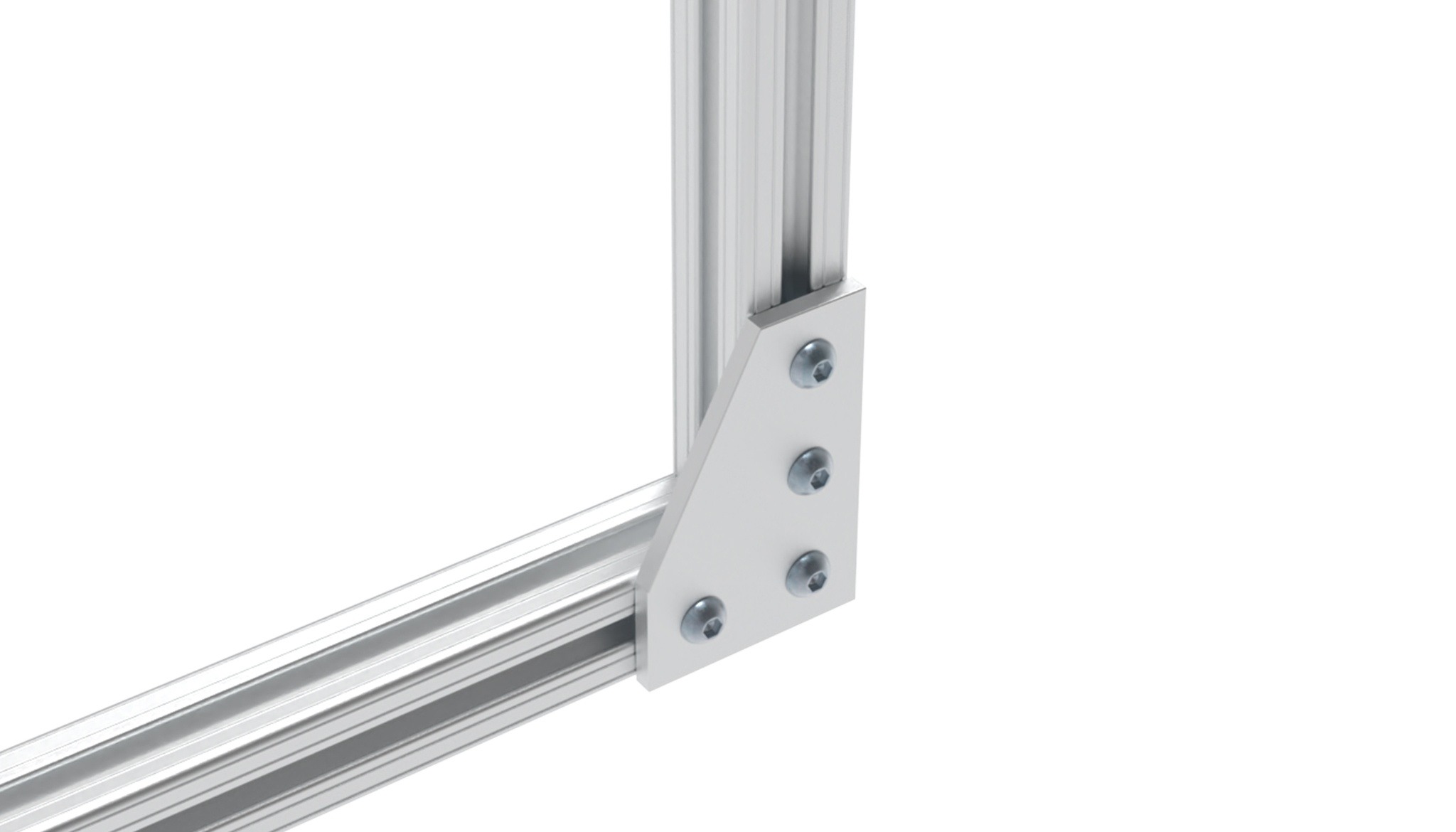

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 114.0

Variants

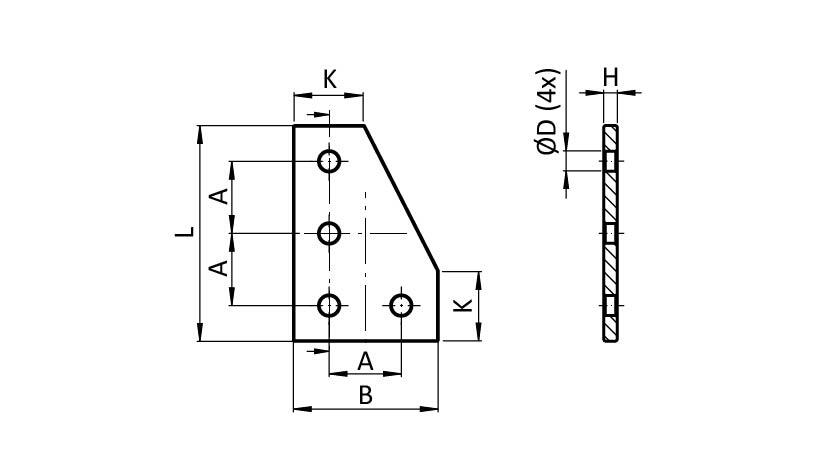

Product ID Fig. Color Surface ØD (mm) A (mm) K (mm) H (mm) B (mm) Version L (mm)
093EVL5176 Anodized 7.0 (0.27") 25.4 (1") 25.0 (0.98") 4.8 (0.19") 50.8 (2") 50.8 / 76.2 - 2" / 3" 76.2 (3")
093EVL5176S Black Powder coated 7.0 (0.27") 25.4 (1") 25.0 (0.98") 4.8 (0.19") 50.8 (2") 50.8 / 76.2 - 2" / 3" 76.2 (3")
093EVL76114 Anodized 9.0 (0.35") 38.1 (1.5") 38.0 (1.49") 6.35 (0.25") 76.2 (3") 76.2 / 114.3 - 3" / 4.5" 114.3 (4.5")
093EVL76114S Black Powder coated 9.0 (0.35") 38.1 (1.5") 38.0 (1.49") 6.35 (0.25") 76.2 (3") 76.2 / 114.3 - 3" / 4.5" 114.3 (4.5")
