ECO Connection Plate AL L 5 Hole, 1 Slot Version Light

Product information "ECO Connection Plate AL L 5 Hole, 1 Slot Version Light"

Color:
Black

Delivery Countries:
North America

Description:

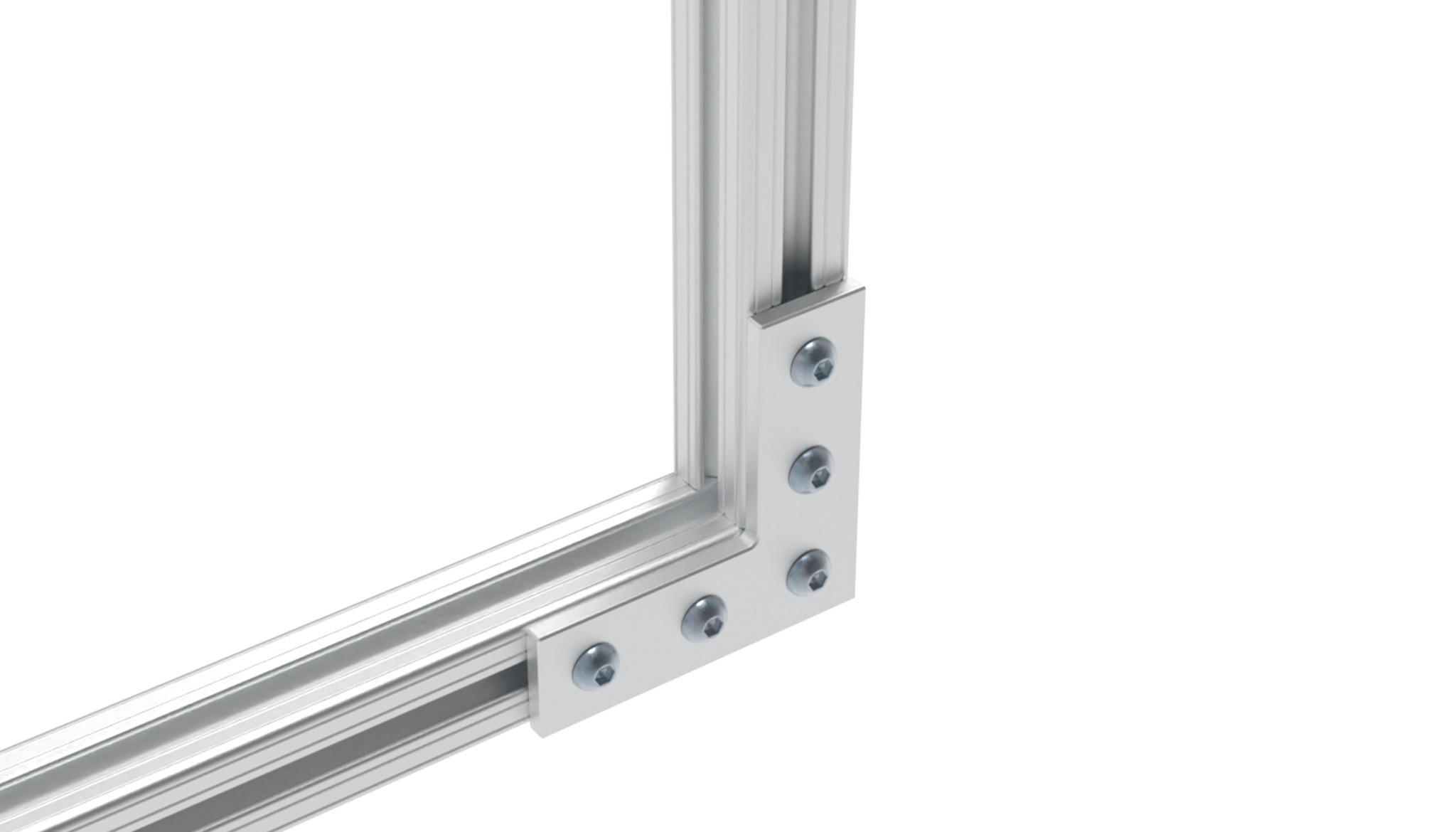

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 15.4

Variants

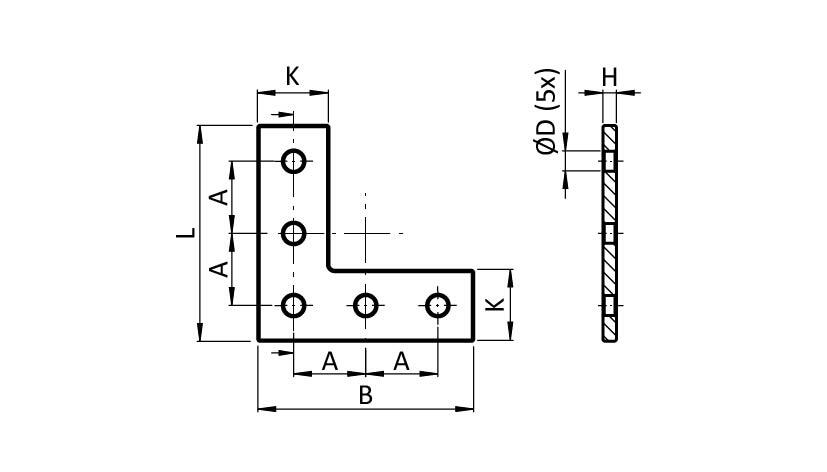

Product ID Fig. Color Surface A (mm) L (mm) H (mm) Version K (mm) ØD (mm) B (mm)
093EVL114114S02 Anodized 38.1 (1.5") 114.3 (4.5") 6.35 (0.25") 114.3 / 114.3 - 4.5" / 4.5" 38.0 (1.49") 9.0 (0.35") 114.3 (4.5")
093EVL114114S02S Black Powder coated 38.1 (1.5") 114.3 (4.5") 6.35 (0.25") 114.3 / 114.3 - 4.5" / 4.5" 38.0 (1.49") 9.0 (0.35") 114.3 (4.5")
093EVL7676S02 Anodized 25.4 (1") 76.2 (3") 4.8 (0.19") 76.2 / 76.2 - 3" / 3" 25.0 (0.98") 7.0 (0.27") 76.2 (3")

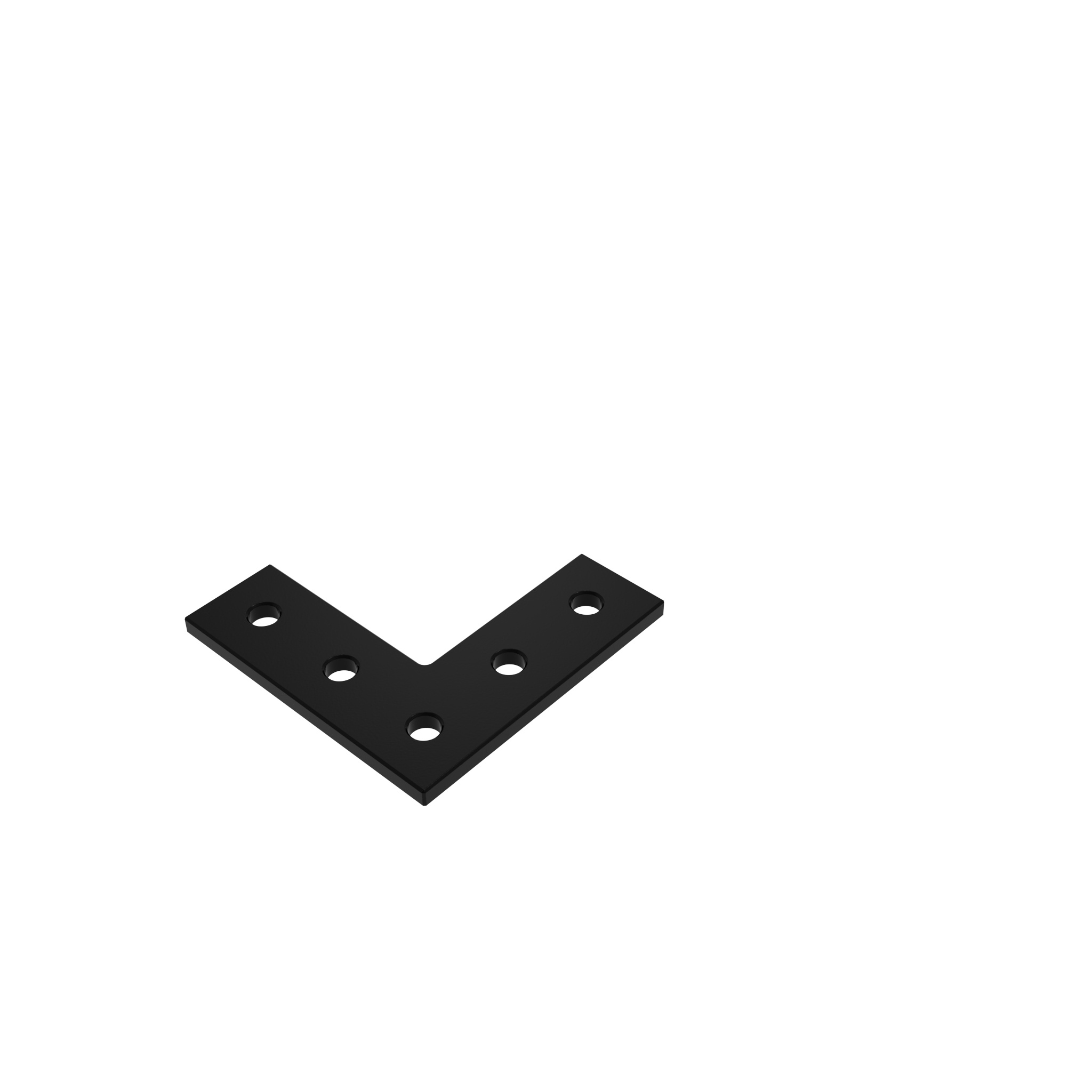

093EVL7676S02S Black Powder coated 25.4 (1") 76.2 (3") 4.8 (0.19") 76.2 / 76.2 - 3" / 3" 25.0 (0.98") 7.0 (0.27") 76.2 (3")
