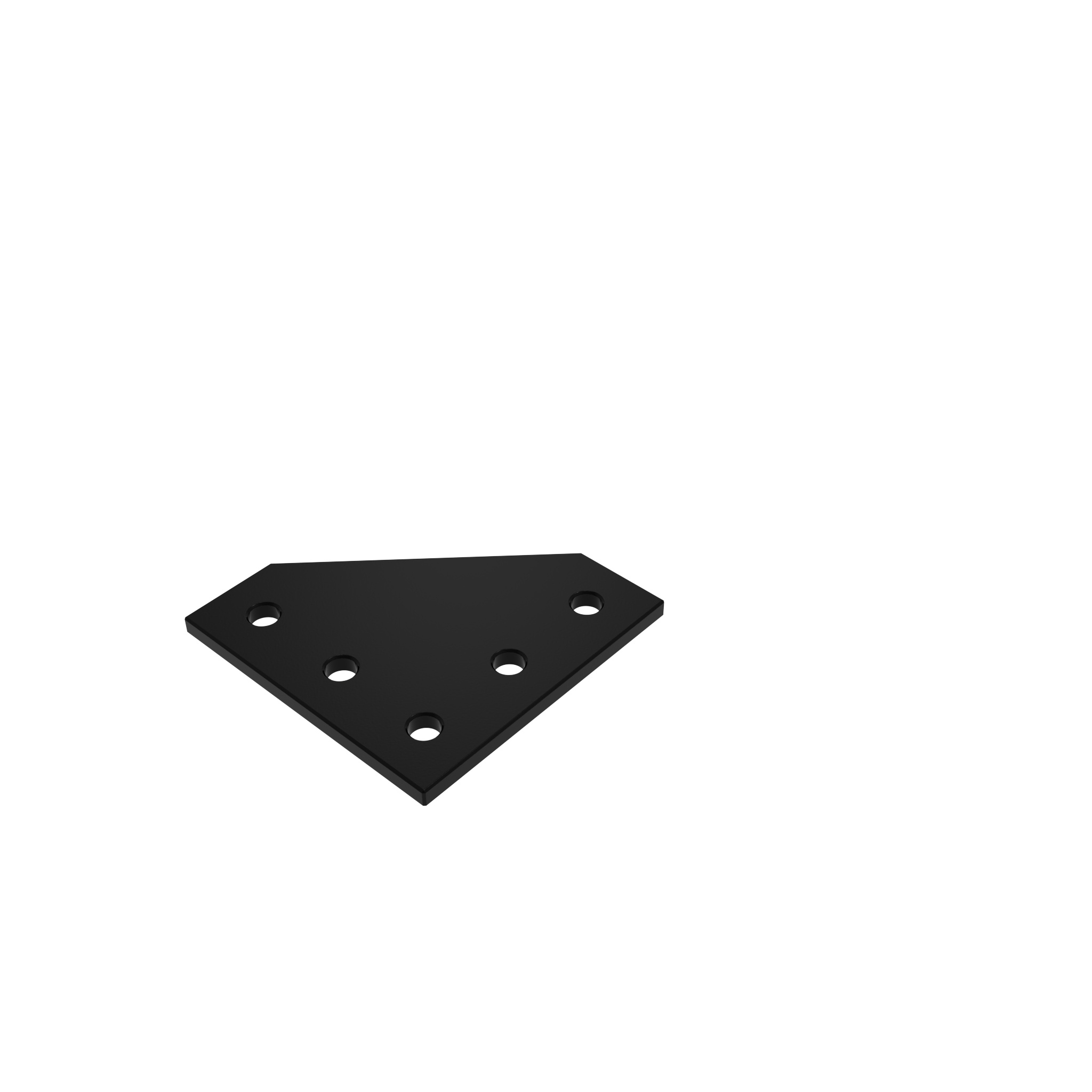

ECO Connection Plate AL L 5 Hole, 1 Slot Version
Product number:
093EVL7676S
Product information "ECO Connection Plate AL L 5 Hole, 1 Slot Version"
Color:
Black
Delivery Countries:
North America
Description:

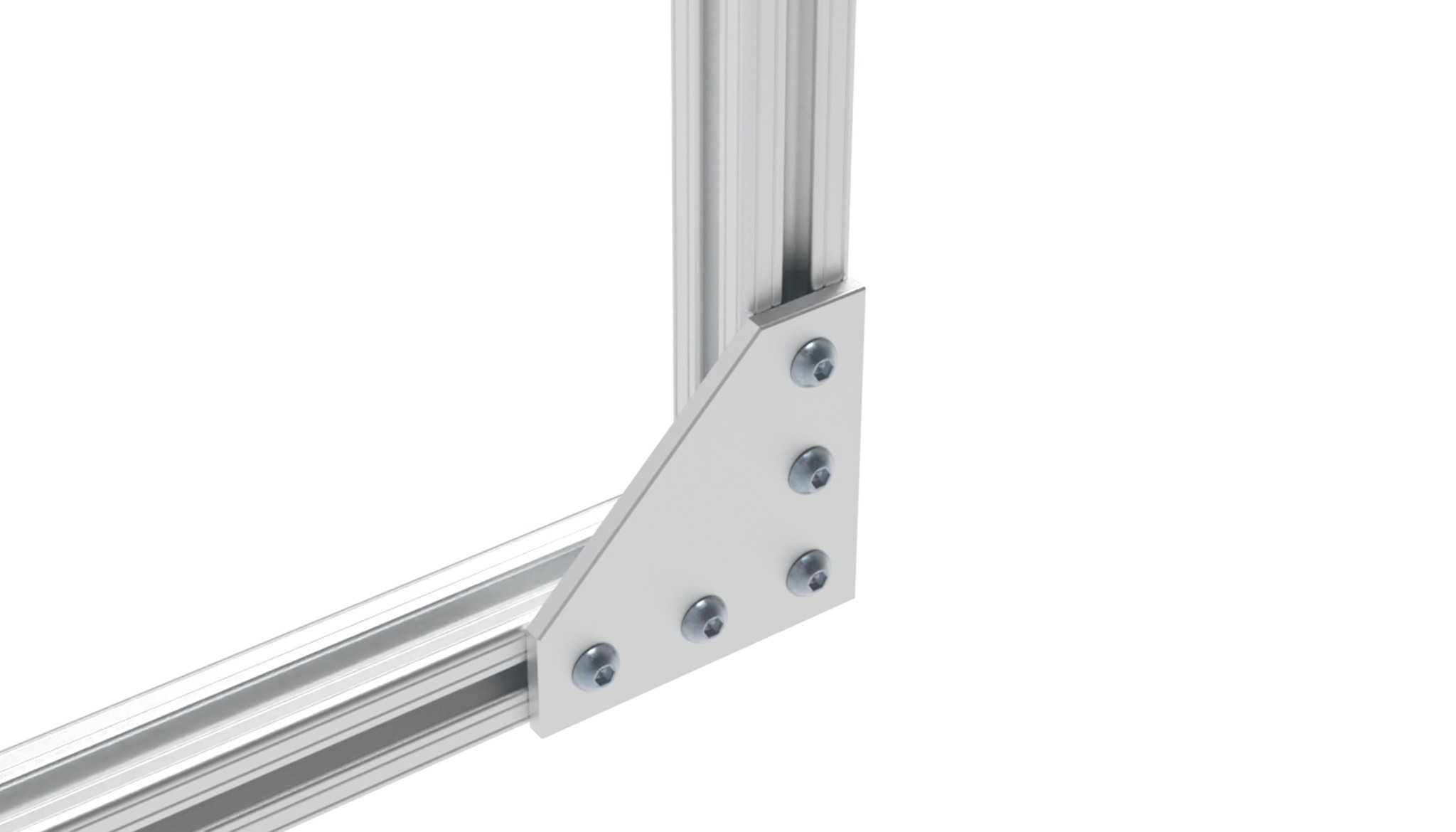

To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Black
Delivery Countries:
North America
Description:
To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Model: | Aluminum |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 56.0 |
Variants

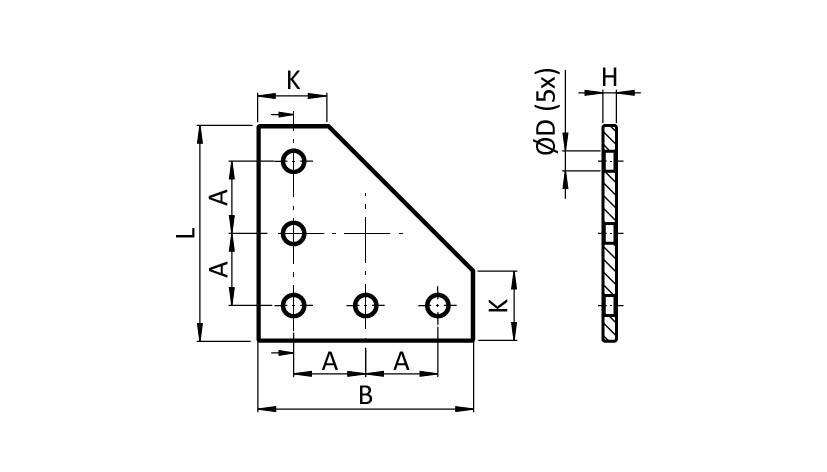

Product ID | Fig. | Color | Surface | Version | A (mm) | L (mm) | H (mm) | K (mm) | ØD (mm) | B (mm) |
---|---|---|---|---|---|---|---|---|---|---|
093EVL114114 | ② | Anodized | 114 / 114 - 4.4" / 4.4" | 38.1 (1.5") | 114.3 (4.5") | 6.35 (0.25") | 38.0 (1.49") | 9.0 (0.35") | 114.3 (4.5") | |
093EVL114114S | ① | Black | Powder coated | 114 / 114 - 4.4" / 4.4" | 38.1 (1.5") | 114.3 (4.5") | 6.35 (0.25") | 38.0 (1.49") | 9.0 (0.35") | 114.3 (4.5") |
093EVL7676 | ② | Anodized | 76.2 / 76.2 - 3" / 3" | 25.4 (1") | 76.2 (3") | 4.8 (0.19") | 25.0 (0.98") | 7.0 (0.27") | 76.2 (3") | |
093EVL7676S | ① | Black | Powder coated | 76.2 / 76.2 - 3" / 3" | 25.4 (1") | 76.2 (3") | 4.8 (0.19") | 25.0 (0.98") | 7.0 (0.27") | 76.2 (3") |
