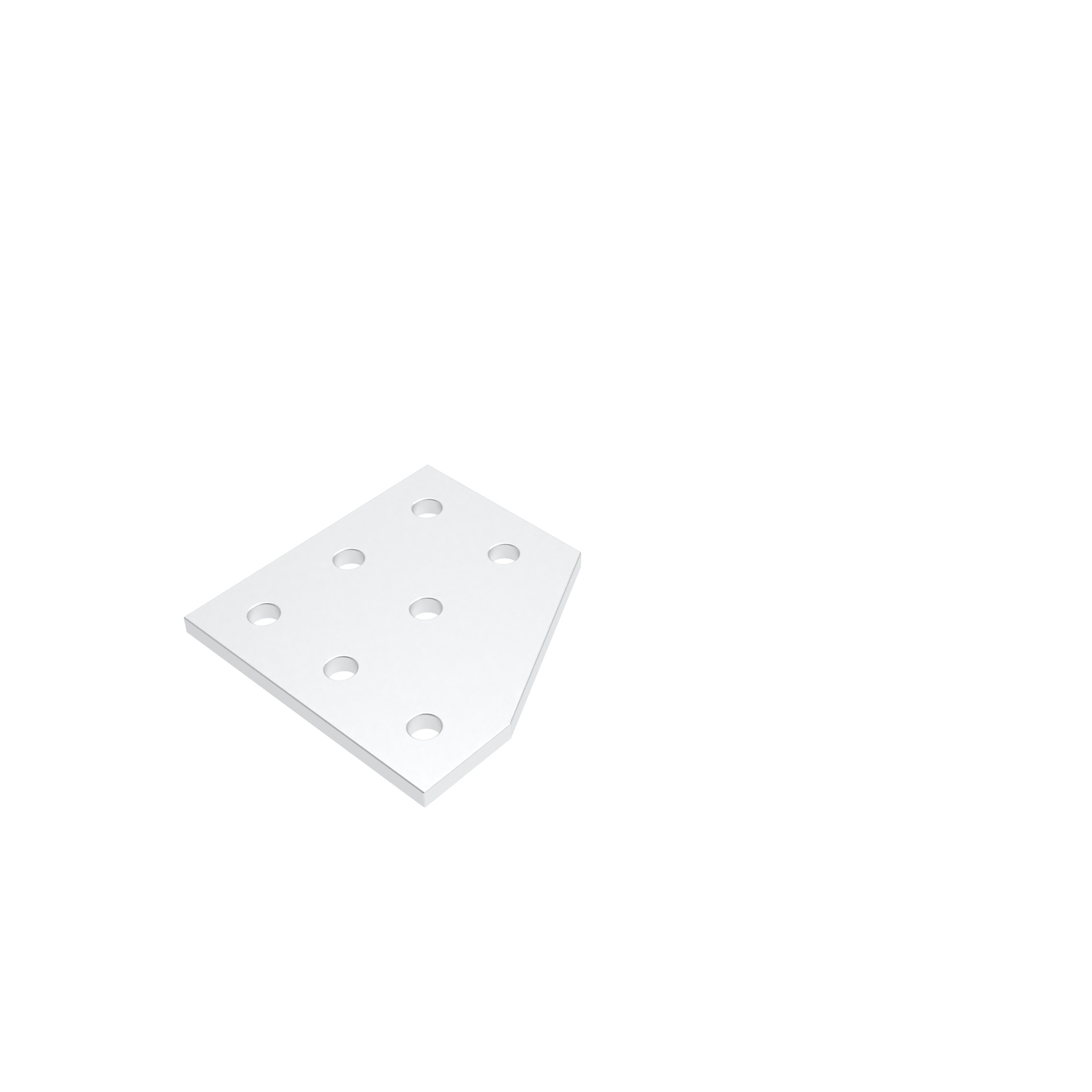

ECO Connection Plate AL L 7 Hole, 1 Slot x 2 Slots Version

Description:

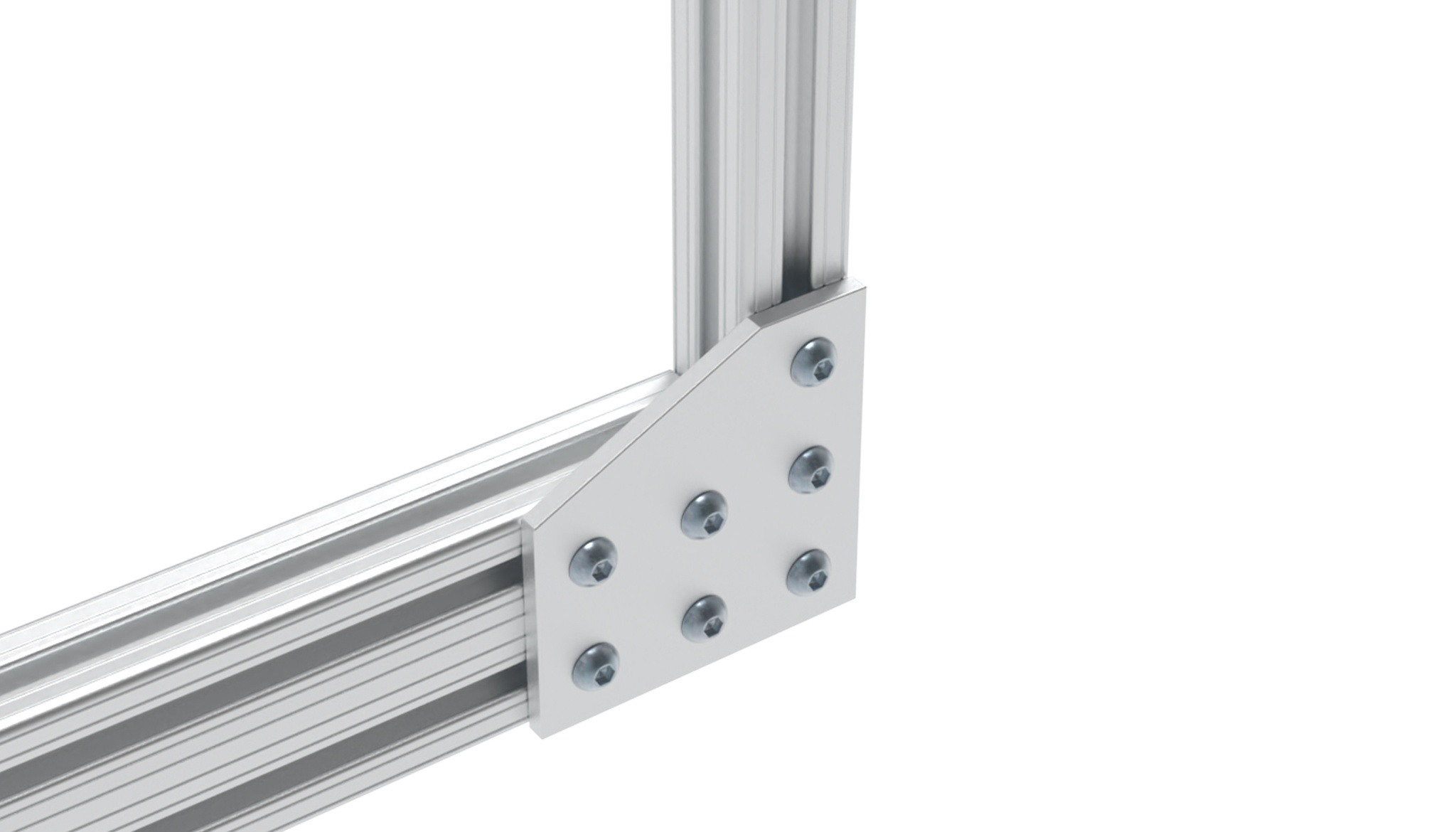

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Delivery Countries:
North America

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	80.0
ERP Number:	150578

Variants

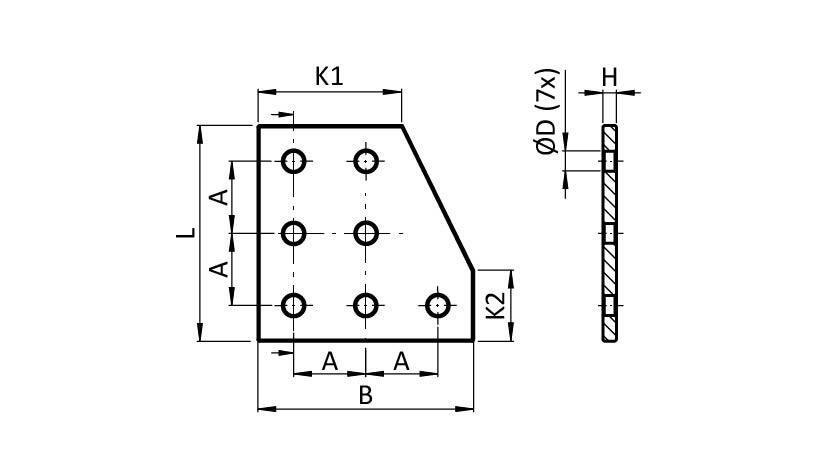

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)	K (mm)	CAD
093EVL7676S01	76.2 / 76.2 - 3" / 3"	4.8 (0.19")	25.4 (1")	76.2 (3")	76.2 (3")	7.0 (0.27")	51.0 (2")
093EVL114114S01	114 / 114 - 4.48" / 4.48"	6.35 (0.25")	38.1 (1.5")	114.3 (4.5")	114.3 (4.5")	9.0 (0.35")	38.0 (1.49")

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 76169990990
Customs Tariff Number Export: 76169990

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate

Tags

Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
