ECO Connection Plate AL T 12 Hole, 2 Slots Version

Product information "ECO Connection Plate AL T 12 Hole, 2 Slots Version"

Color:
Black

Delivery Countries:
North America

Description:

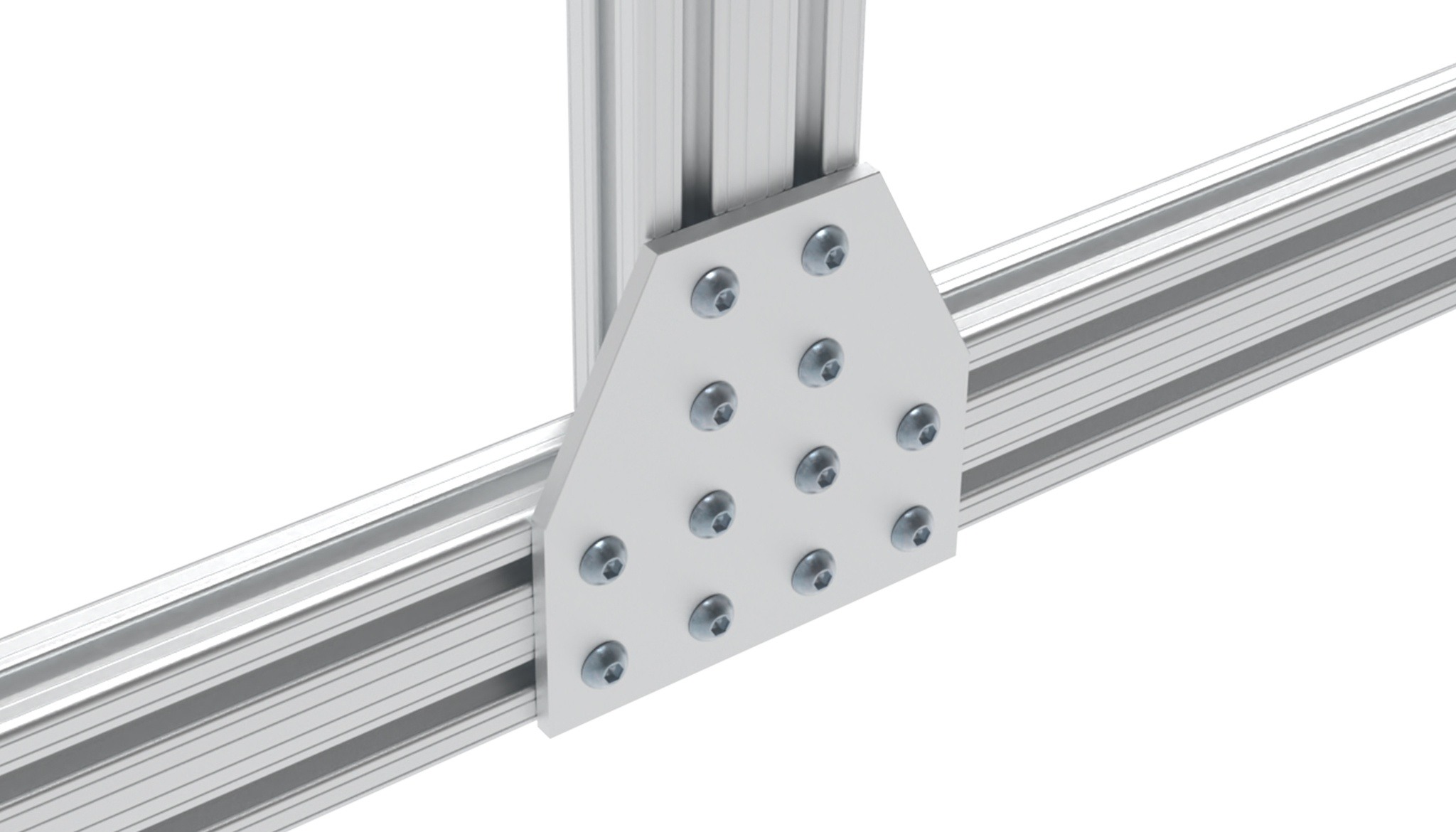

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	335.0

Variants

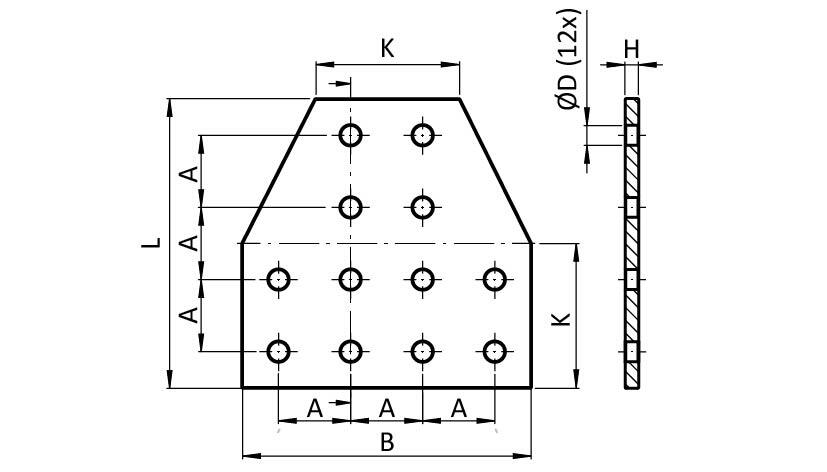

Product ID	Fig.	Color	Surface	Version	ØD (mm)	A (mm)	H (mm)	L (mm)	B (mm)	K (mm)
093EVT102102D	②		Anodized	102 / 102 - 4" / 4"	7.0 (0.27")	25.4 (1")	4.8 (0.19")	101.6 (4")	101.6 (4")	51.0 (2.00")
093EVT102102DS	①	Black	Powder coated	102 / 102 - 4" / 4"	7.0 (0.27")	25.4 (1")	4.8 (0.19")	101.6 (4")	101.6 (4")	51.0 (2.00")
093EVT152152D	②		Anodized	152 / 152 - 5.98" / 5.98"	9.0 (0.35")	38.1 (1.5")	6.35 (0.25")	152.4 (6")	152.4 (6")	71.0 (2.8")
093EVT152152DS	①	Black	Powder coated	152 / 152 - 5.98" / 5.98"	9.0 (0.35")	38.1 (1.5")	6.35 (0.25")	152.4 (6")	152.4 (6")	71.0 (2.8")
