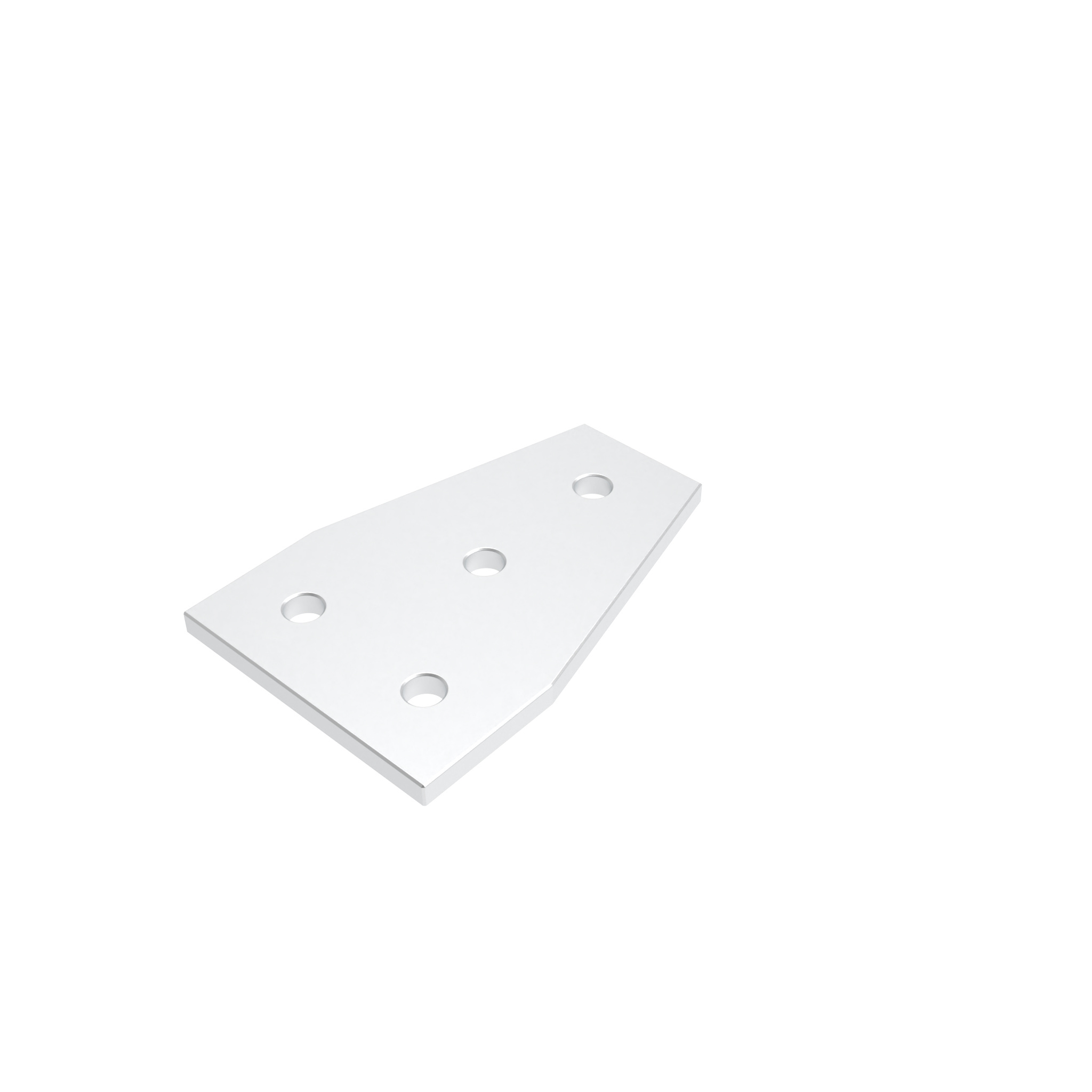

ECO Connection Plate AL T 4 Hole, 1 Slot Version

Product information "ECO Connection Plate AL T 4 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

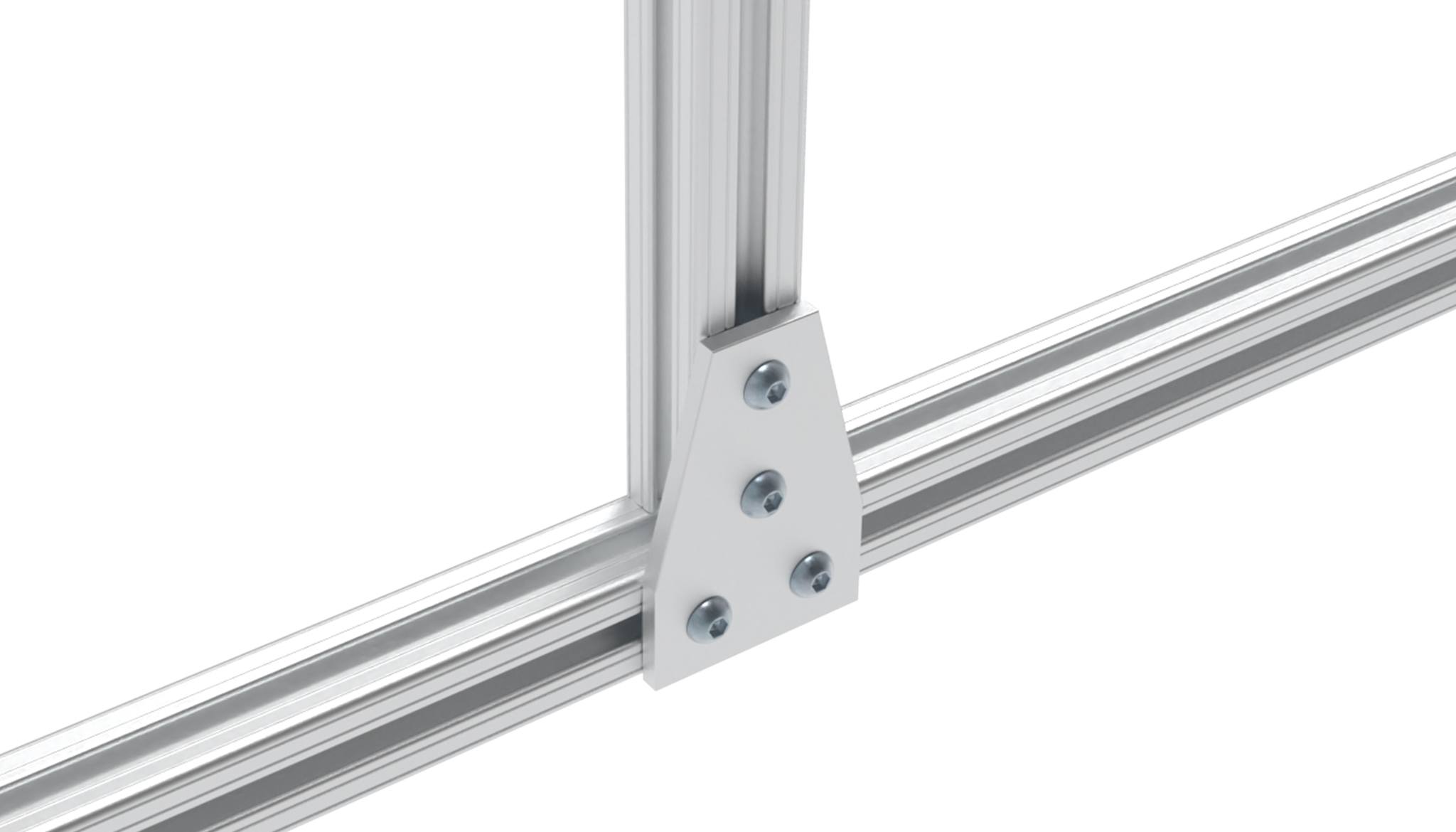

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	116.0

Variants

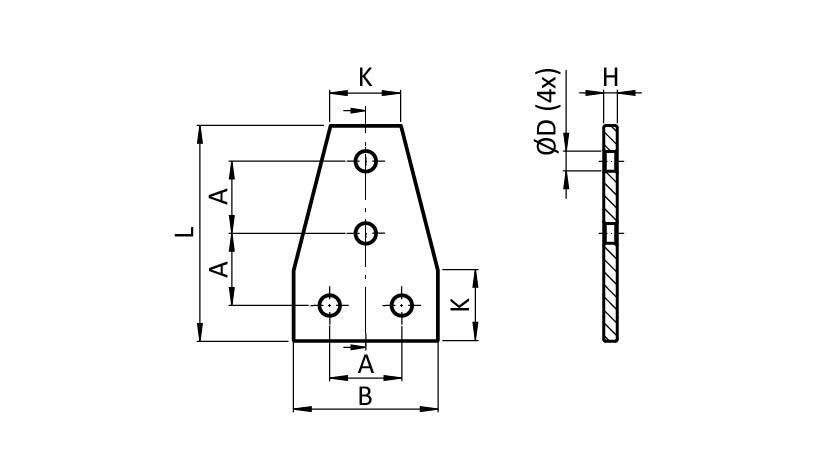

Product ID	Fig.	Color	Surface	ØD (mm)	A (mm)	K (mm)	H (mm)	B (mm)	Version	L (mm)
093EVT5176	②		Anodized	7.0 (0.27")	25.4 (1")	25.0 (0.98")	4.8 (0.19")	50.8 (2")	50.8 / 76.2 - 2" / 3"	76.2 (3")
093EVT5176S	①	Black	Powder coated	7.0 (0.27")	25.4 (1")	25.0 (0.98")	4.8 (0.19")	50.8 (2")	50.8 / 76.2 - 2" / 3"	76.2 (3")
093EVT76114	②		Anodized	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	76.2 (3")	76.2 / 114.3 - 3" / 4.5"	114.3 (4.5")
093EVT76114S	①	Black	Powder coated	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	76.2 (3")	76.2 / 114.3 - 3" / 4.5"	114.3 (4.5")
