ECO Connection Plate AL T 5 Hole, 1 Slot Version Light
Product number:
093EVT7676S01
Product information "ECO Connection Plate AL T 5 Hole, 1 Slot Version Light"
Color:
Black
Delivery Countries:
North America
Description:

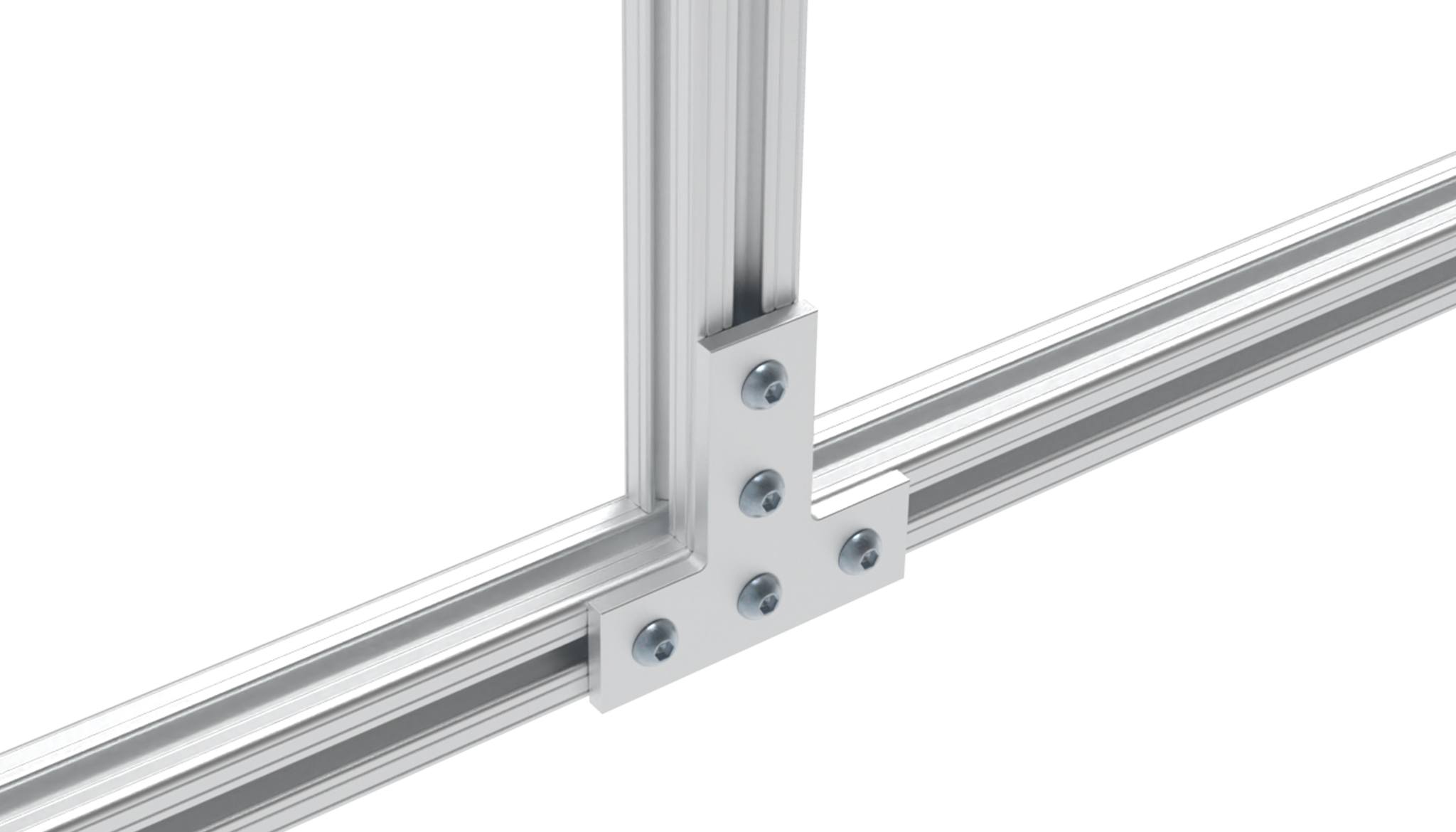

To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Black
Delivery Countries:
North America
Description:
To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Model: | Aluminum |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 43.0 |
Variants

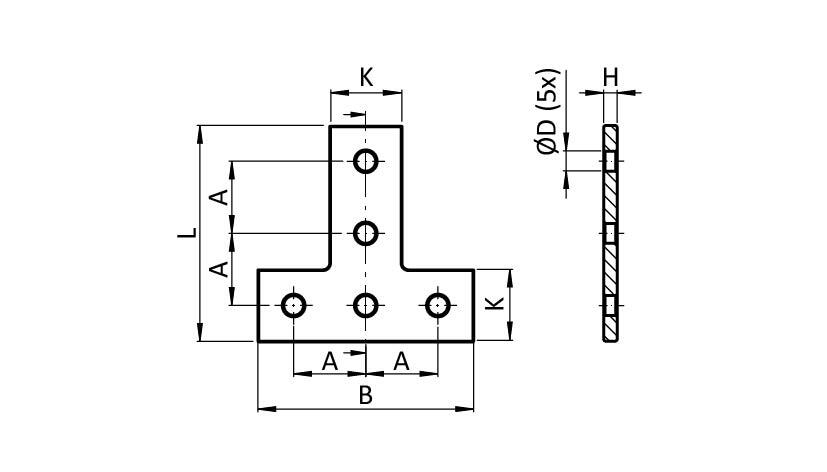

Product ID | Fig. | Color | Surface | A (mm) | L (mm) | H (mm) | Version | K (mm) | ØD (mm) | B (mm) |
---|---|---|---|---|---|---|---|---|---|---|
093EVT114114S01 | ② | Anodized | 38.1 (1.5") | 114.3 (4.5") | 6.35 (0.25") | 114 / 114 - 4.48" / 4.48" | 38.0 (1.49") | 9.0 (0.35") | 114.3 (4.5") | |
093EVT114114S01S | ① | Black | Powder coated | 38.1 (1.5") | 114.3 (4.5") | 6.35 (0.25") | 114 / 114 - 4.48" / 4.48" | 38.0 (1.49") | 9.0 (0.35") | 114.3 (4.5") |
093EVT7676S01 | ② | Anodized | 25.4 (1") | 76.2 (3") | 4.8 (0.19") | 76.2 / 76.2 - 3" / 3" | 25.0 (0.98") | 7.0 (0.27") | 76.2 (3") | |
093EVT7676S01S | ① | Black | Powder coated | 25.4 (1") | 76.2 (3") | 4.8 (0.19") | 76.2 / 76.2 - 3" / 3" | 25.0 (0.98") | 7.0 (0.27") | 76.2 (3") |
