ECO Connection Plate AL T 6 Hole, 1 Slot Version

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

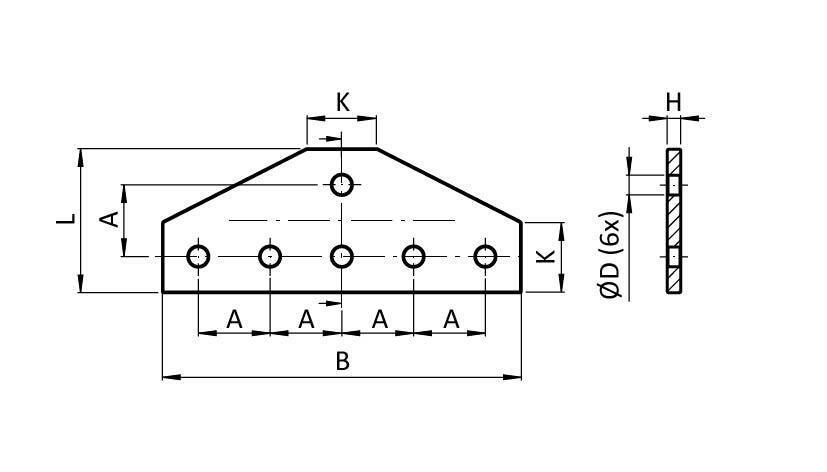

A (mm)
B (mm)
H (mm)
K (mm)
L (mm)
Version
ØD (mm)
Part #: 093EVT76190

Product information "ECO Connection Plate AL T 6 Hole, 1 Slot Version"

Delivery Countries:
North America

Description:

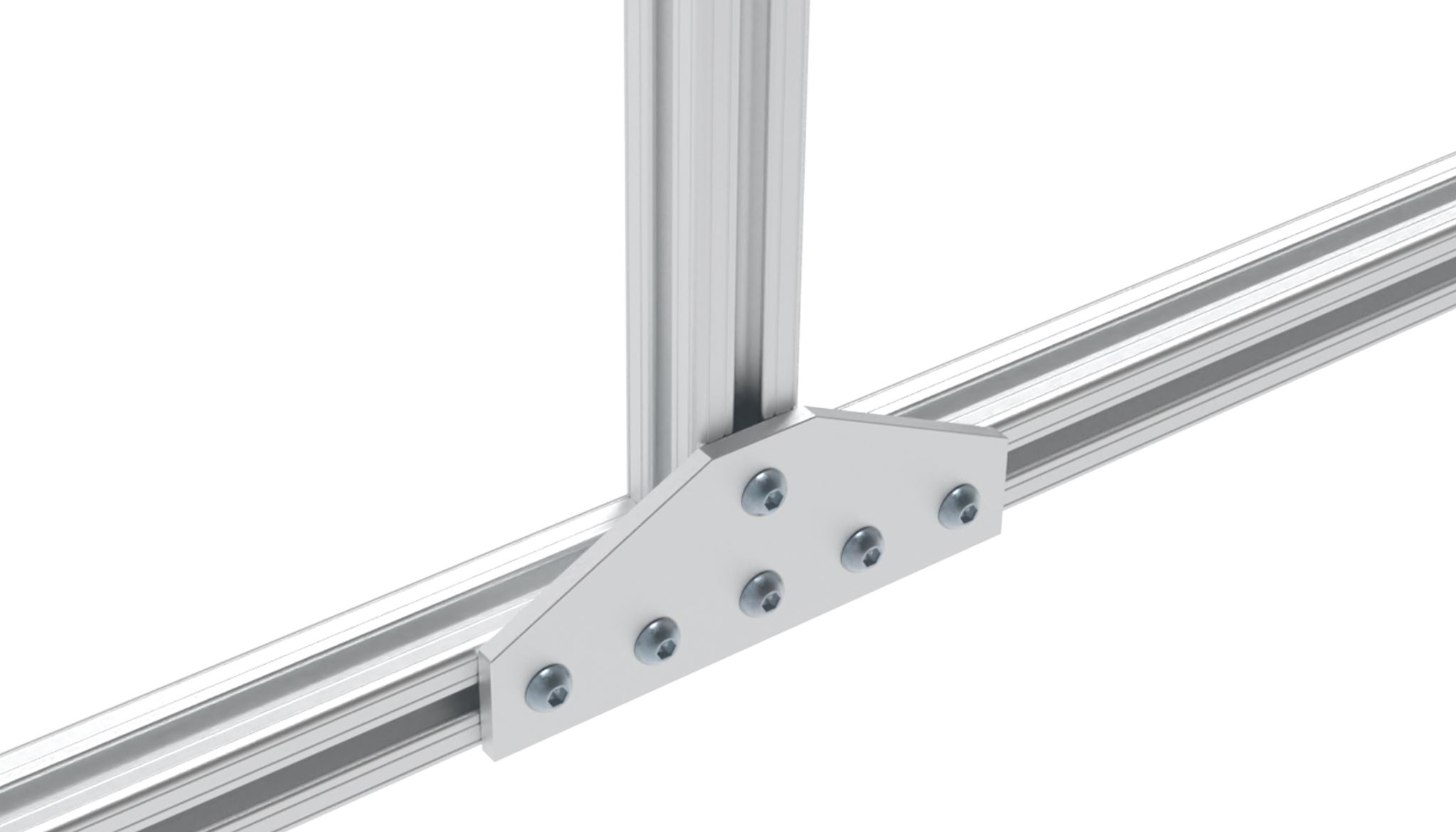

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized
Customs Tariff Number Export: 76169990
ERP Number: 150589
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 86.0
Zolltarifnummer: 76169990990

Variants

Product ID ØD (mm) A (mm) K (mm) H (mm) L (mm) Version B (mm)
093EVT51127 7.0 (0.27") 25.4 (1") 25.0 (0.98") 4.8 (0.19") 50.8 (2") 50.8 / 127 - 2" / 5" 127 (5")
093EVT76190 9.0 (0.35") 38.1 (1.5") 38.0 (1.49") 6.35 (0.25") 76.2 (3") 76.2 / 190.5 - 3" / 7.5" 190.5 (7.5")

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate
