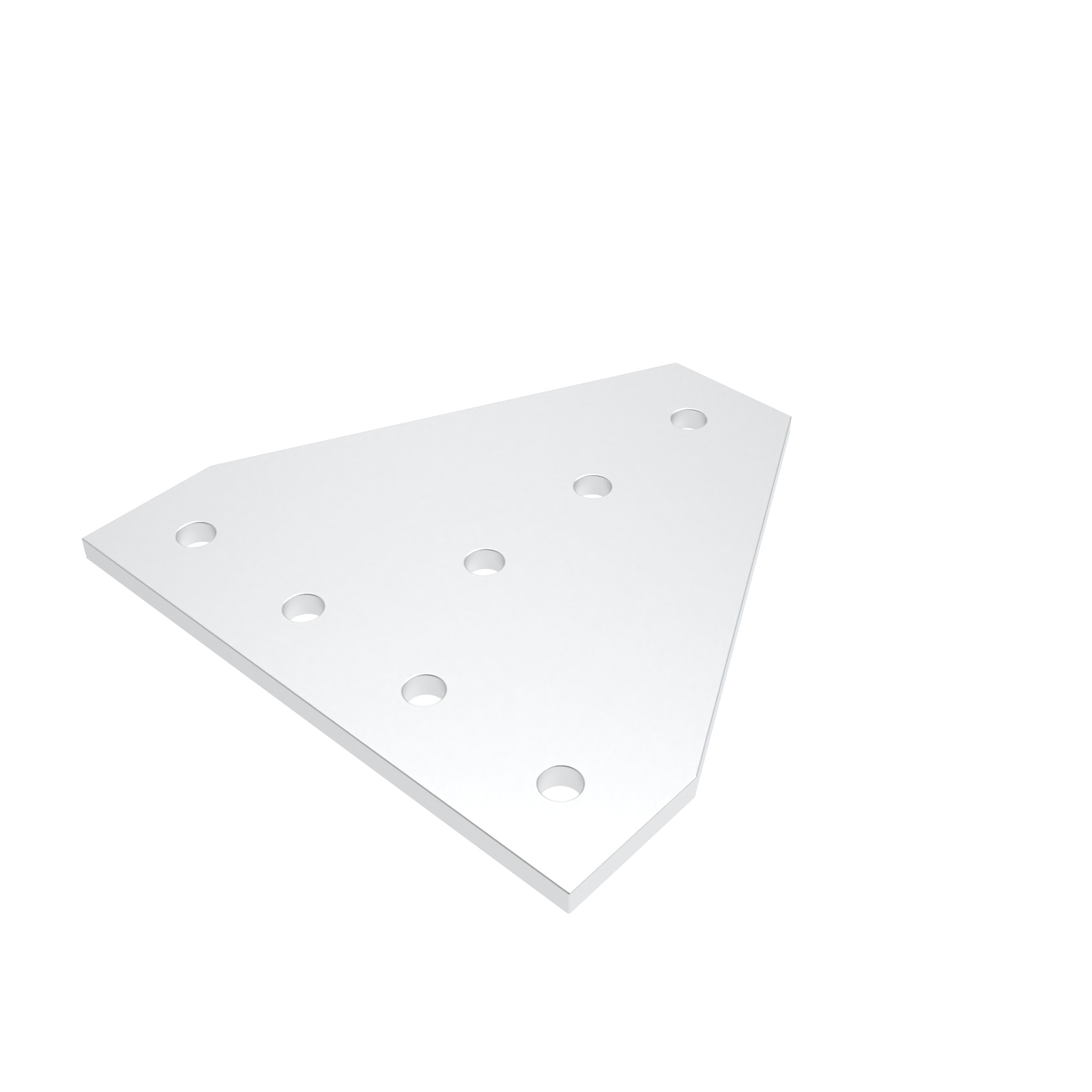

ECO Connection Plate AL T 7 Hole, 1 Slot Version

Product information "ECO Connection Plate AL T 7 Hole, 1 Slot Version"

Delivery Countries:
North America

Description:

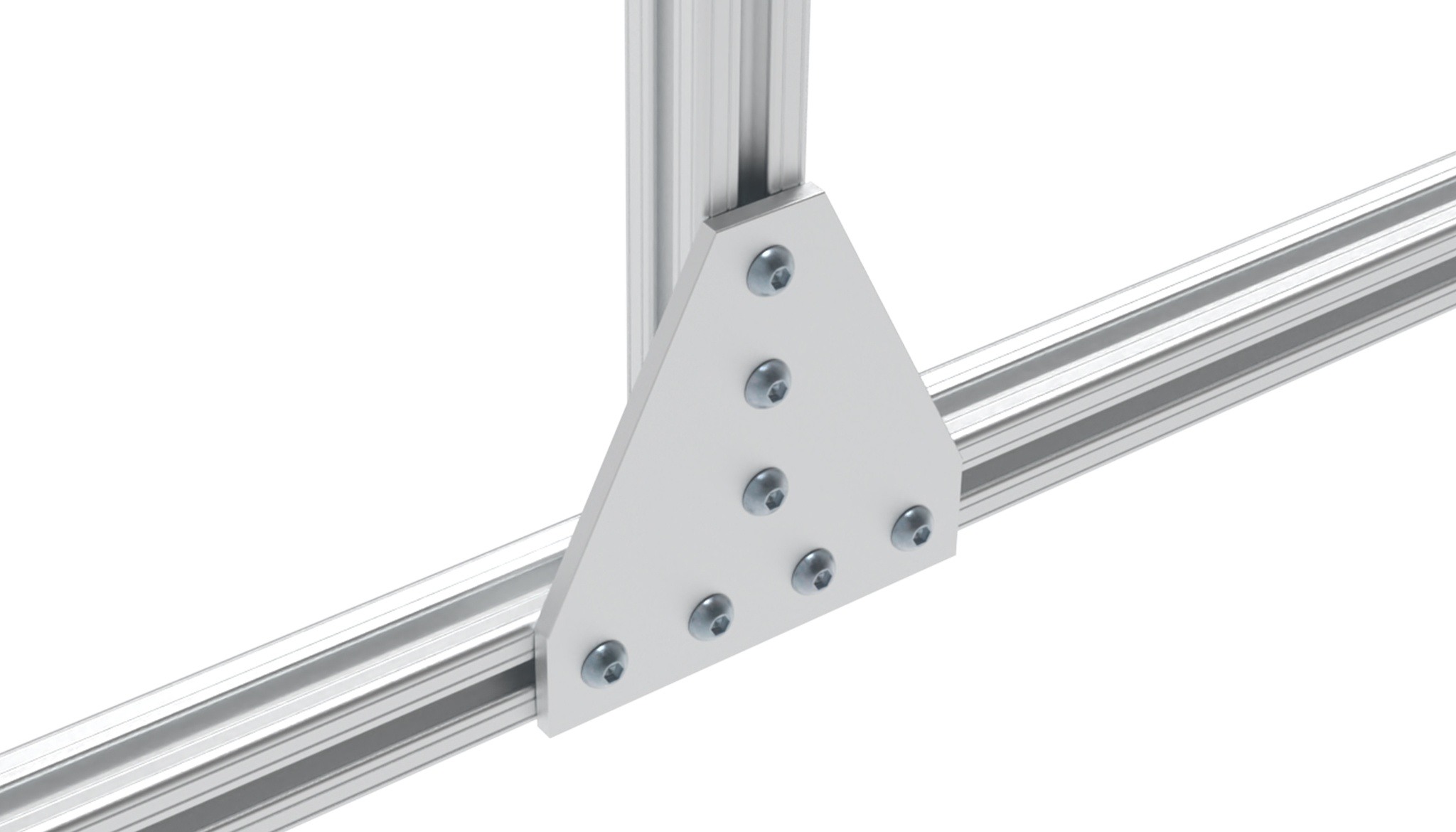

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	300.0

Variants

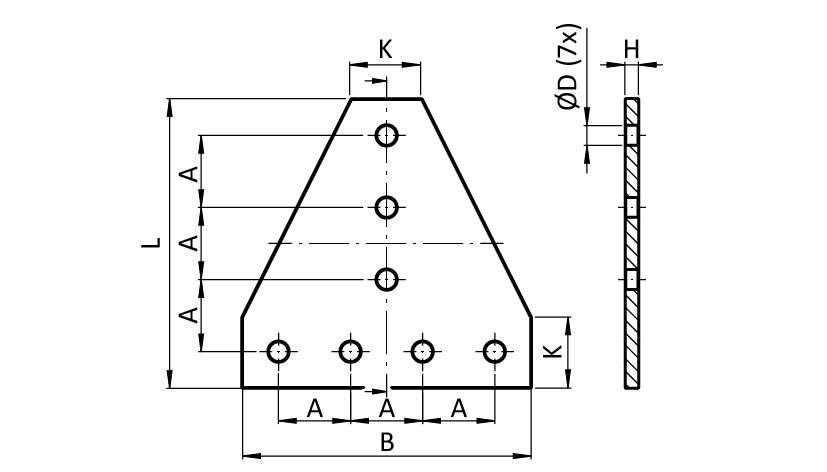

Product ID	Version	ØD (mm)	A (mm)	K (mm)	H (mm)	L (mm)	B (mm)
093EVT102102	102 / 102 - 4" / 4"	7.0 (0.27")	25.4 (1")	25.0 (0.98")	4.8 (0.19")	101.6 (4")	101.6 (4")
093EVT152152	152 / 152 - 5.98" / 5.98"	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	152.4 (6")	152.4 (6")
