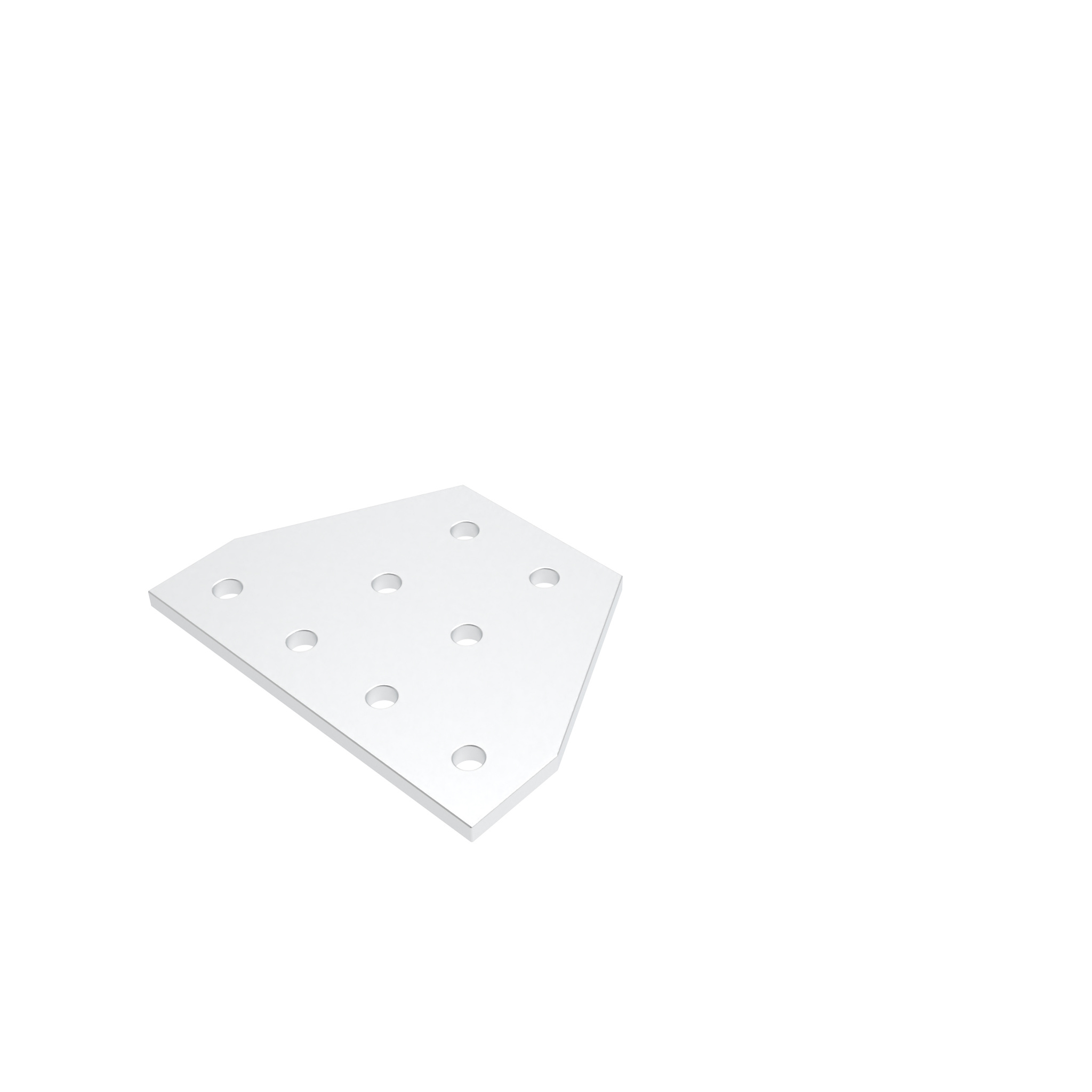

ECO Connection Plate AL T 8 Hole, 1 Slot x 2 Slots Version

Product information "ECO Connection Plate AL T 8 Hole, 1 Slot x 2 Slots Version"

Delivery Countries:
North America

Description:

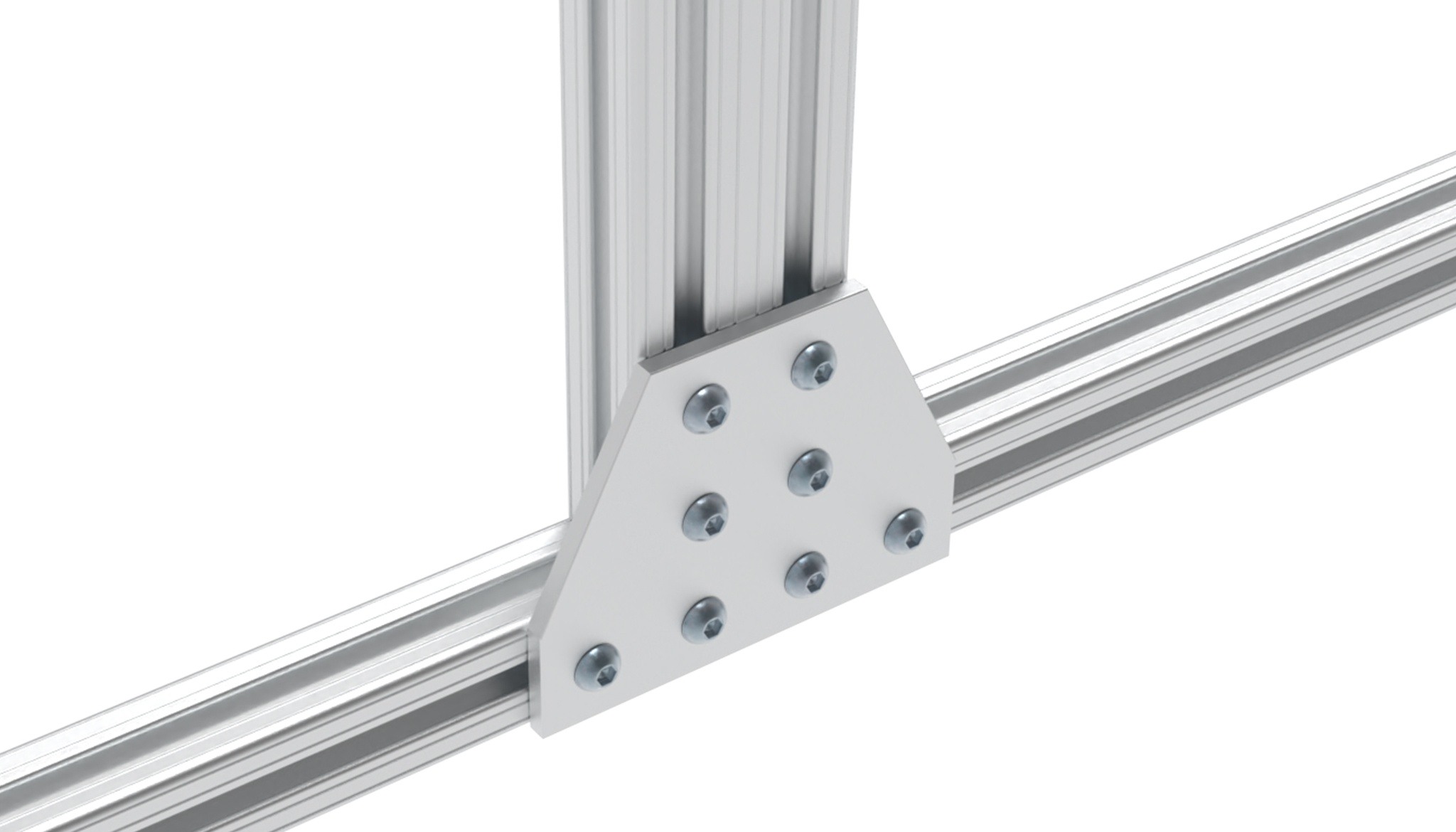

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

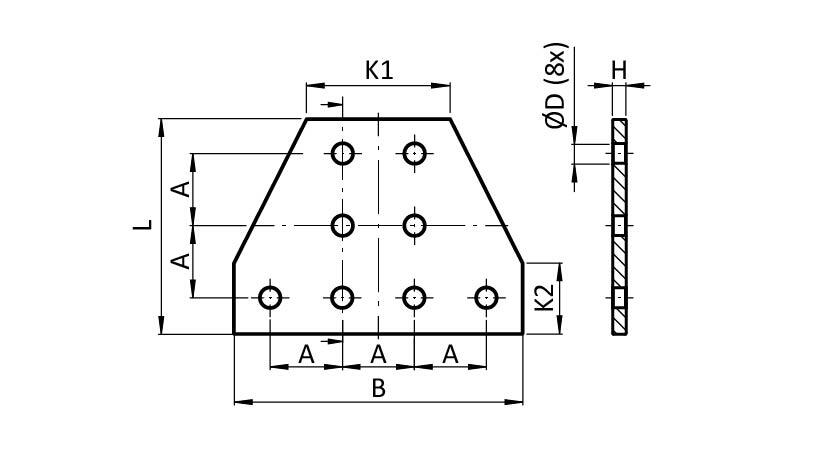

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)	K (mm)
093EVT10276	101.6 / 76.2 - 4" / 3"	4.8 (0.19")	25.4 (1")	101.6 (4")	76.2 (3")	7.0 (0.27")	51.0 (2")
093EVT152114	152.4 / 114.3 - 6" / 4.5"	6.35 (0.25")	38.1 (1.5")	152.4 (6")	114.3 (4.5")	9.0 (0.35")	38.0 (1.49")

Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
