ECO Connection Plate AL X 16 Hole, 2 Slots Version

Product information "ECO Connection Plate AL X 16 Hole, 2 Slots Version"

Delivery Countries:
North America

Description:

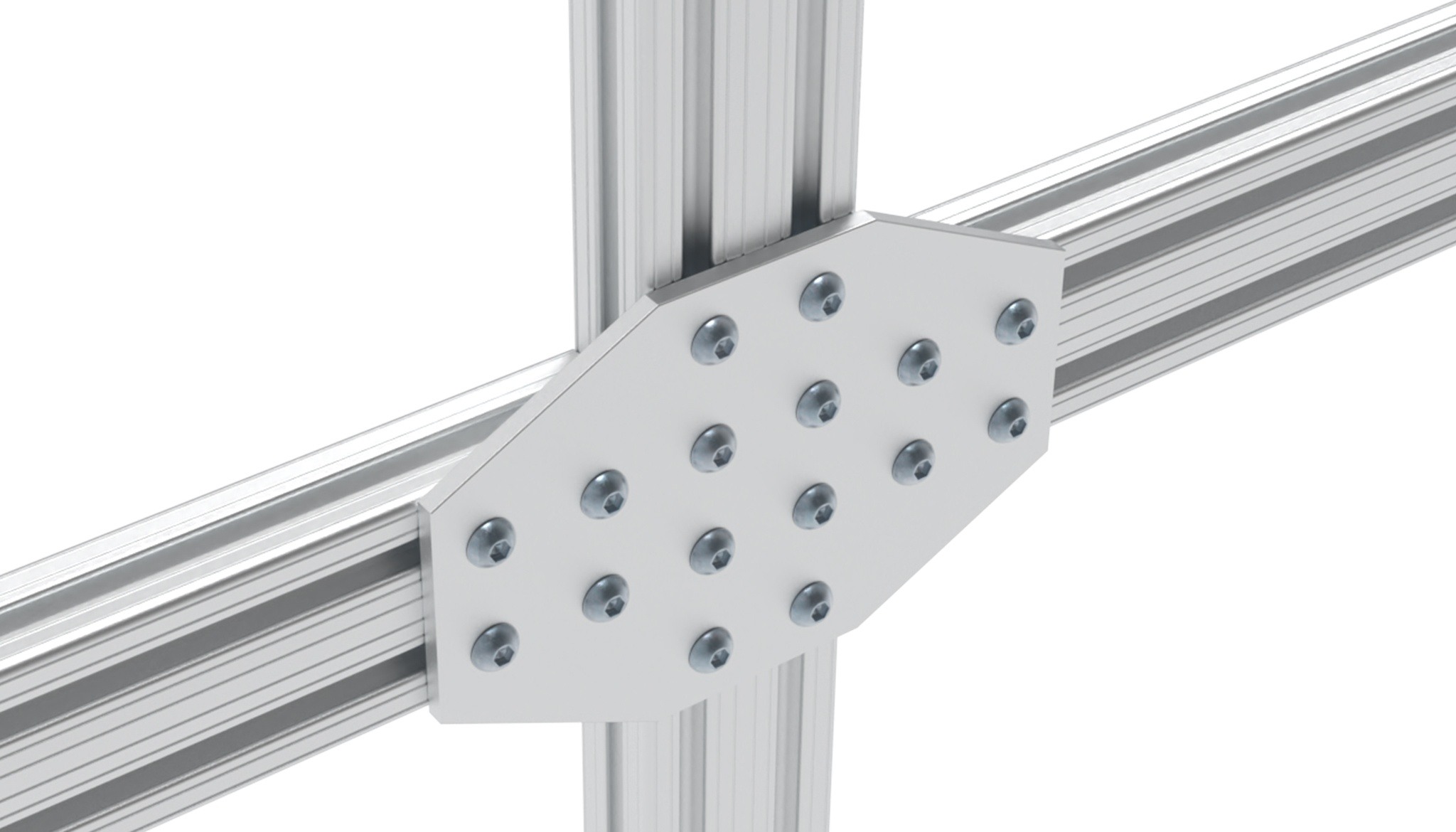

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

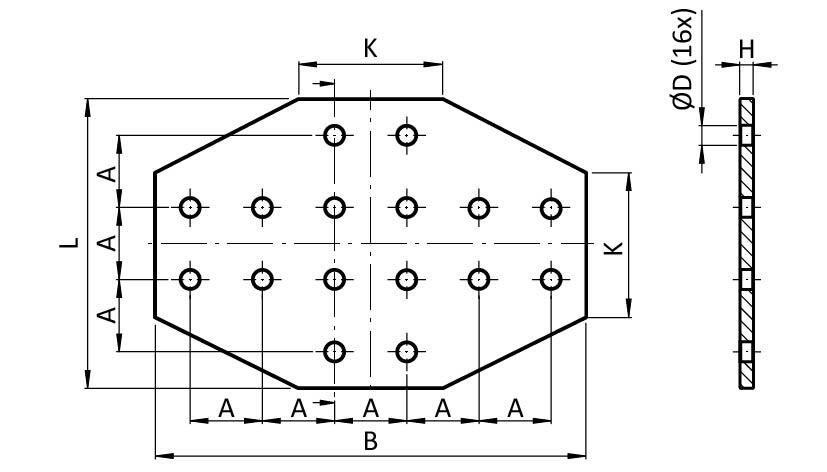

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	K (mm)	ØD (mm)

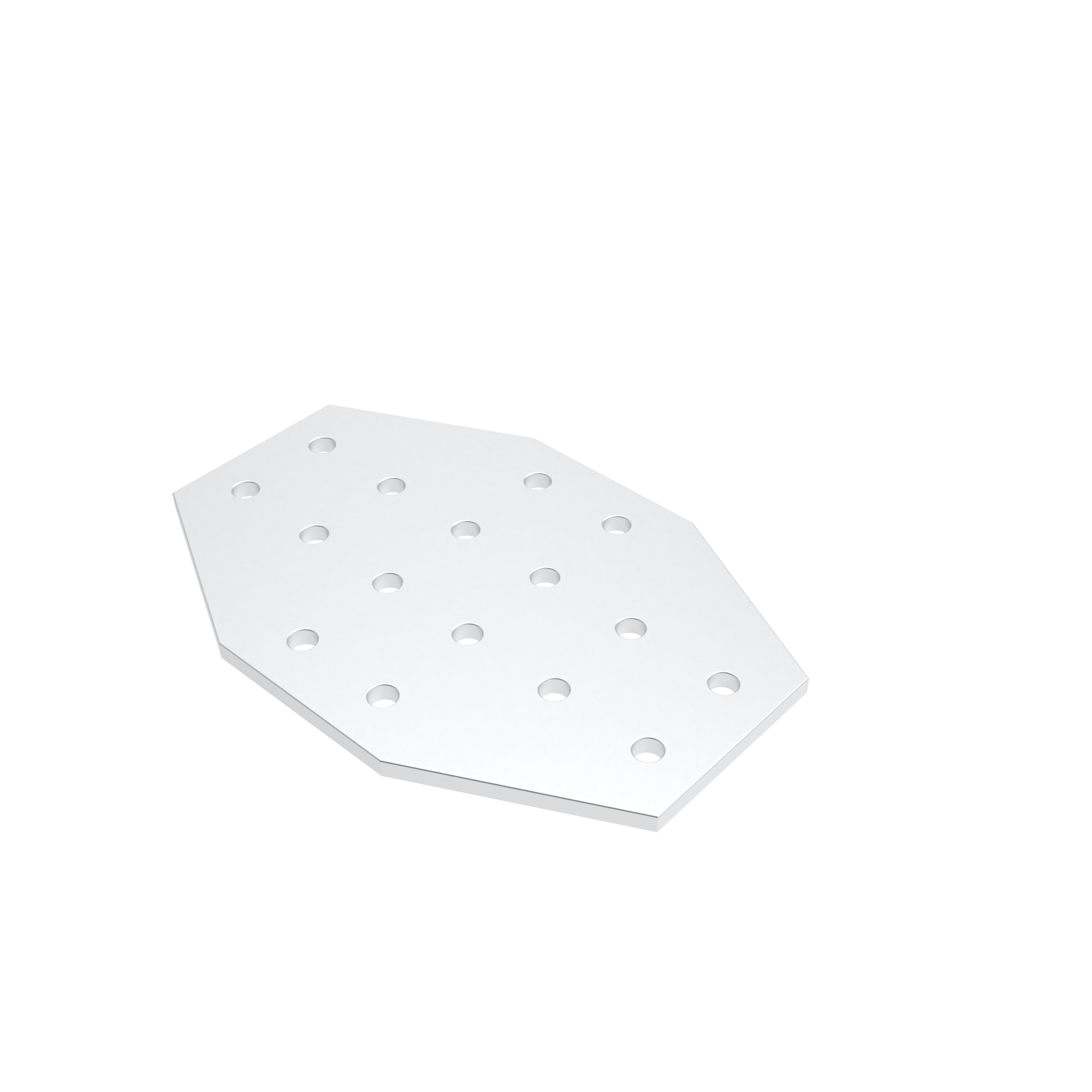

093EVX102152	102 / 152 - 4" / 5.98"	4.8 (0.19")	25.4 (1")	152.4 (6")	101.6 (4")	51.0 (2.0")	7.0 (0.27")

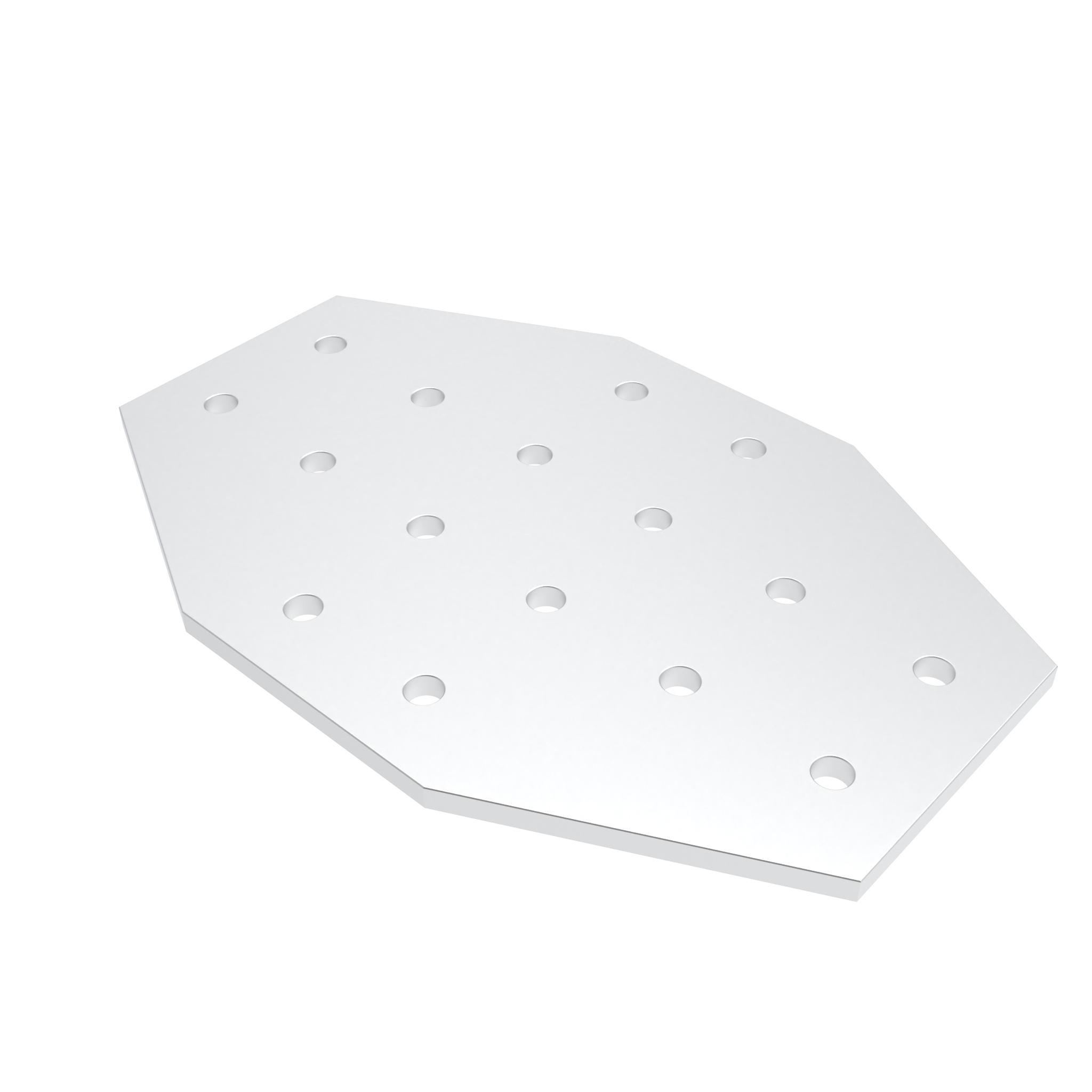

093EVX152228	152 / 228 - 5.98" / 9"	6.35 (0.25")	38.1 (1.5")	228.6 (9")	152.4 (6")	76.0 (2.99")	9.0 (0.35")

Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
