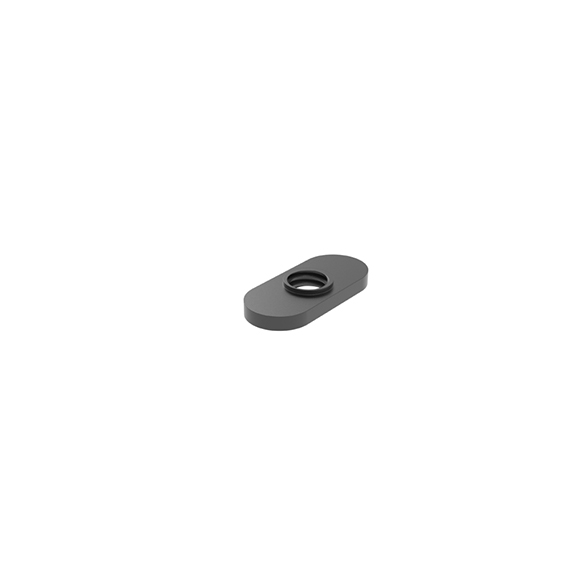

ECO T-nut Style B Centric

€0.00

Material

Steel

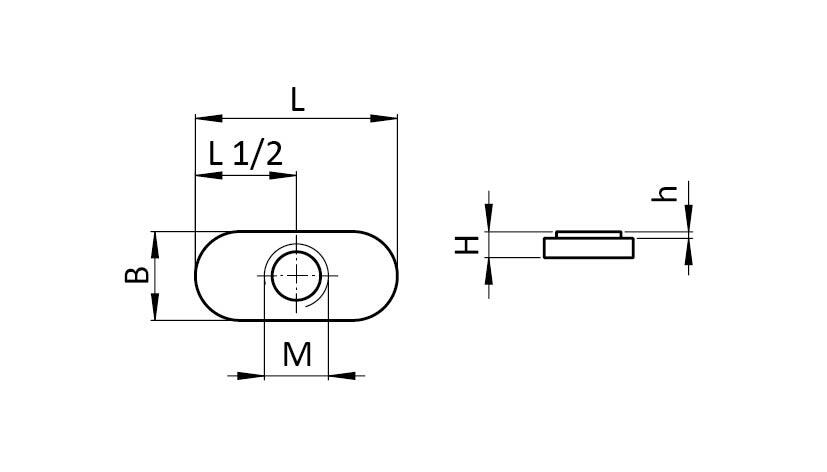

H (mm)

3.4 (0.13")

B (mm)

11.0 (0.43")

L (mm)

25.0 (0.98")

h (mm)

1.0 (0.03")

M

1/4-20 UNC

Slot N (mm)

6.5 (0.256")

Modular Dimension (mm)

25.4 (1")

Part #: 096E10U1/4-20

Pack Quantity: 100 pieces

Product information "ECO T-nut Style B Centric"

Color:
Black

Delivery Countries:
North America

Description:

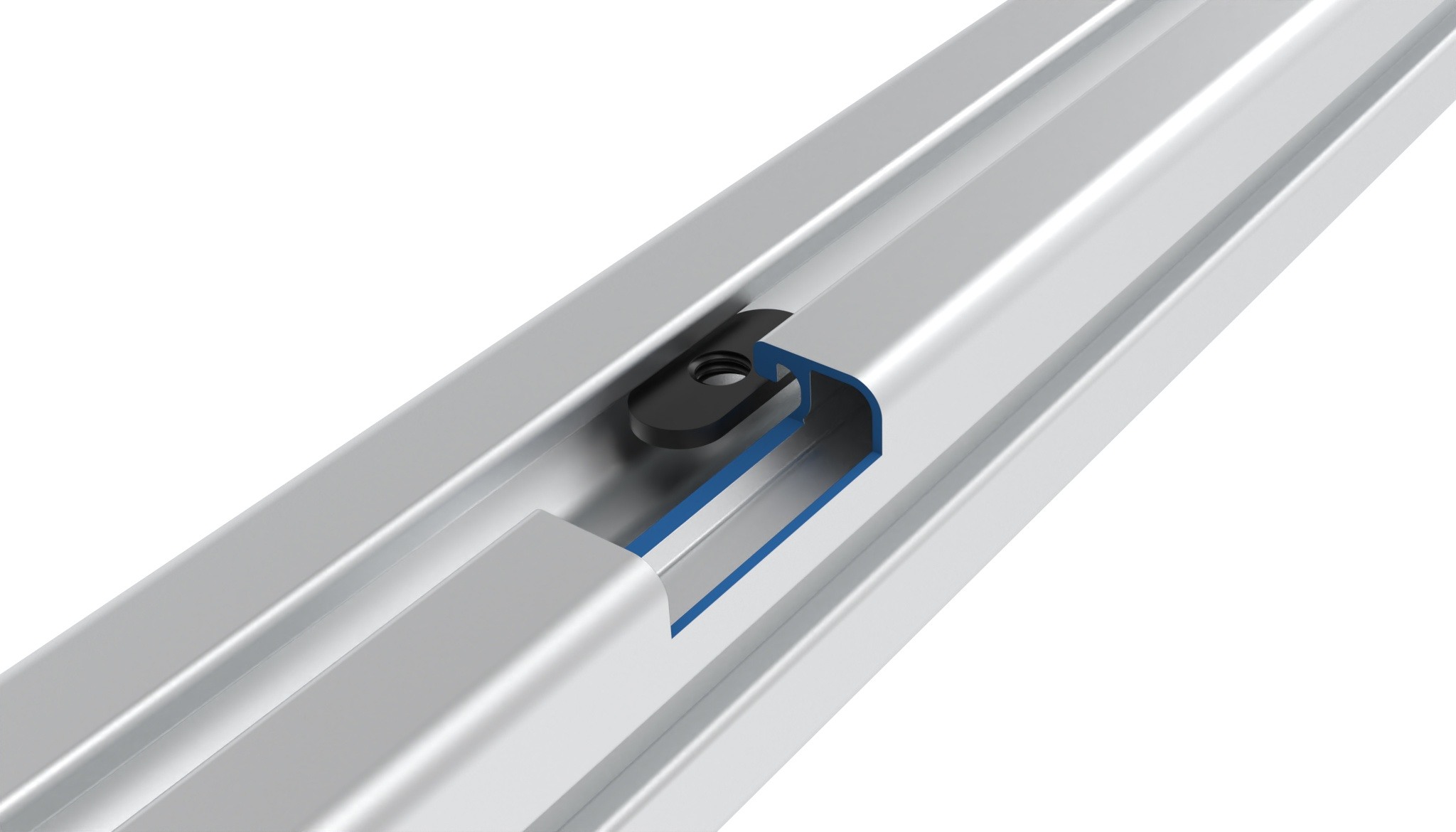

To fasten components to profiles

Material:
Steel

Surface:
Zinc plated

Pack Quantity:	100 pieces
Model:	Steel
Weight (g):	6.0
ERP Number:	138569

Variants

Part #	Material	H (mm)	B (mm)	L (mm)	h (mm)	M	Slot N (mm)	Modular Dimension (mm)	CAD
096E10U1/4-20	Steel	3.4 (0.13")	11.0 (0.43")	25.0 (0.98")	1.0 (0.03")	1/4-20 UNC	6.5 (0.256")	25.4 (1")

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181692900
Customs Tariff Number Export: 73181692

Certificates

Slot Size	Slot 0.256” - 6.5
Modular Dimension	Modular Dimension 1” - 25.4
Product Feature	Fractional
Profile Form	T-slot Profiles
