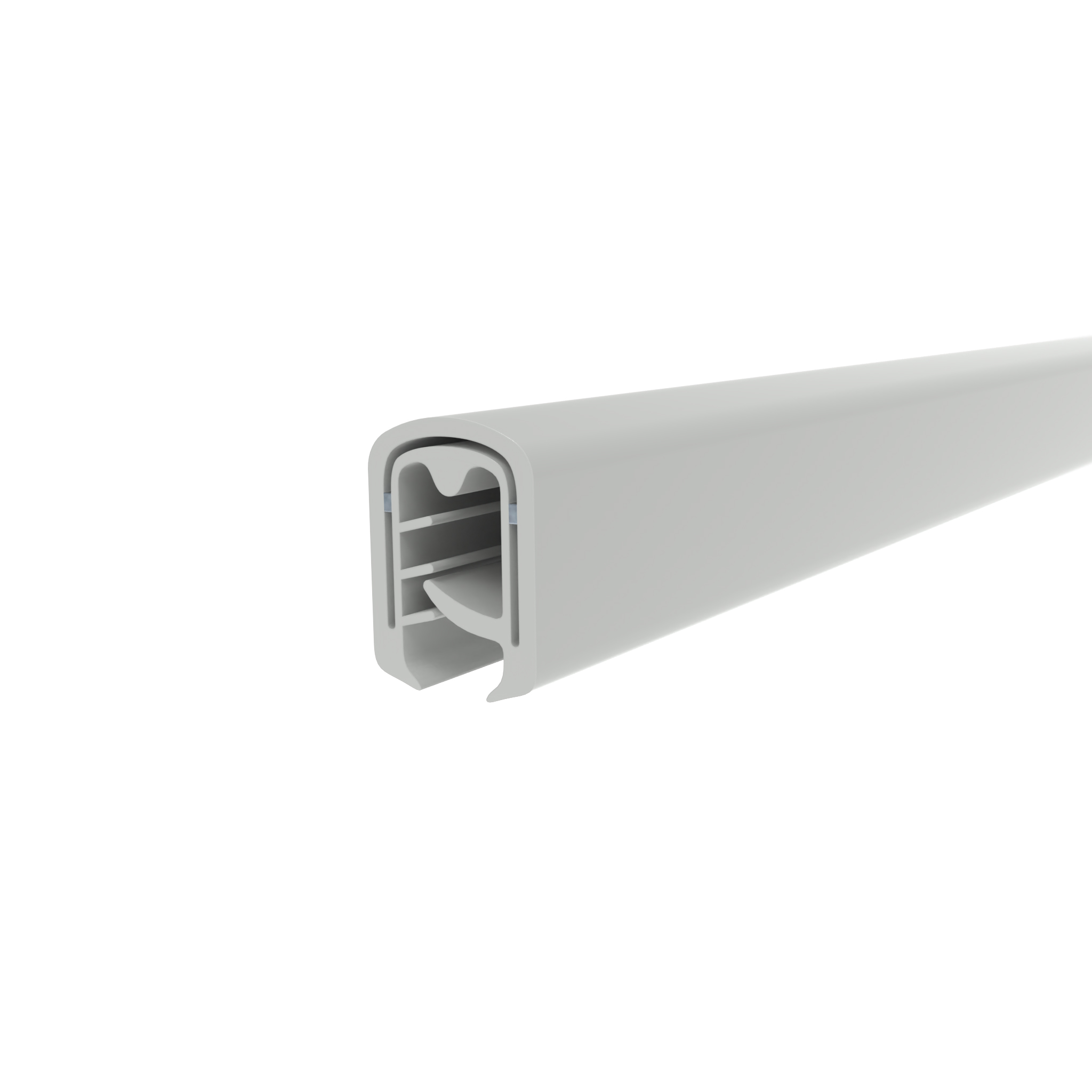

Edge Protection Profile 10.5 x 14.5 with Butyl

Product information "Edge Protection Profile 10.5 x 14.5 with Butyl"

Color:
Edge protector: Gray
Clamping lips: Transparent

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

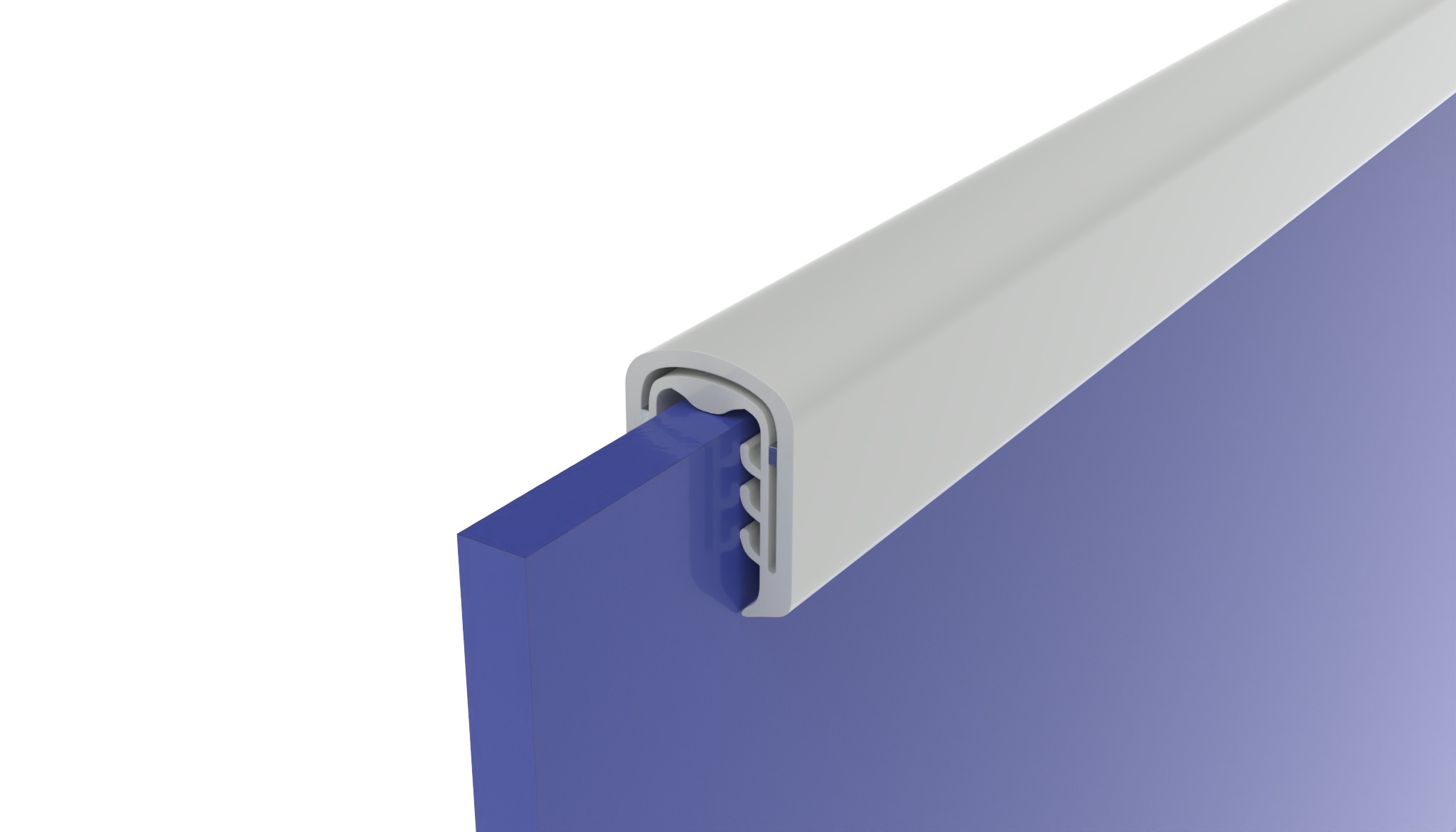

For protecting the edges of panels;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request
Customs Tariff Number Export: 39162000
Pack Quantity: 100 meters (roll)
Weight (g/m): 74.0
Zolltarifnummer: 39162000990
pA Number: 124829

Variants

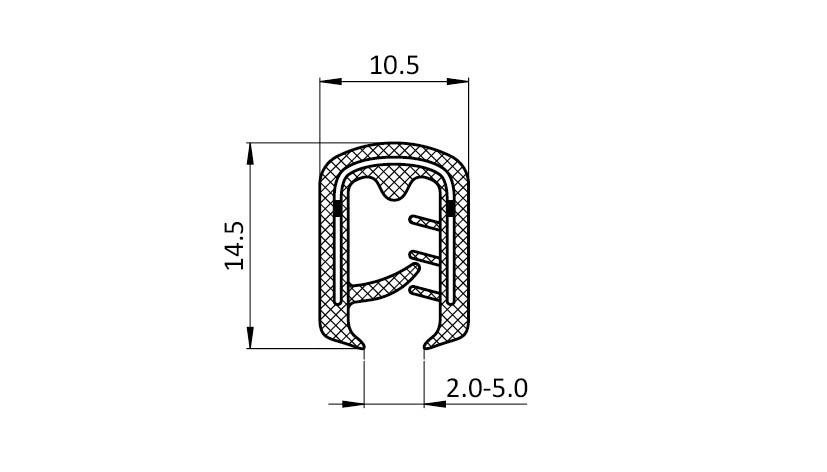

Product ID Color Clamping Range (mm)
087EPE06711 Gray ≈ RAL 7042 2.0 - 5.0
