Edge Sealing Profile 19.2 x 16

Product information "Edge Sealing Profile 19.2 x 16"

Color:
Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

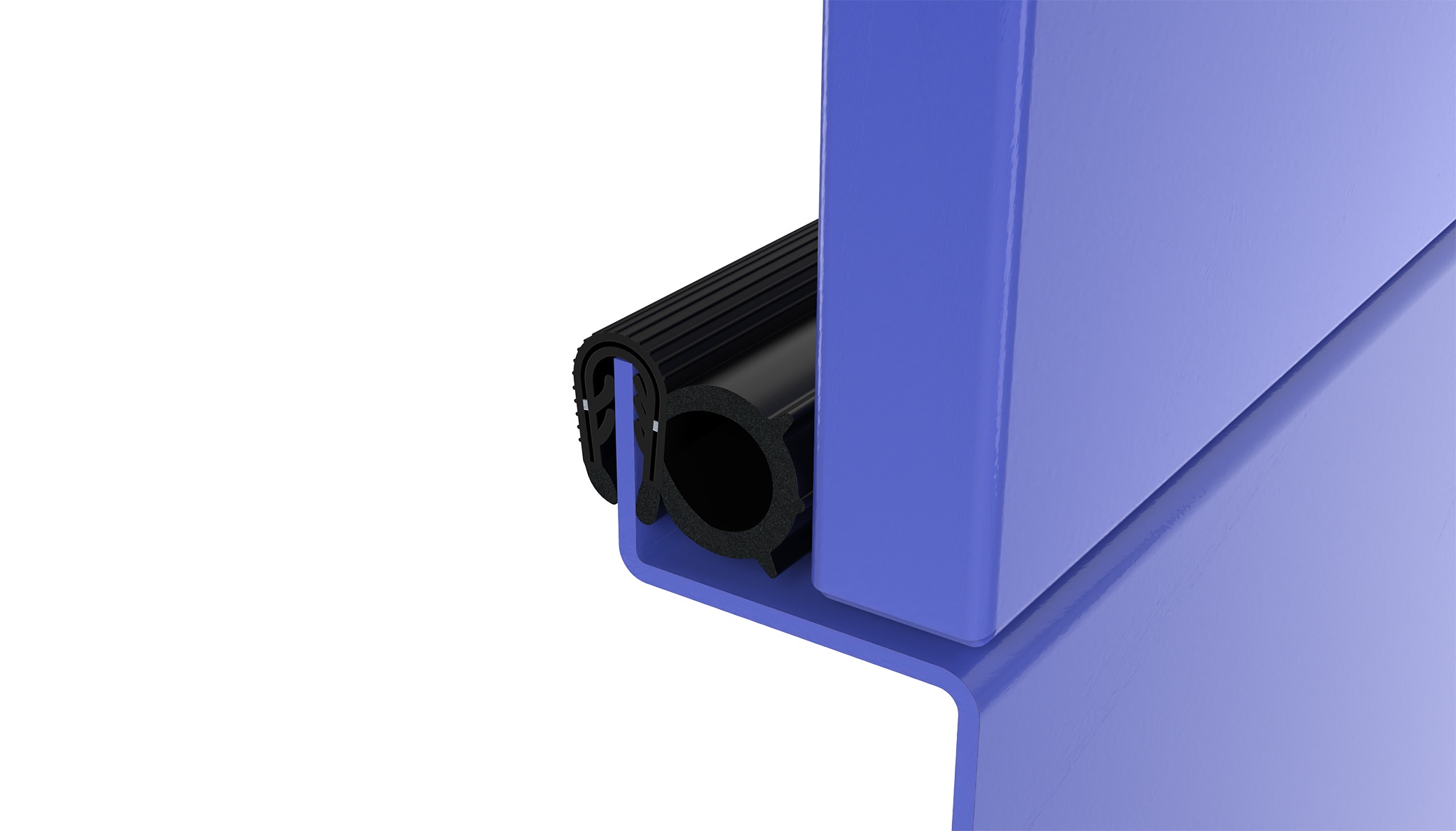

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Soft rubber EPDM
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Finishing: Flame resistant, anti-fungal on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request
Pack Quantity: 75 meters (3 rolls at 25 m)
Customs Tariff Number Export: 40082900
Weight (g/m): 215.0
ERP Number: 124917
Zolltarifnummer: 40082900900

Variants

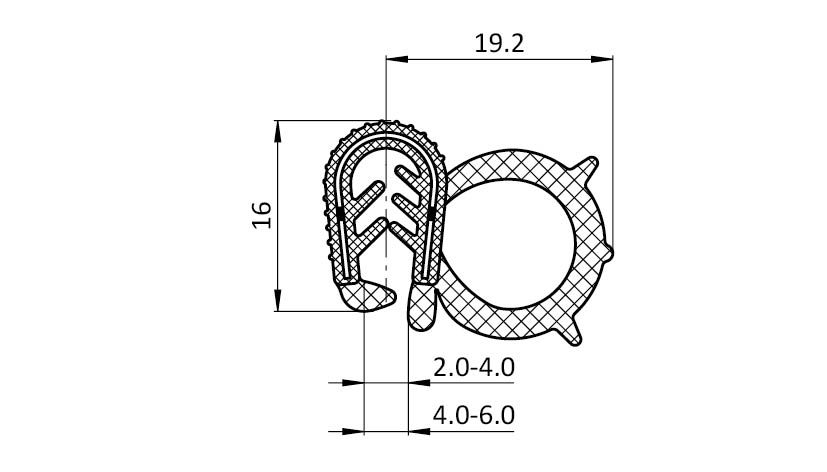

Part # Clamping Range (mm) Color Material Pack Quantity
087SPES12911 2.0 - 4.0 Black EPDM / EPDM 75 meters (3 rolls at 25 m)

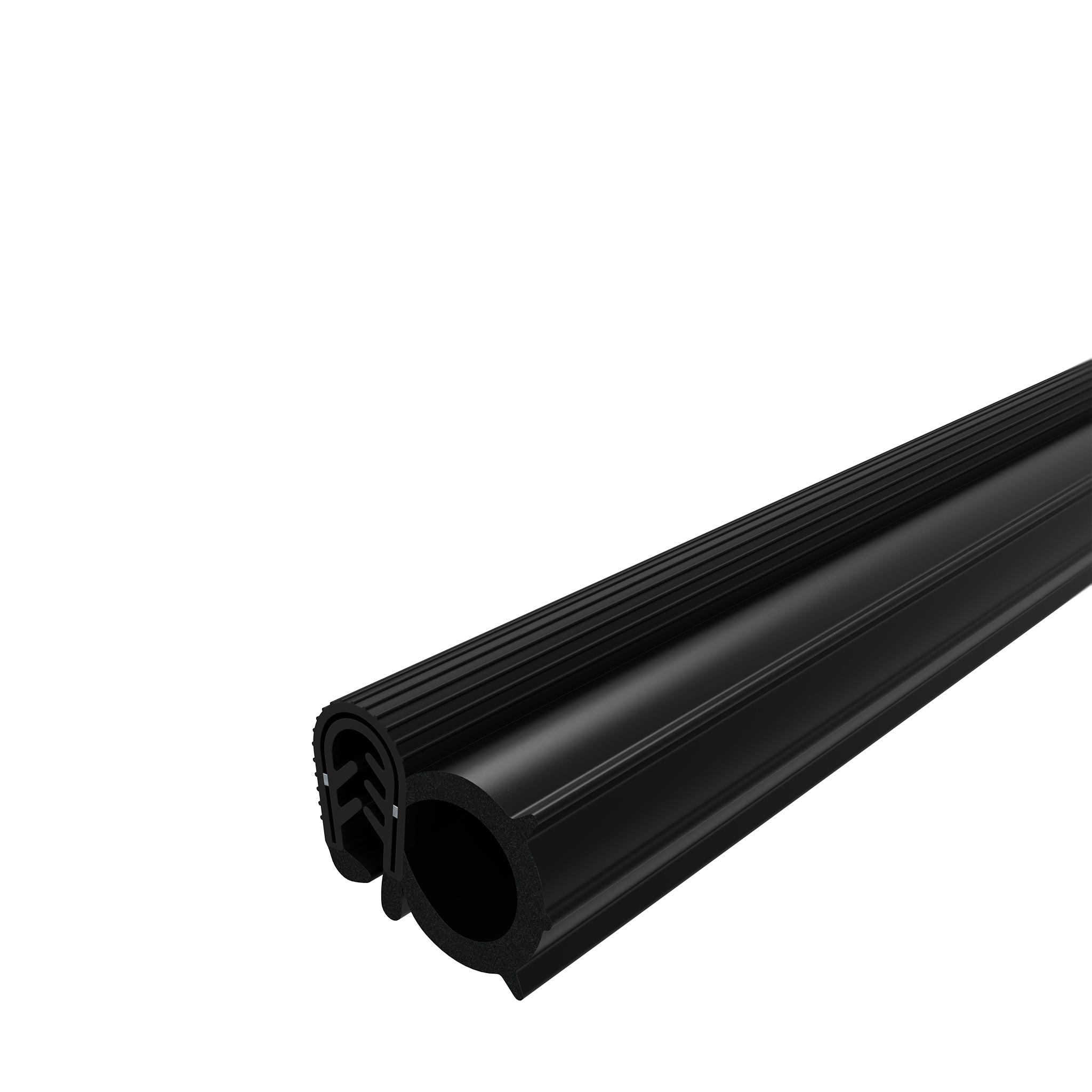

087SPES12912 4.0 - 6.0 Black EPDM / EPDM 75 meters (3 rolls at 25 m)

CAD Downloads
