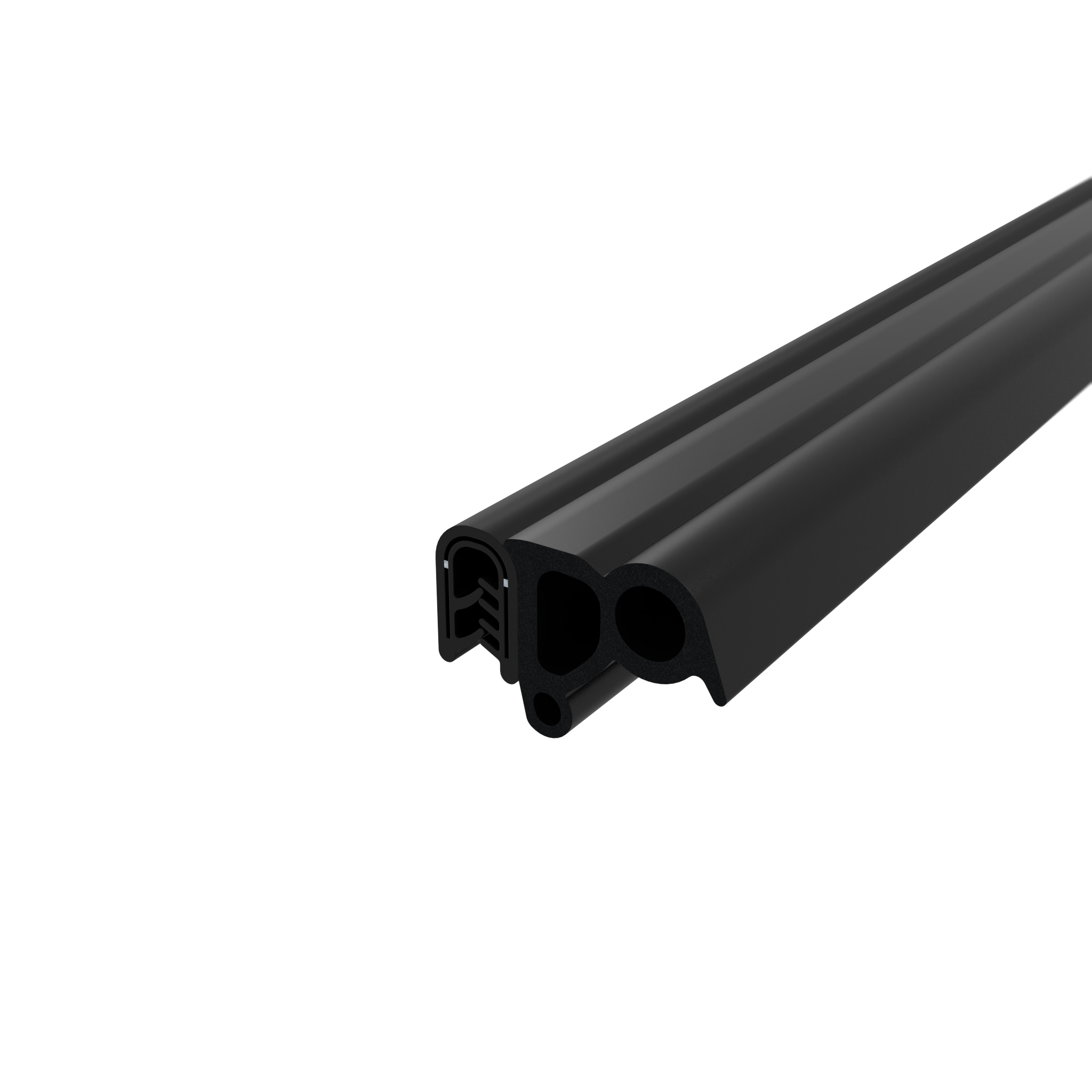

Edge Sealing Profile 28 x 16

Product information "Edge Sealing Profile 28 x 16"

Color:
Edge protector: Black
Clamping lips: Transparent

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

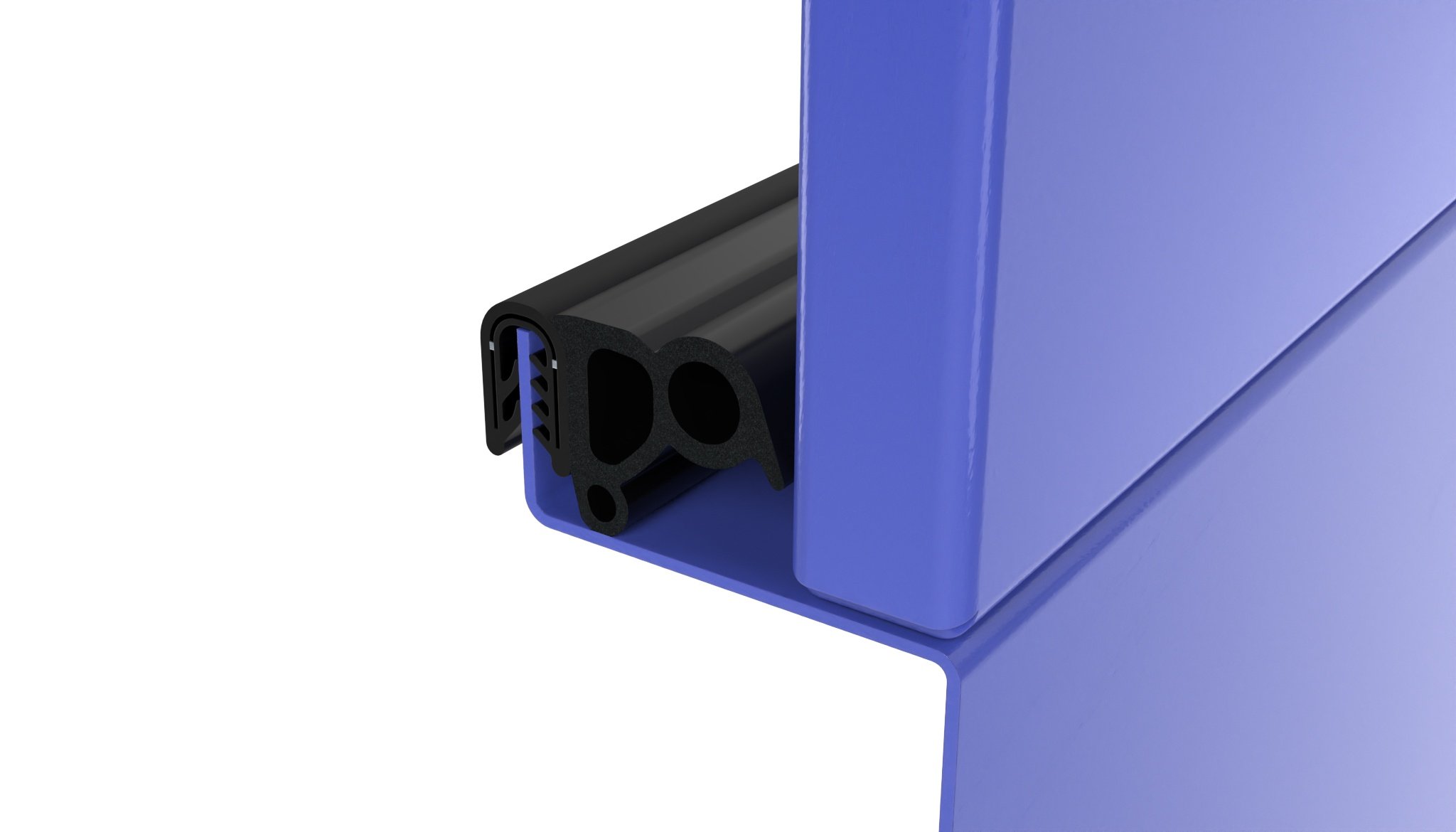

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request

Zolltarifnummer:
39162000990
Pack Quantity: 50 meters (roll)
Weight (g/m): 272.0

Variants

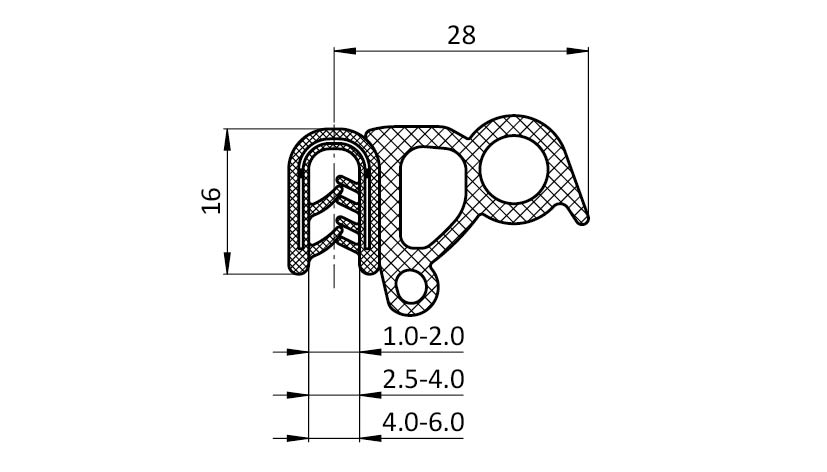

Product ID Color Material Clamping Range (mm)
087SPES13911 Black EPDM / PVC 1.0 - 2.5
087SPES13912 Black EPDM / PVC 2.5 - 4.0
087SPES13913 Black EPDM / PVC 4.0 - 6.0
