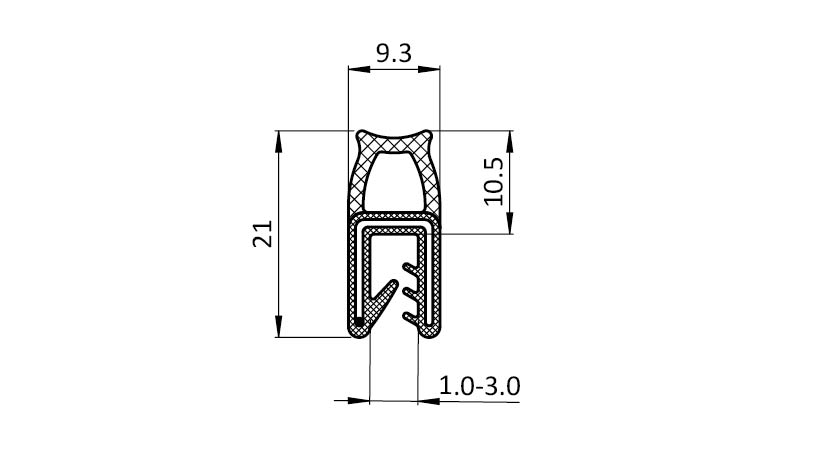

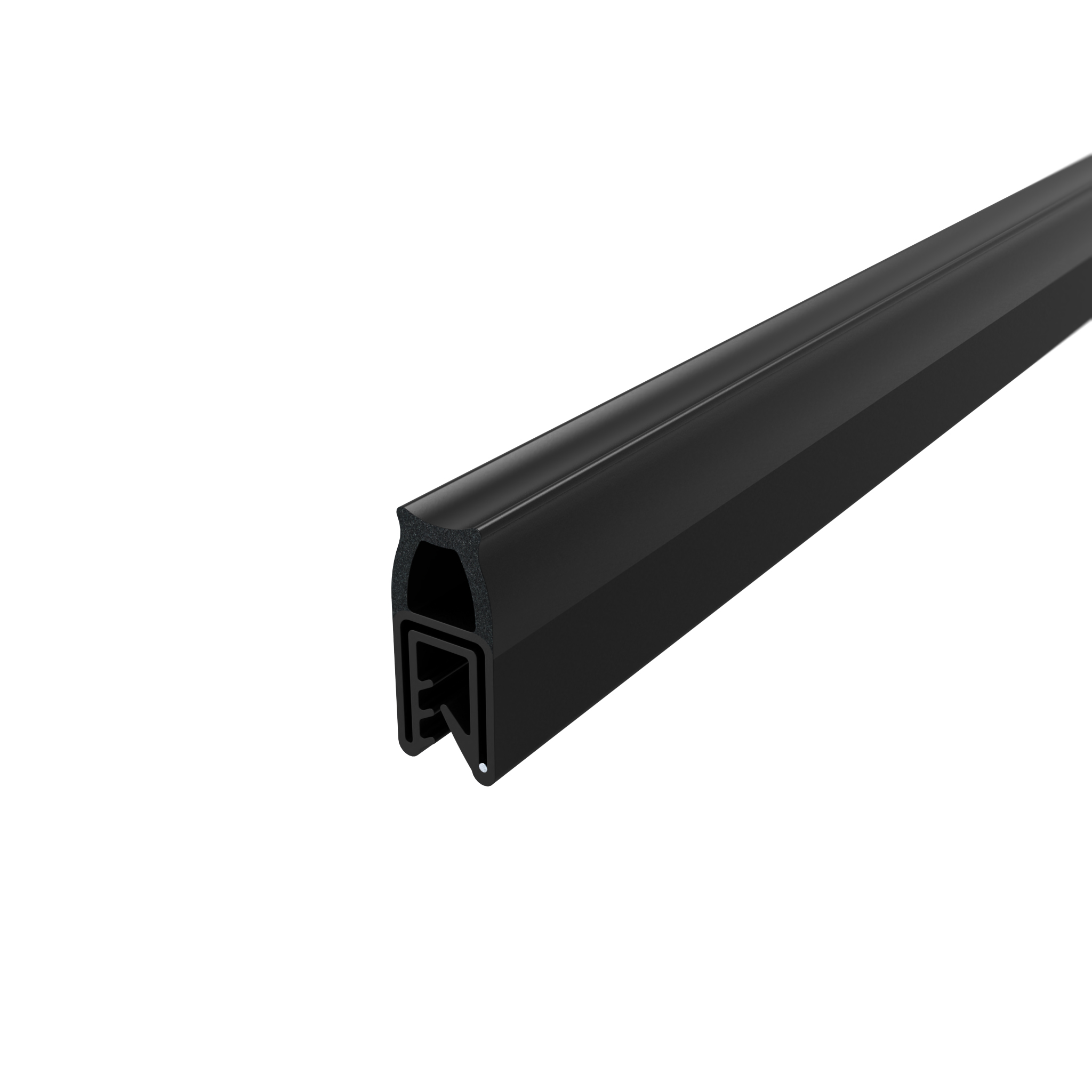

Edge Sealing Profile 9.3 x 21

Product information "Edge Sealing Profile 9.3 x 21"

Color:
Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

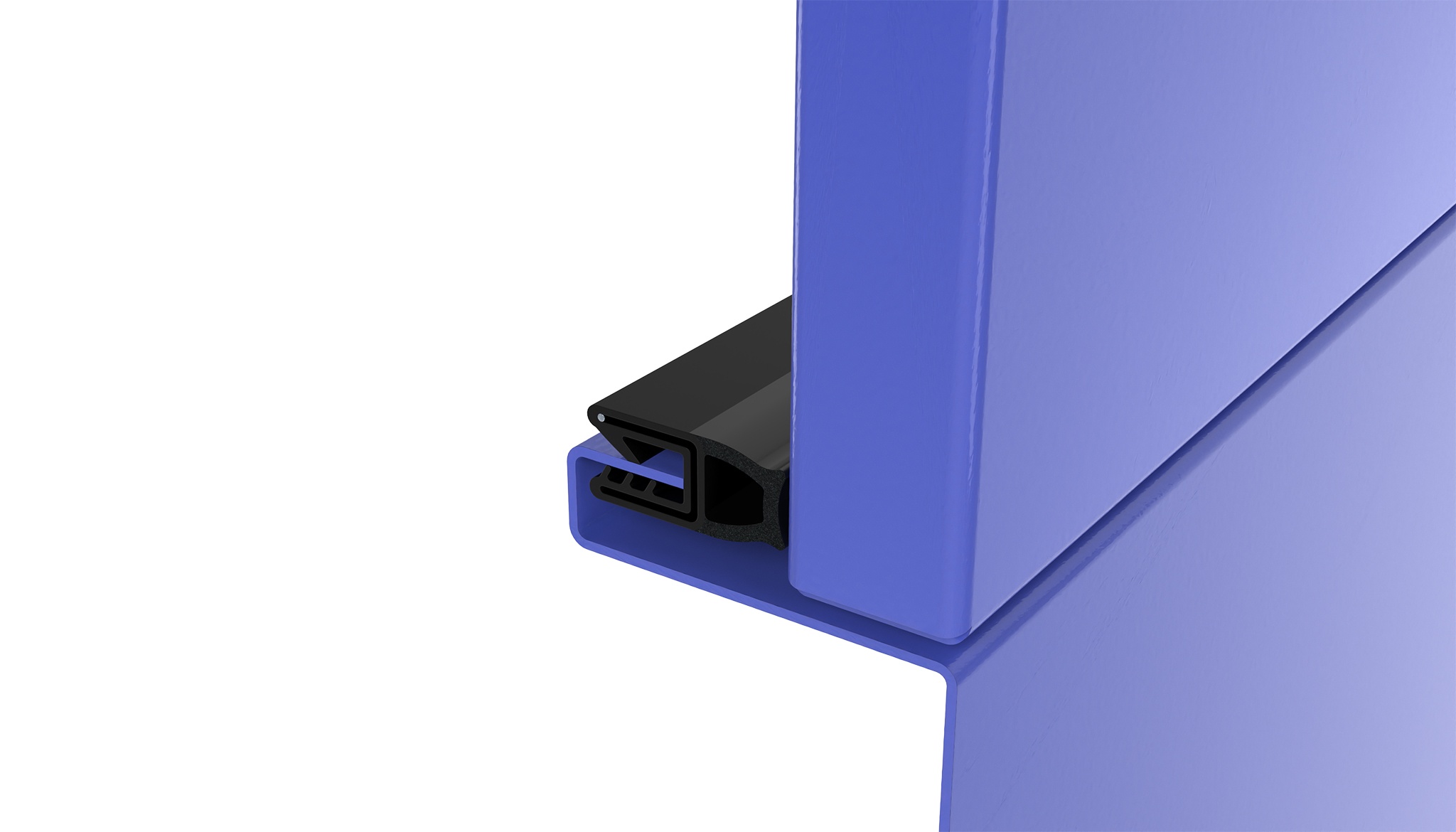

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Soft rubber EPDM
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel, non-split on request
Other cross-sections on request
Customs Tariff Number Export: 40082900
ERP Number: 124902
Pack Quantity: 100 meters (2 rolls at 50 m)
Weight (g/m): 105.0
Zolltarifnummer: 40082900900

Variants

Part # Material Color Clamping Range (mm)
087SPET07911 EPDM / EPDM Black 1.0 - 3.0

CAD Downloads
