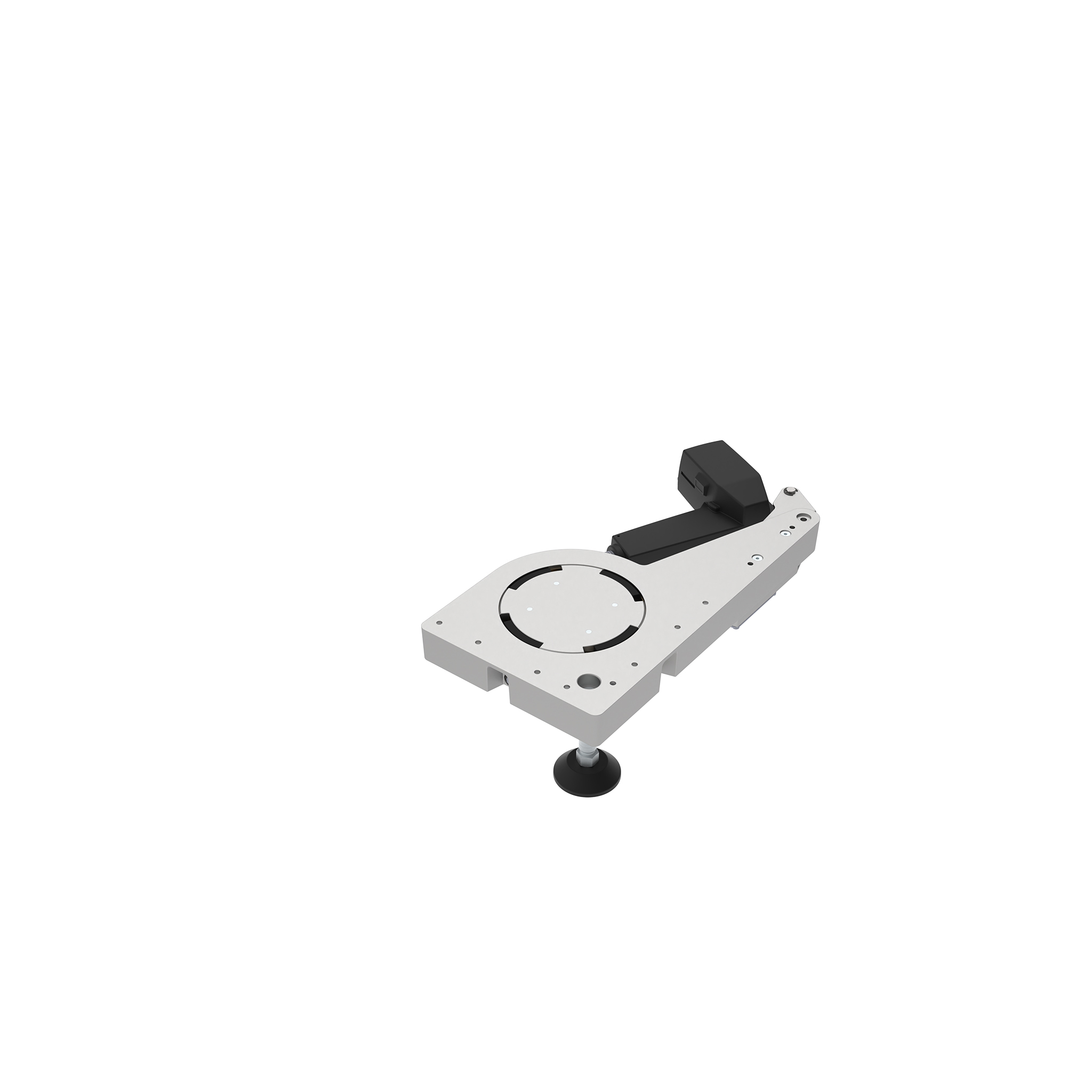

Electric Lift Caster

Product information "Electric Lift Caster"

Delivery Countries:
Worldwide

Description:

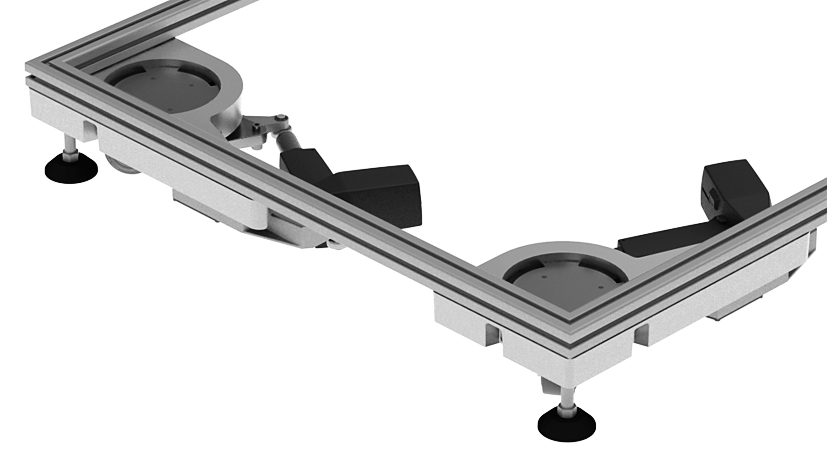

Lift castor system for a fast and flexible placing of plants or assembls tables;
with electrical drive - 24 V, electrical connection plug Neutrik NAC3FX W TOP + NAC3MX W TOP

Material:
Housing: Aluminum die-cast with PTFE bearing
Roller: Plastic PA with ball bearing
Roller housing: Zinc plated steel

Set:
4 lifting units with electrical drives

Tip:
*Positioned centered
Pack Quantity: 1 piece
Model: Aluminum die-cast
Weight (kg): 9.2
ERP Number: 126035

Variants

Part # Fmax (N) Version Profile Max. Load per Lifting Unit (kg) Pack Quantity CAD
*4900 - I / B - 1 piece
*19600 Set I / B 500 4 Stück

CAD Downloads

Classifications

ECLASS 6.0
23370290
ECLASS 7.0
23370290
ECLASS 8.0
23370290
ECLASS 9.0
23370290
ECLASS 10.0
23370290
ECLASS 11.0
23370290
ECLASS 12.0
23370290
ECLASS 13.0
23370290
Zolltarifnummer
84254900000
Customs Tariff Number Export
84254900

Certificates

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
