Emergency Opener for Slam Latch

Product information "Emergency Opener for Slam Latch"

Color:
Base part: Black
Push button: Red ≈ RAL 3020

Delivery Countries:
Worldwide

Description:

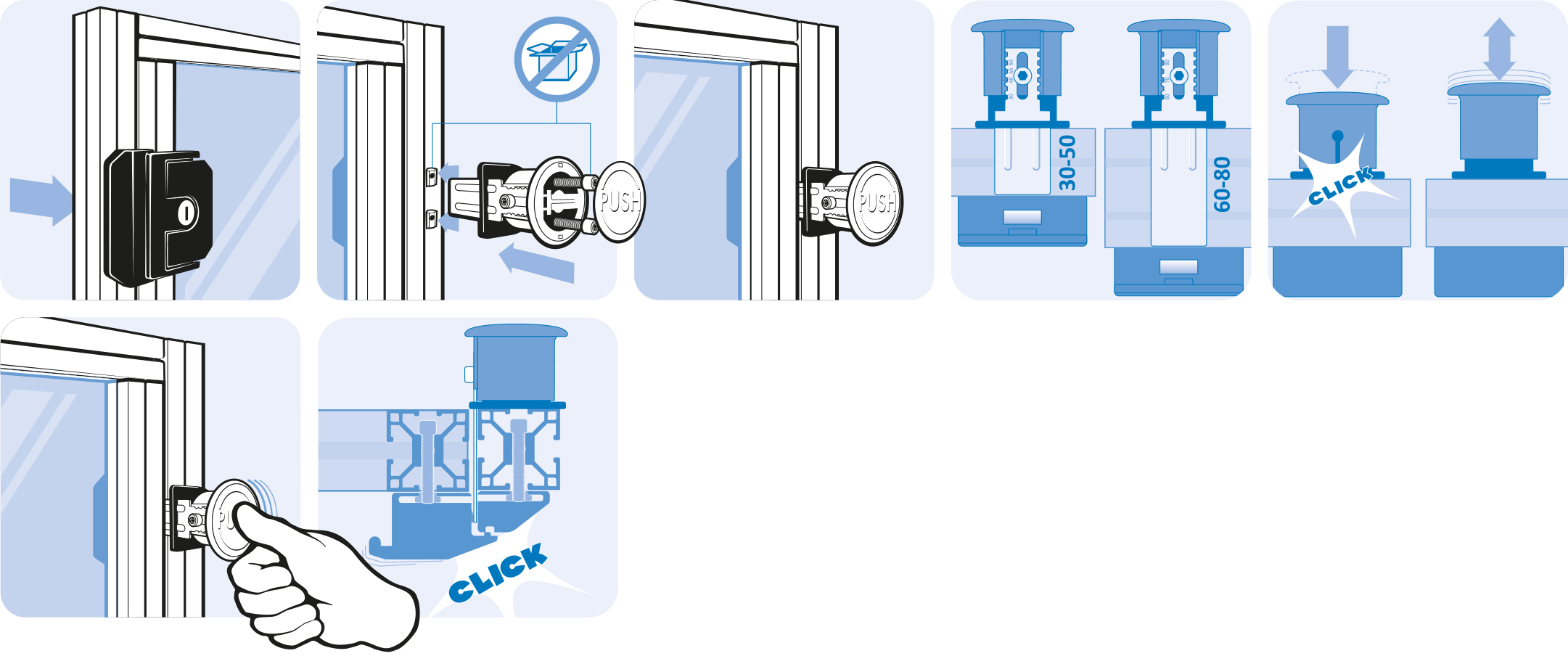

Inside emergency release for slam latches PRO and Compact; with or without safety catch

Material:
Base part: Plastic PA, glass fiber reinforced
Push button: Plastic PA, glass fiber reinforced
Unlocking plate: Steel

Surface:
Unlocking plate: Zinc plated

Tip:
Recommendation for slide door latch Compact 0957415 et sq.: Emergency opener for slam latch with safety catch and an inside mounted handle;
Not compatible with slam latch 0957101 et sq.

Zolltarifnummer:
83024110000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23190292
(ECLASS 12.0): 23190292
(ECLASS 13.0): 23190292
Fastening: From the front, using two socket head screws DIN EN ISO 4762 (DIN 912) M6 x 20
Model: Plastic PA
Pack Quantity: 1 piece
Weight (g): 110.8

Variants

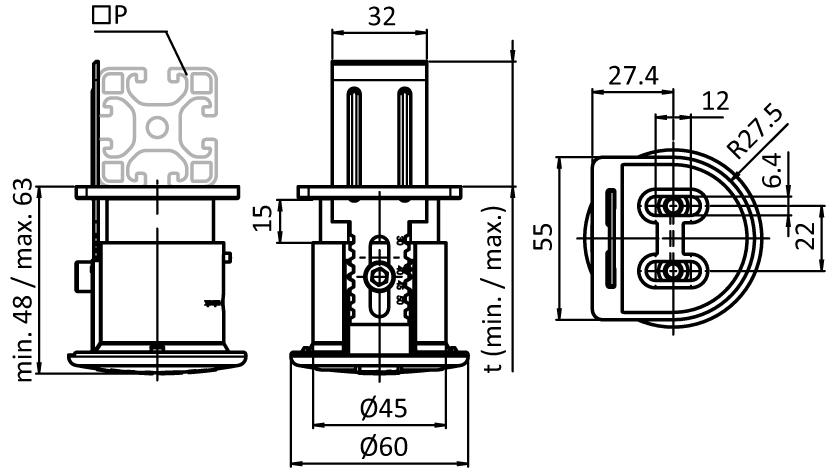

Product ID t (min.) (mm) P (mm) Version
0957409 30 30-50 With safety catch

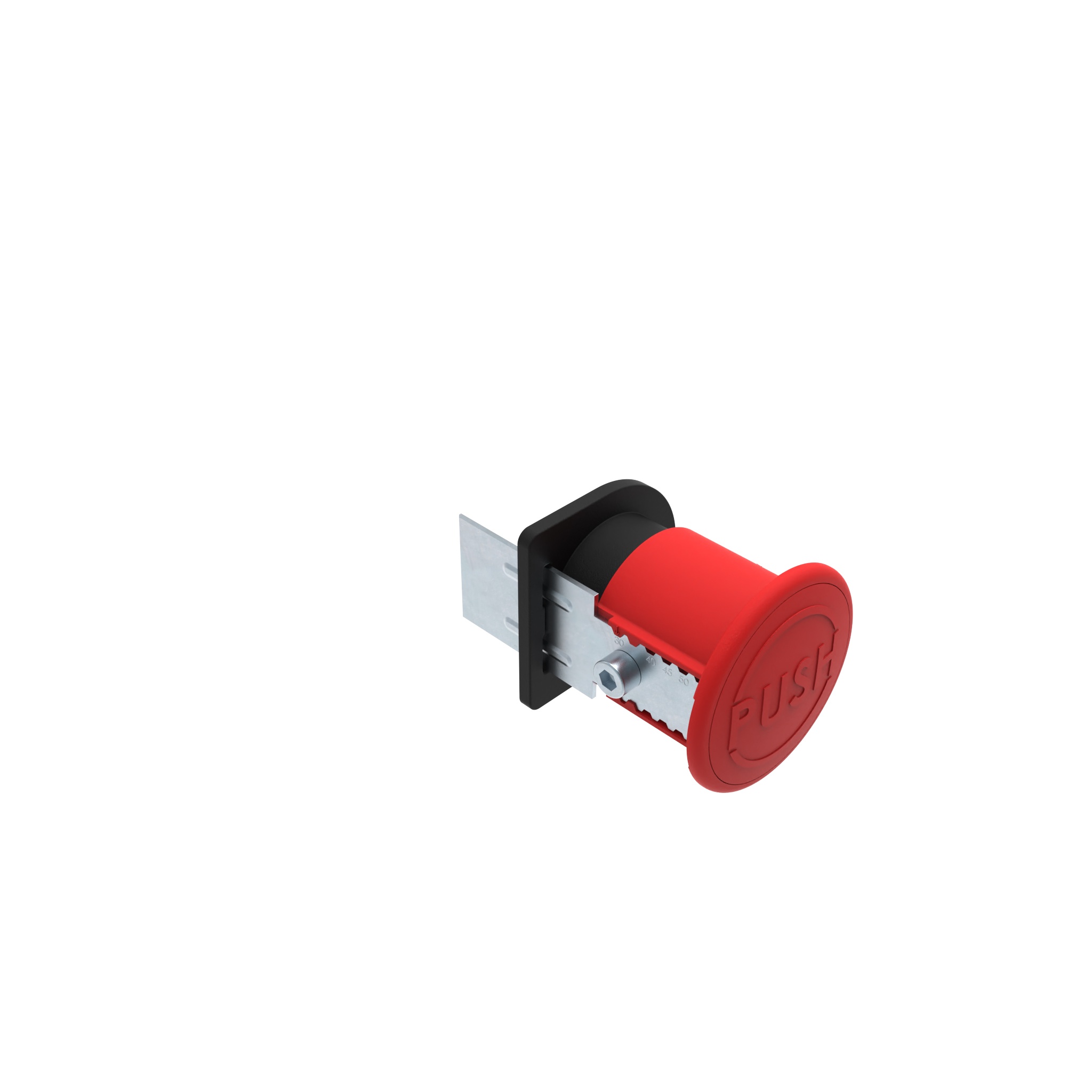

0957409S02 30 30-50 Without safety catch
0957409S03 60-80 With safety catch
