End Cap XL for Parking Rail Flat - High (Set)

Product information "End Cap XL for Parking Rail Flat - High (Set)"

Color:
End caps: Black
Position markings: Yellow ≈ RAL 1003

Delivery Countries:
Worldwide

Description:
One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive;

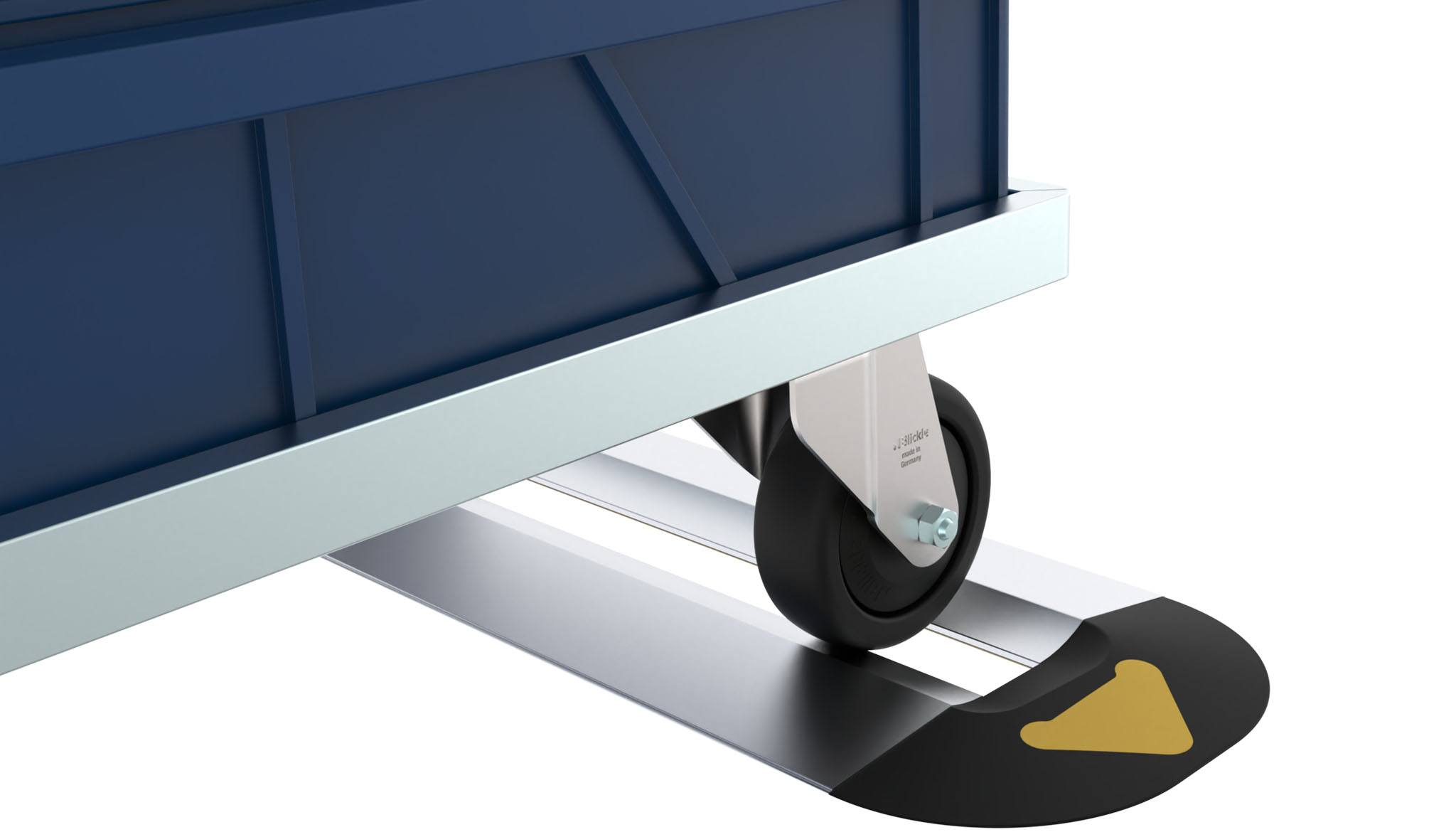

Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail

Material:
End caps: Plastic PA, glass ball reinforced
Position markings: Plastic PET

Set:
1 XL end cap left,
1 XL end cap right,
2 position markings

Tip:
Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400,
Compatible Position Marking as replacement see 02084S.15

Zolltarifnummer:
39269097900
(ECLASS 6.0): 21070390
(ECLASS 7.0): 21070390
(ECLASS 8.0): 21070390
(ECLASS 9.0): 21070390
(ECLASS 10.0): 21070390
(ECLASS 11.0): 21070491
(ECLASS 12.0): 21070491
(ECLASS 13.0): 21070491
Fastening: Self-adhesive surface on the backside
Model: XL version, for wheel diameter > 100 mm
Pack Quantity: 1 set
Weight (g): 100.0

Variants

Product ID for Wheel Diameter
02084LHXLS01 > 100 mm
